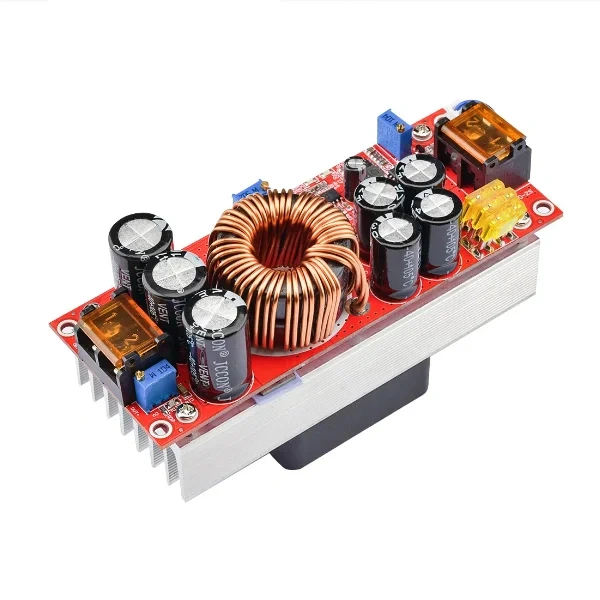

Module Model: SZ-BT07CCCV-S
Module Name: 1500W Boost Constant Current Module
Module nature: non-isolated boost module (BOOST)
Input voltage:DC10-60V
Input current: 10-30V input voltage, large current 30A
31-60V input voltage, large current 25A
Static working current: 15mA (12V to 20V, the higher the output voltage, the higher the static current will increase)
Output voltage: 12-90V continuously adjustable
12-90V fixed output (for batch customers)
Output current: 20A MAX More than 15A, please strengthen the heat dissipation (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)
Constant current range: 0.8-20A (+/-0.3A)
Input anti-reverse: Yes (150A power MOS anti-reverse)
Low battery protection: Yes (8-50V adjustable) self-recovery type

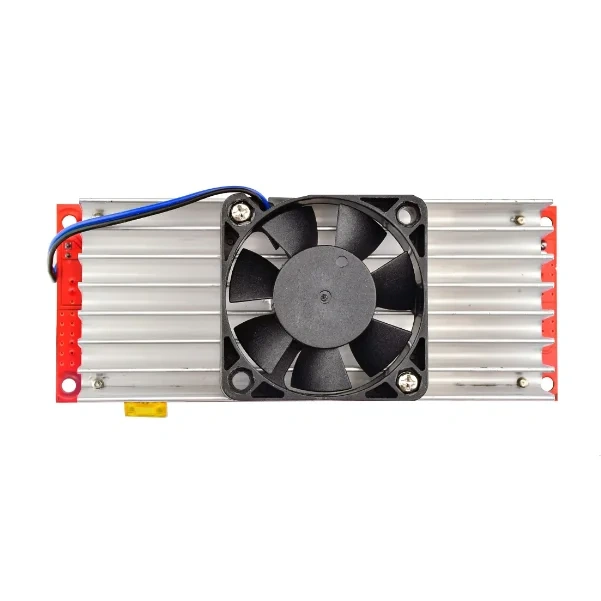

Operating temperature: -40 ~ +85 degrees (ambient temperature is too high, please strengthen the heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: 92%-97% (efficiency and input and output voltage, current, differential pressure related. (The efficiency is related to the input and output voltage, current and pressure difference.)
Input overcurrent protection: Yes (input more than 35A, automatic protection, power supply does not boost)
Short-circuit protection: Yes (input 30A fuse) Double short-circuit protection, safer to use.
Input reverse protection: Yes (150A power MOS tube anti-reverse. Can be reversed for a long time)

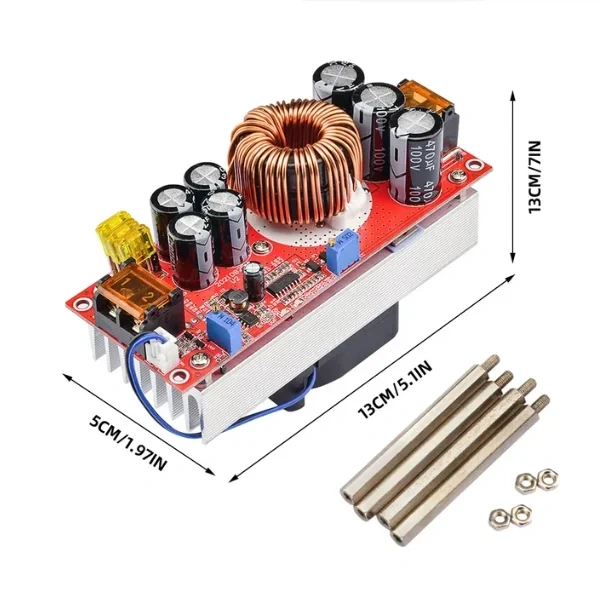

Installation: four 3mm copper columns
Wiring: terminal (please use high-current pure copper wire)
Output power: = input voltage * 30A, such as: input 12V * 30A = 360W Input 12V when the high power is 360W
Input voltage * 30A, such as: input 24V * 30A = 720W, i.e.: input 24V when the high power is 720W
Power Description:
As the power supply 10-30V when the input current is 30A, 31-60V when the input current is 25A, the output power is related to the input voltage. The higher the input voltage, the higher the power.
(Input voltage * input current is equal to the power of the whole machine) For example, input 12V * 30A power is 360W . Input 24V*30A is 720W. Input voltage is 36V input current is 25A power supply power is 900W.
