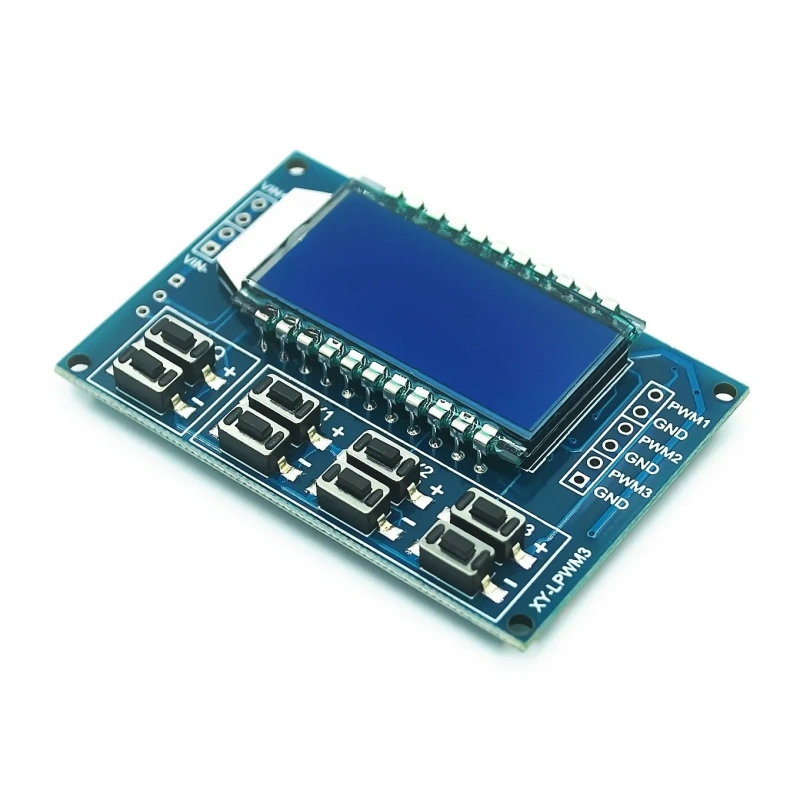

Name: 3 channel PWM pulse frequency duty cycle adjustable module square wave rectangular wave signal generator
Brand: MY SHOP
SKU: ELZ1154
Price: 1.26 USD
Availability: InStock

SKU: ELZ1154

0.0 (0)

0 Sold

$1.26 ~~$0.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

1.Operating voltage: 3.3~30V
2. Frequency range: 1Hz~150KHz
3. Frequency accuracy: In each range of accuracy is about 2%
4. Signal load capacity: Output current can be around 5~30ma
5. Output amplitude: PWM amplitude and supply voltage equal

6. Ambient temperature: -20~+70 Celsius

7.Size:54.6*37mm

Scope of application:
1.Used as a square wave signal generator to generate square wave signals for experimental development
2.Used to generate square wave signals that control motor drives
3.Generate adjustable pulse for MCU use
4.Generate adjustable pulses,control related circuits(PWM dimming speed regulation and other applications
