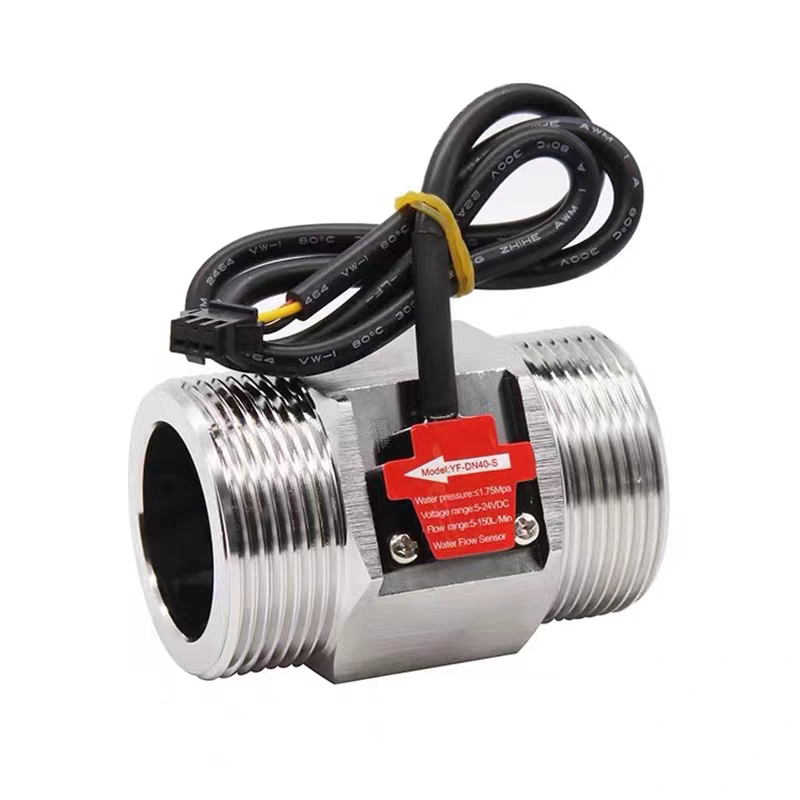

304 Stainless Steel DN40 50 Hall Water Flow Sensor

[operating voltage] 5-18V

[pressure range] < 1.75MPA
[insulation resistance] > 100MQ
[material] 304 stainless steel + POM
[output pulse duty cycle] 50% + 10%
[output pulse high level] > DC4.7V (input voltage DC5V)

[output pulse low level] 1 < DC0.5V (input voltage DC5V)

Module: YF-DN50-S

Size: 75MM "60MM
Interface size: 2 inches
Flow range：10-300L/MIN

Pulse characteristics: (0.2 Q) Q=L/MIN ±3%

accuracy: (10-300L/MIN) ±5%

Product model: YF-DN40-S

Product size: 75MM*48MM
Interface size: 1.5 inches
Traffic range: 2-150L/MIN
Pulse characteristics: (0.45 Q) Q=L/MIN ±3% accuracy: (2-150L/MIN) ±5%
