Description
Product Parameters:
AC 24V 7A
DC 24V 10A
Aperture:3.15mm
Wide hole spacing:19mm
Long hole spacing:42mm
PCB board size:50mm*26mm*1.6mm
Finished product size:50mm*26mm*17mm

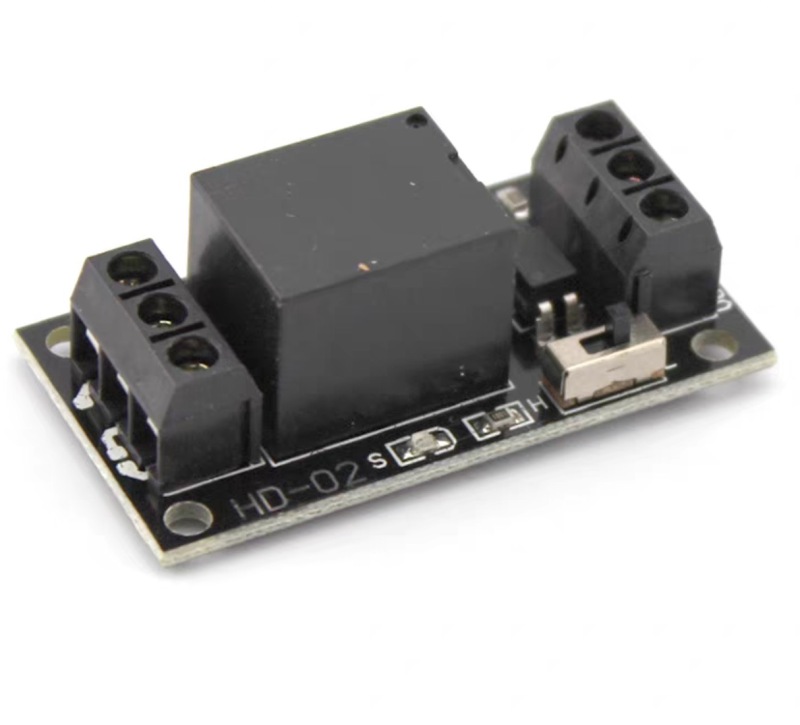

Product Introduction:
Used for DIY technology small craft materials, through low-power controllers such as microcontrollers and sensors Output high-level or low-level control relays to engage and release, thereby achieving the function of a switch. With power indicator light (red) and switch indicator light (green)
Wiring method:The power supply cannot be reversed, as it may burn out the module

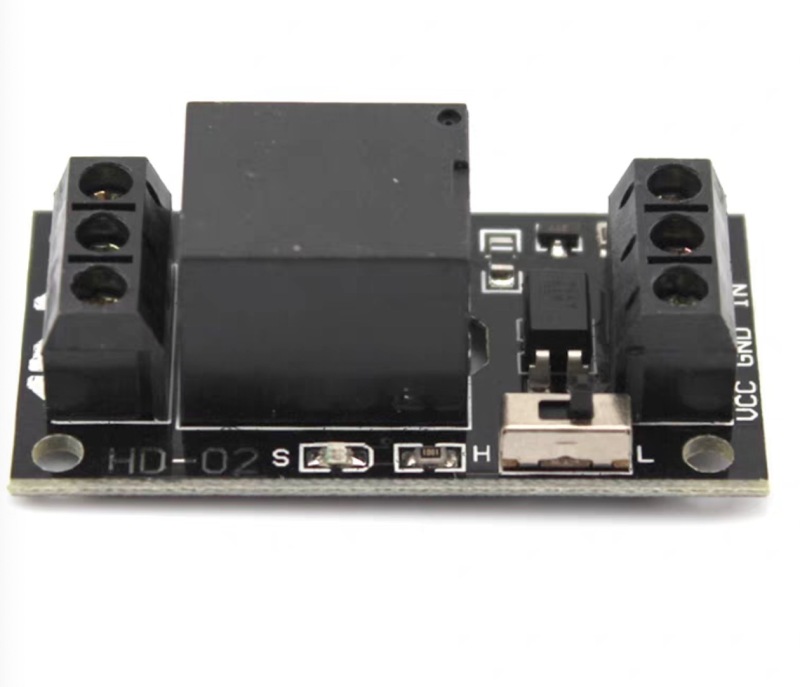

Control circuit wiring:
VCC connected to DC3.3V positive pole or 3V
GND Connected to DC3.3V negative pole or 3V
IN Control terminal 3V
Controlled circuit wiring: The middle is the common terminal that must be connected, and both ends choose a wiring according to the required function
