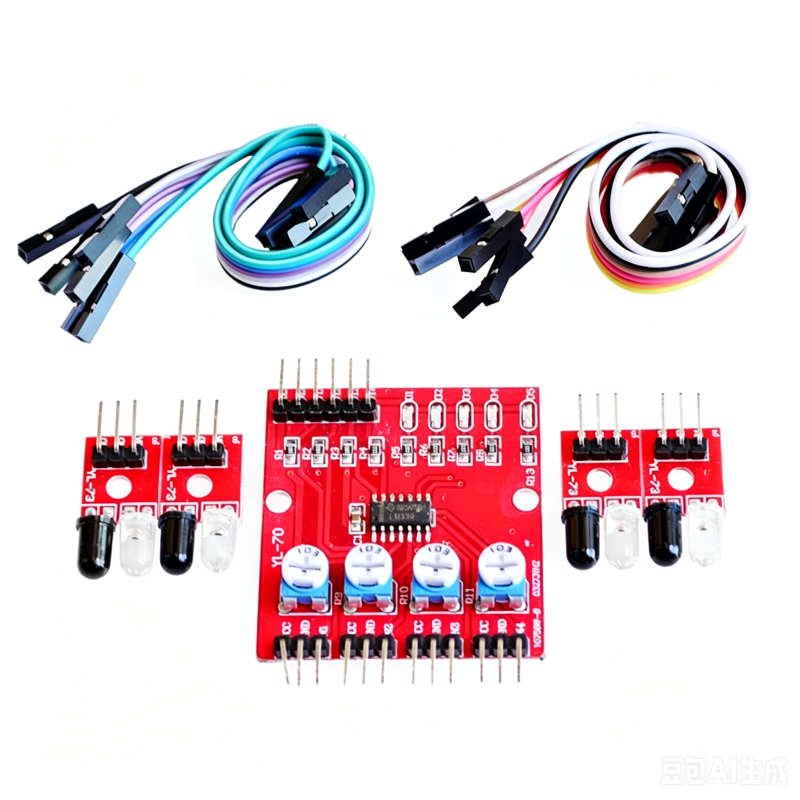

4 Way Infrared Detection Tracking Photoelectric Sensor

Working voltage: DC 3.3V-5V
Working current: try to choose more than 1A power supply
Working temperature: - 10oC - +50oC
Mounting aperture: M3 screws
Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.

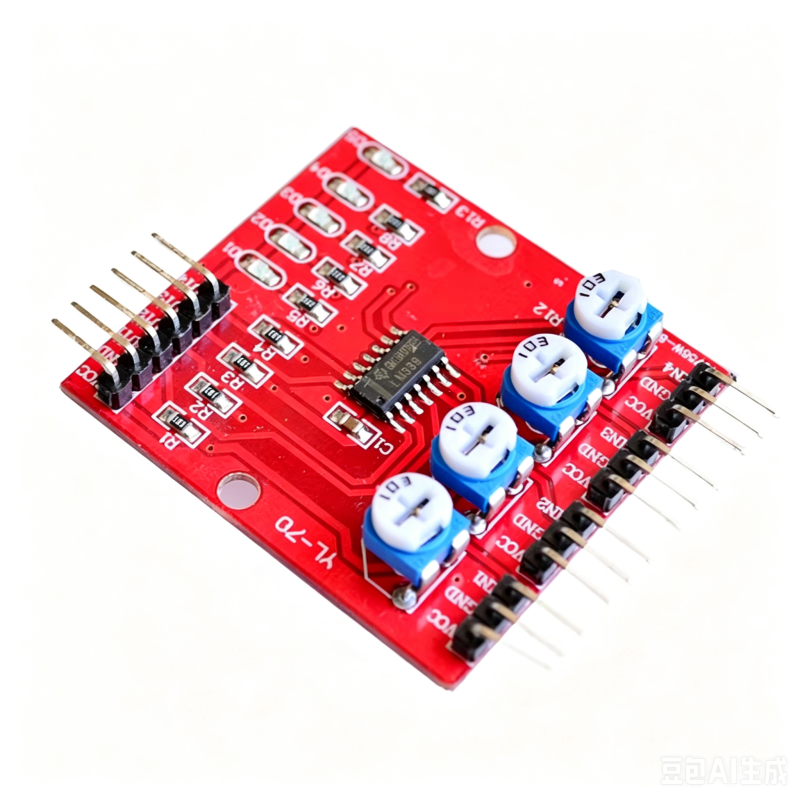

Size: Control board 42* 38* 12mm

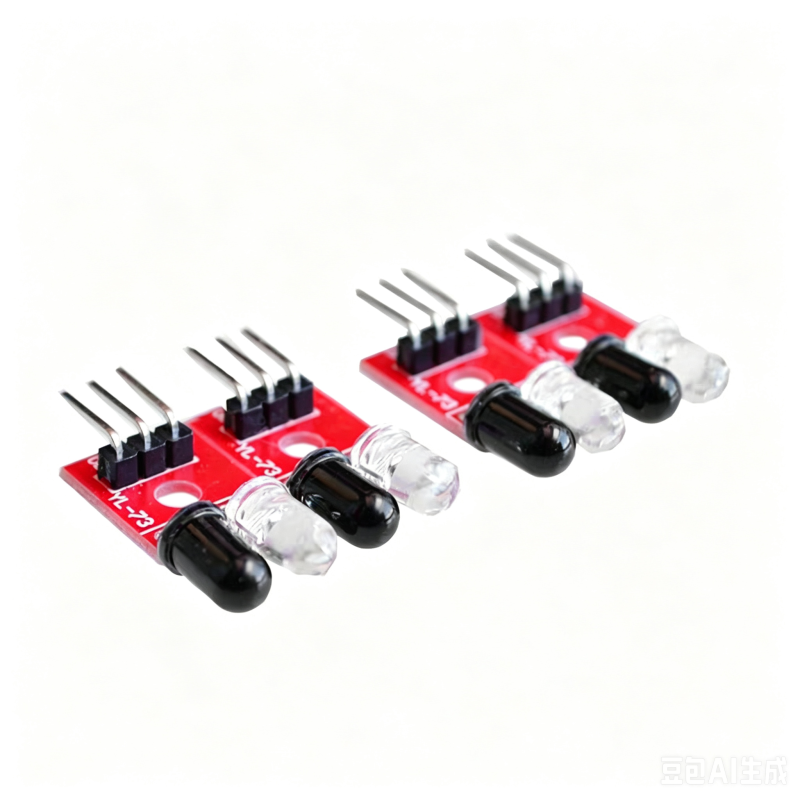

Small board 25* 12* 12mm

Scope of application:

1.Intelligent car or robot hunting(including black line and white line),walking along the black line path,also known as tracing trace
2.The intelligent car avoids the cliff and prevents falling
3.Smart car to avoid obstacles
