Description

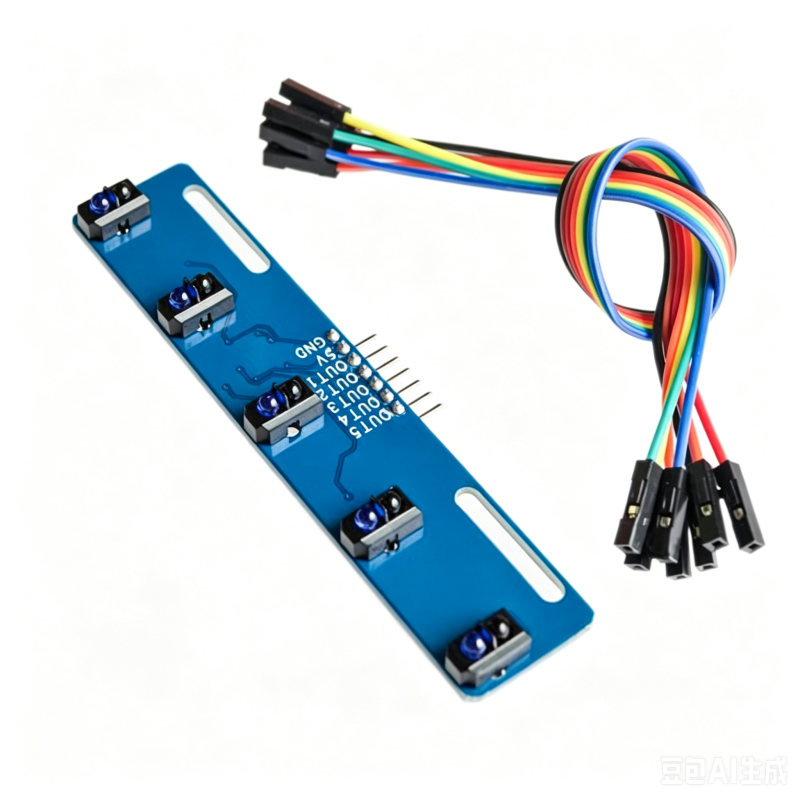

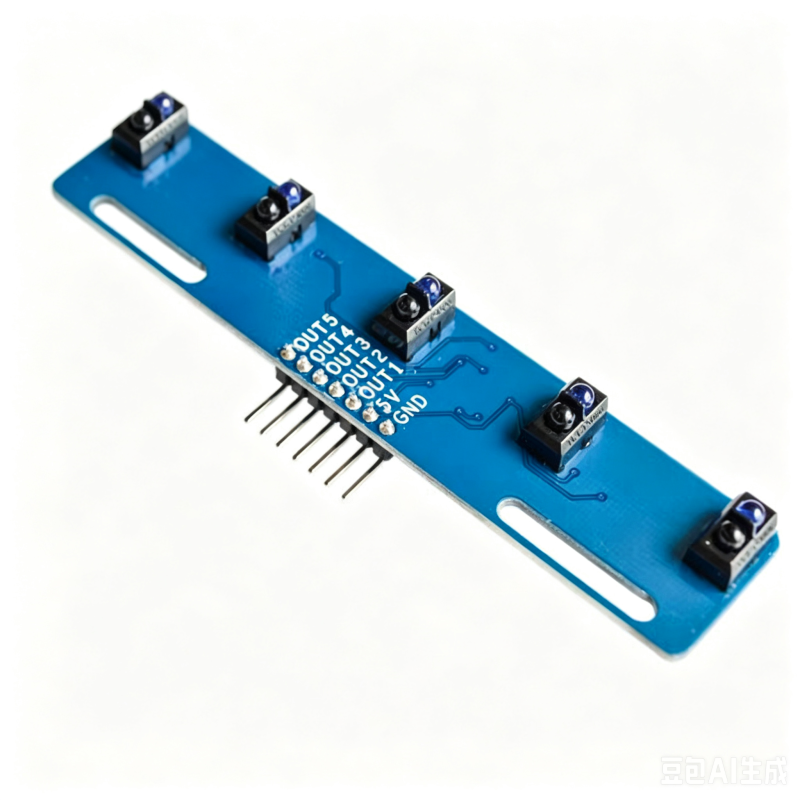

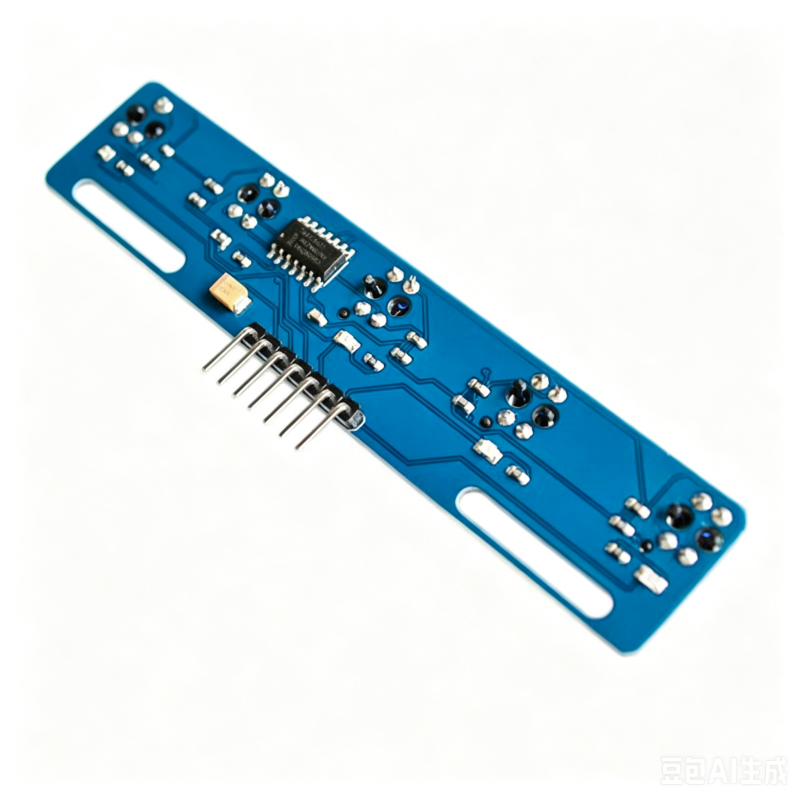

1.Applicable to a variety of platforms including for Arduino /AVR/ARM/PIC
2.The module is a convenient carrier for eight IR emitter and receiver pairs evenly paced.
3.Distance between each IR Sensor: 15MM
4.Uses 5 sensors for best resolution
5.Great useful in building fast line following and grid navigating robots
6.Comes with easy to use digital outputs with a direct connection to micro controllers
7.The array has mounting holes of 3mm diameter for easy mounting
8.Status LED on each sensor for the detection of black line
9.VCC: VCC is the power input port, which could access 3.3V To 5V Voltage
10.GND: GND is the negative input of the power supply
11.OUT1To 5: OUT is the signal output port, MCU link I / O port
