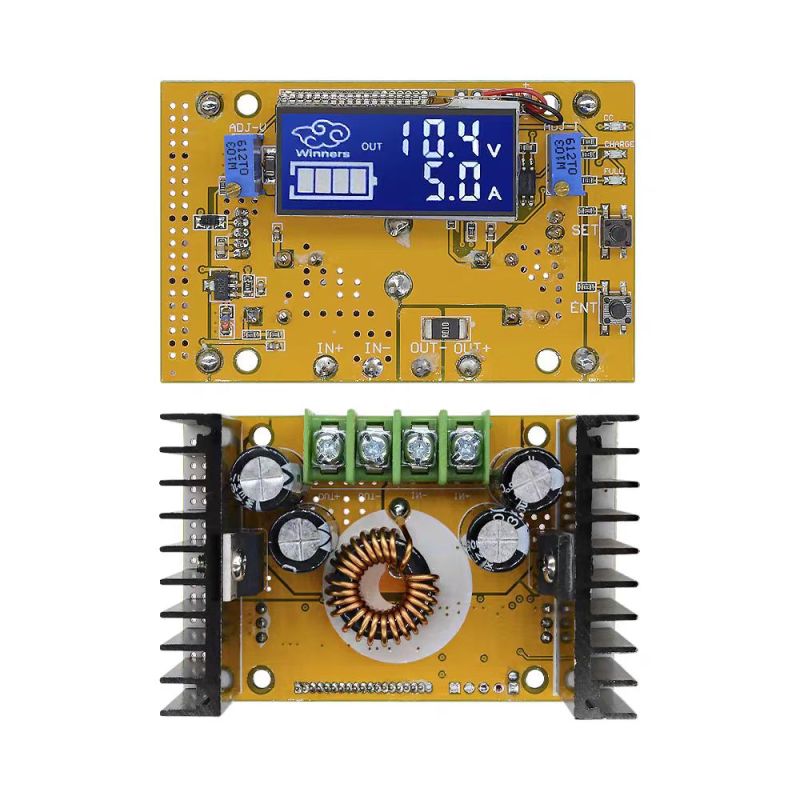

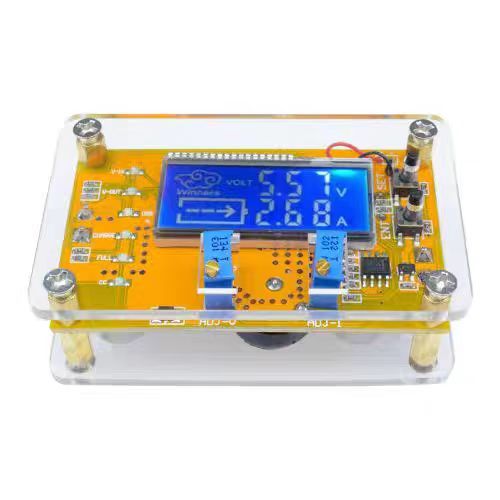

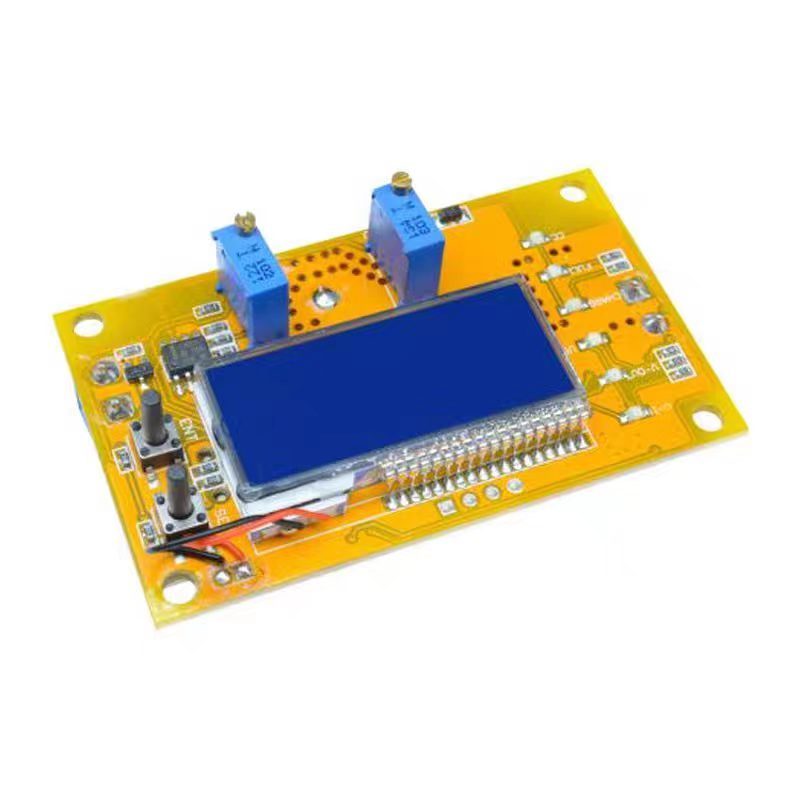

5A Module
Input voltage:5V -36V
Output voltage:1.25-32V adjustable (input voltage must be greater than output voltage 1.5V)
Output current:5A maximum adjustable (3A or above requires enhanced heat dissipation, approximately constant current requires an input voltage of 2V or above)
Output power:maximum 75W
Working temperature:-20~+70 ℃
Operating frequency:180 kHz
Short circuit protection:Yes
Over temperature protection:Yes
Input reverse connection protection:No (the input end needs to be connected in series with a diode)
10A Module
Input voltage:7V -40V
Output voltage:1.5-35V continuously adjustable (can only be used for voltage reduction modules, input must be greater than output by more than 1.5V)
Output current:adjustable, maximum 10A (recommended for 8A use)
Output power:maximum 150 watts (recommended for use within 100 watts, please reduce power when the pressure difference is large)
Working temperature:-20~+75 ℃
Operating frequency:300 kHz
Conversion efficiency:up to 95%
Short circuit protection:Yes
Input reverse connection protection:No
Output backflow prevention:No
Installation method:8pc 3mm screws
Connection method:terminal or welding terminal, input as VIN, output as VOUT
