Your position: Home > Sensors > Current > 5A AC Current Sensor Module

1/1

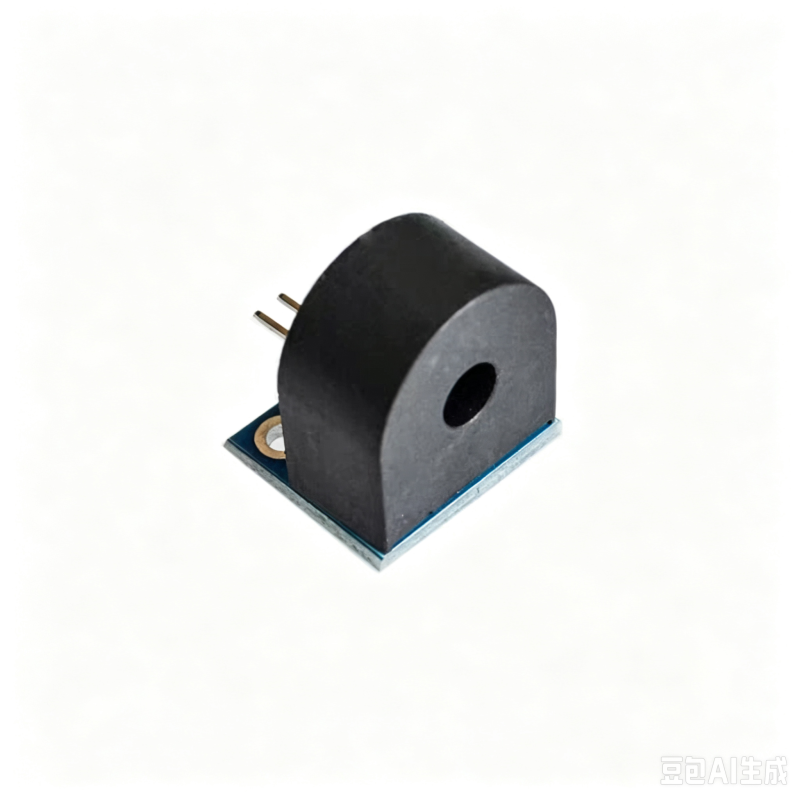

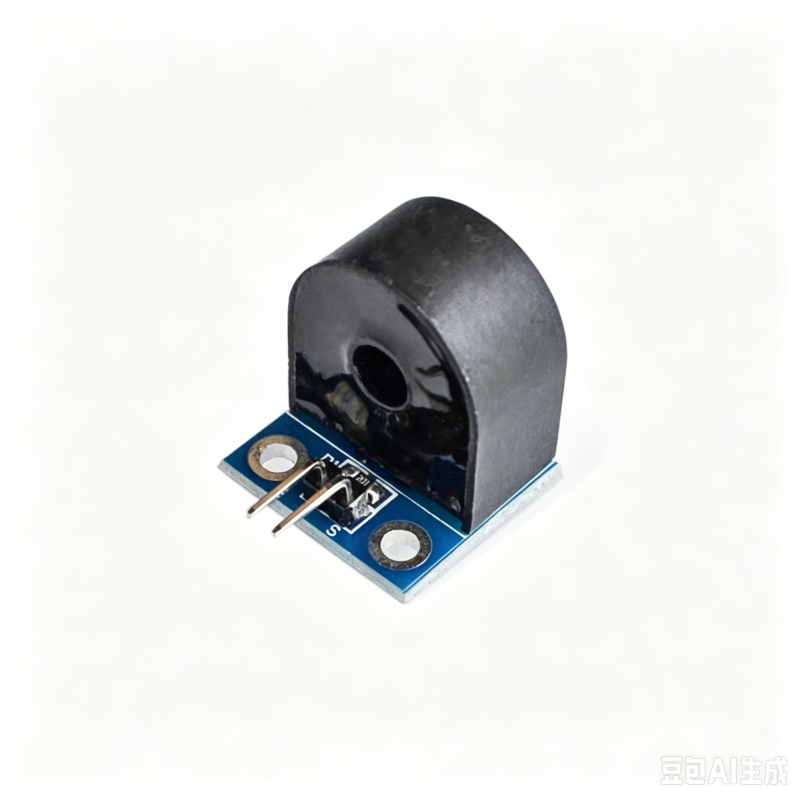

5A AC Current Sensor Module

Name: 5A AC Current Sensor Module
Brand: MY SHOP
SKU: ELY2287
Price: 0.37 USD
Availability: InStock

SKU: ELY2287

0.0 (0)

0 Sold

$0.37

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

On-board micro precision current transformer
Onboard sampling strength
The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA
Rated Input Current: 5A
Rated output current: 5mA
PCB size: 18.3 x17 (mm)
Change: 1000: 1
Linear range: 0 ~ 10A (100 ohms)
Linearity: 0.2%
Precision: 0.2
Uses Insulation Voltage: 3000 V Measure
Sealing material: epoxy resin
Operating temperature: -40 °~ + 70 °
