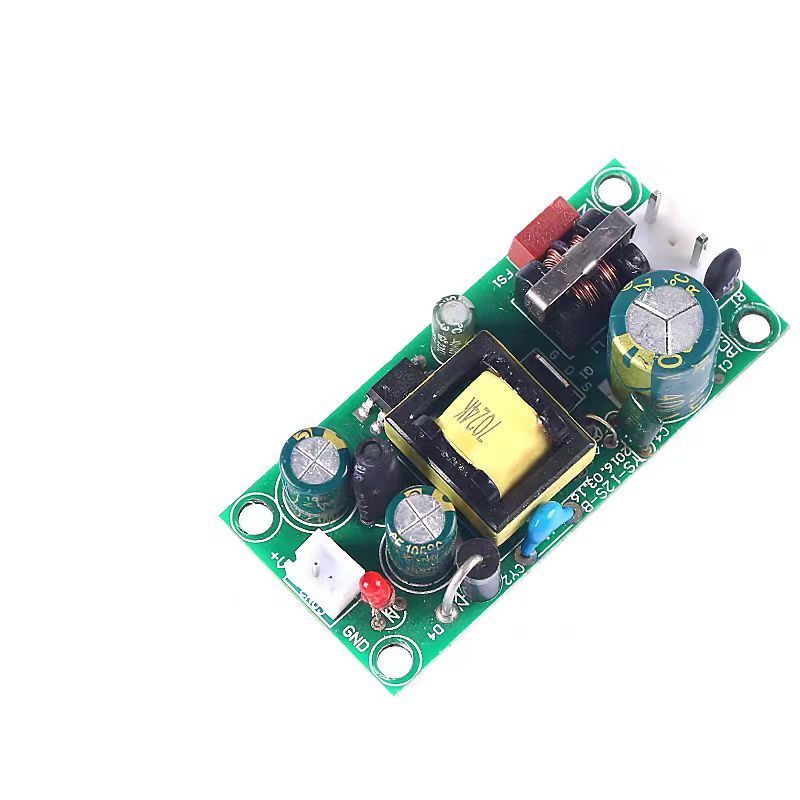

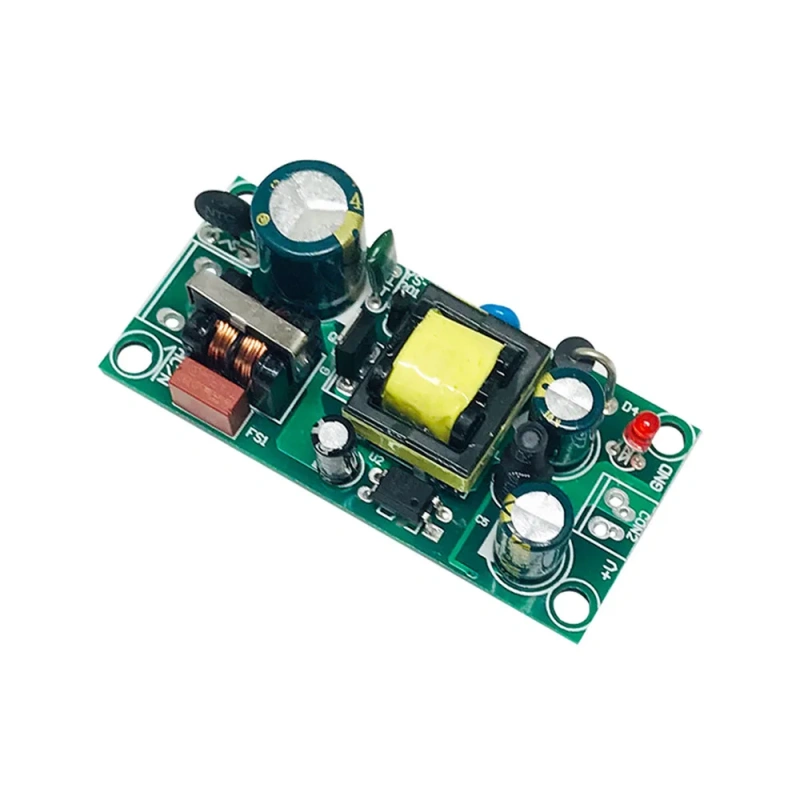

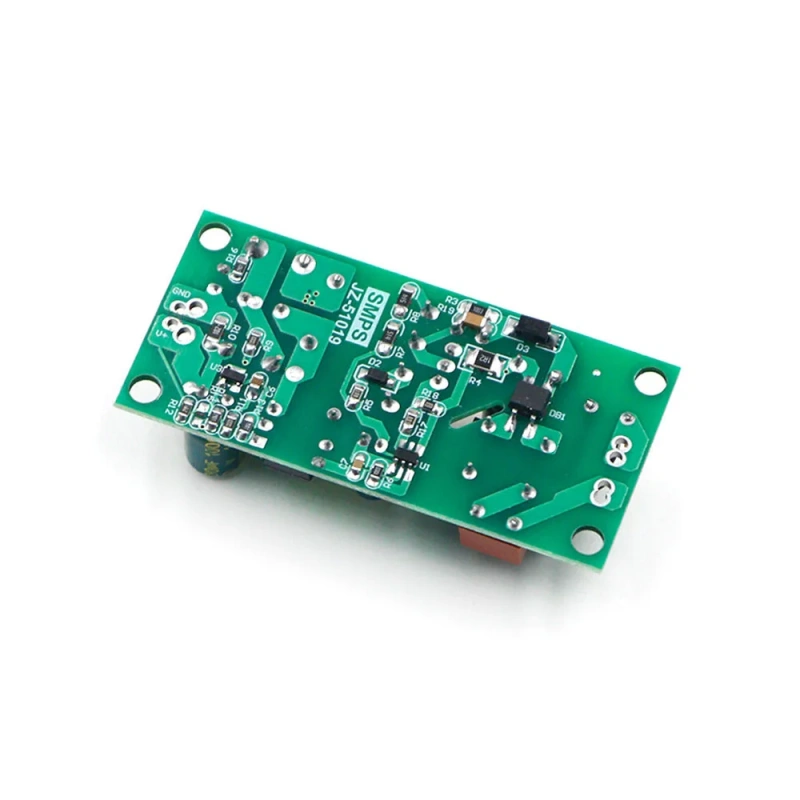

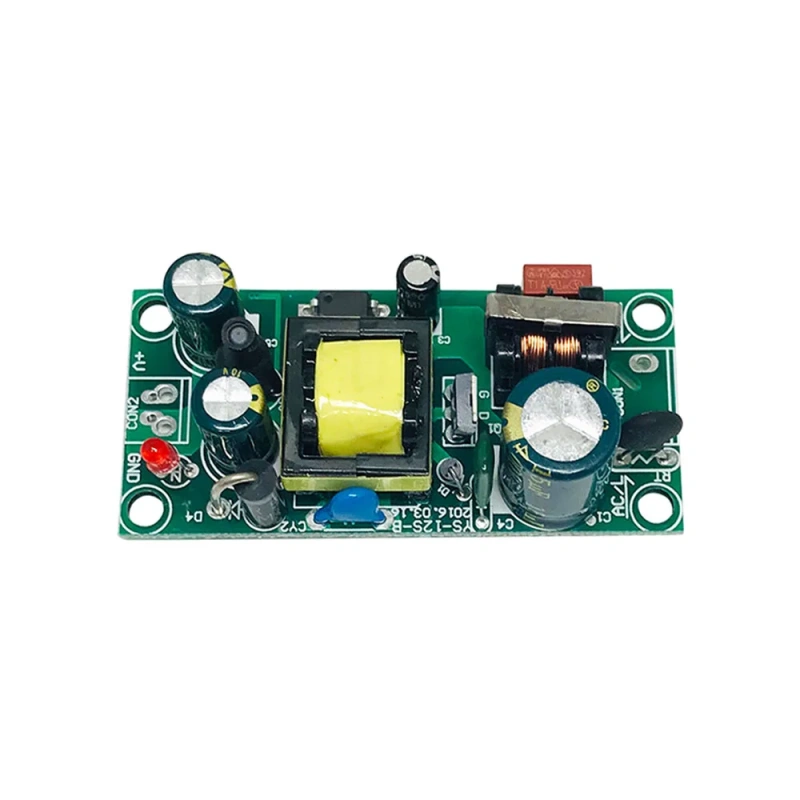

5V 2A Isolated Power 220V to 5V Switch Low Ripple Step Down Converter Bare Circuit Board AC-DC Switching Power Supply Module

Specifications:

Input voltage:AC85~265v 50 / 60HZ or DC100v-370v

Output voltage:DC5V (±0.2V)

Output current:2000mA

Power:10W

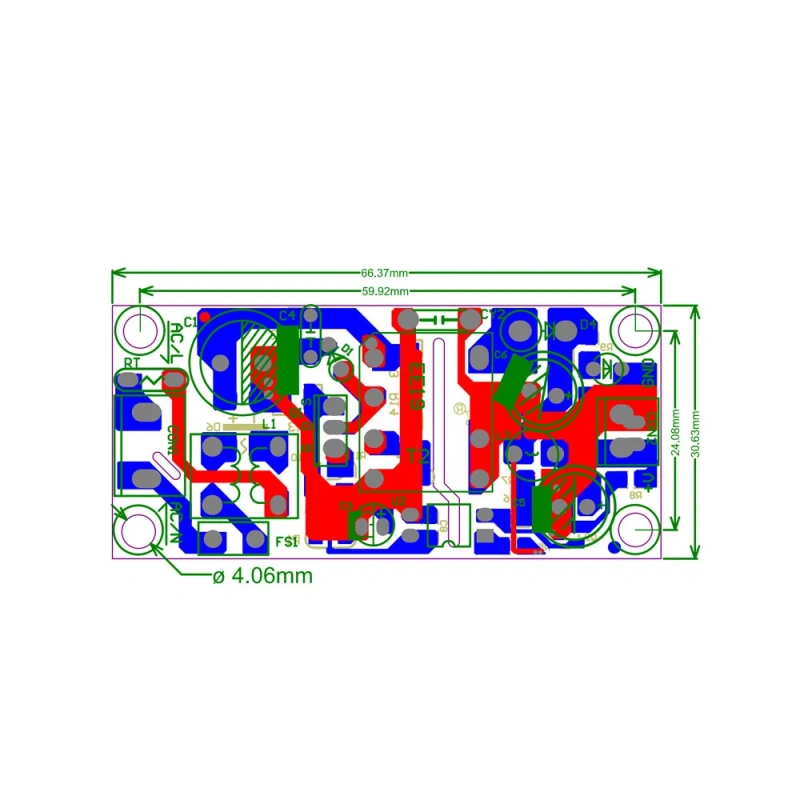

PCB size:6.6*3.0*2.0cm

Working temperature: -20 to 60 Centigrade

Relative humidity: 40 to 90% RH

Input characteristics:

1. Input voltage range: 85VAC-265VAC/100VDC-370VDC

2. Input Current: 0.0273 (AC110V) 0.014 (AC220V)

3. Input surge current: 20A (full load)

Output Characteristics:

1. Output voltage range: 4.8~5.2V

2. Output Current Range: 0A to 2000mA, the peak current of 2200mA

3. Output power: 10w maximum 11W.

4. Output efficiency: 80%

5. Switching Overshoot: 10%

6. Output Rise Time: 100ms

Protection:

1. Output Over Power protection: YES.  Recovery characteristics: lock, after re-starting recovery

2. Short circuit protection: YES.  Recovery characteristics: lock, after re-starting recovery

3. Temperature protection: YES.  Recovery characteristics: lock, after re-starting recovery

4. Overcurrent protection: YES. Recovery features: lock, after re-starting recovery

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3cm differences due to manual measurement.
