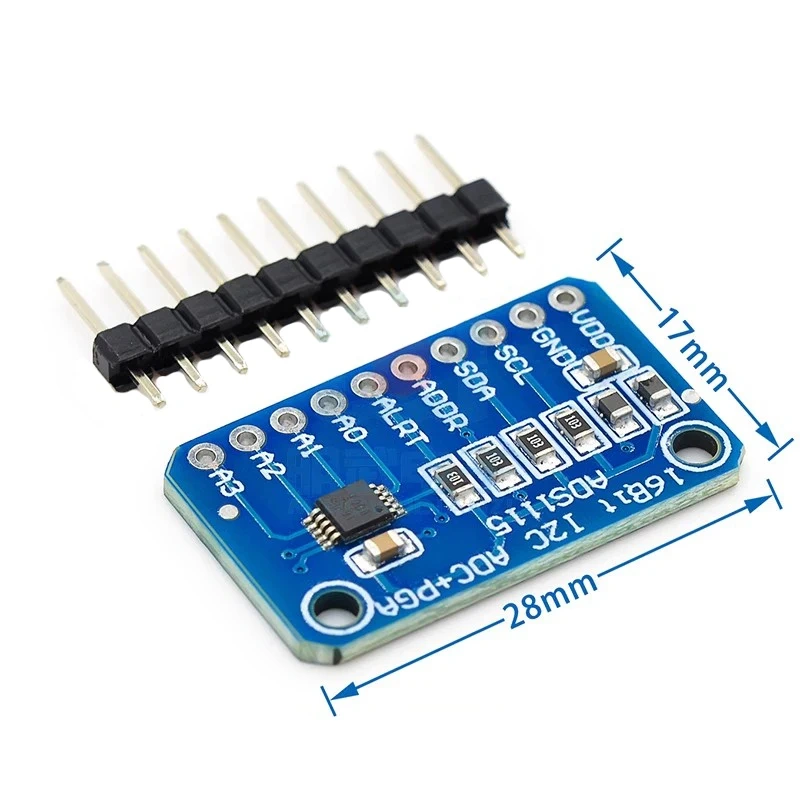

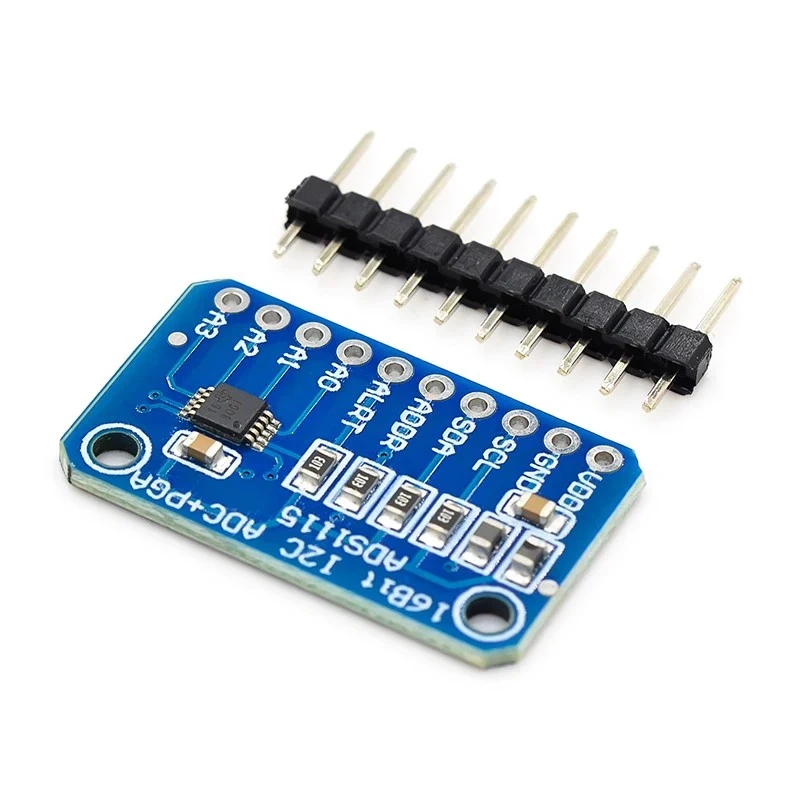

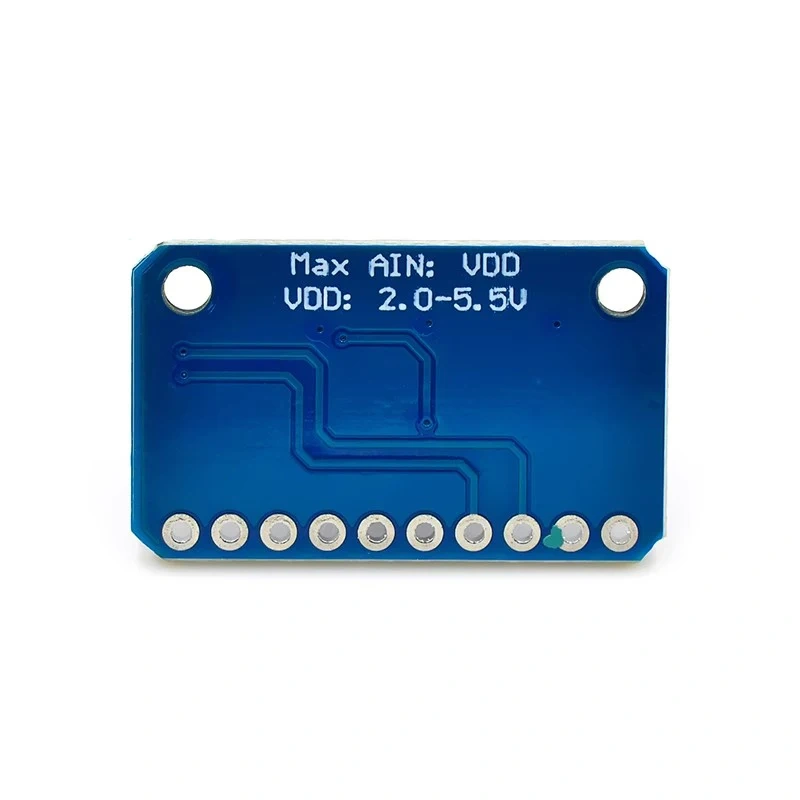

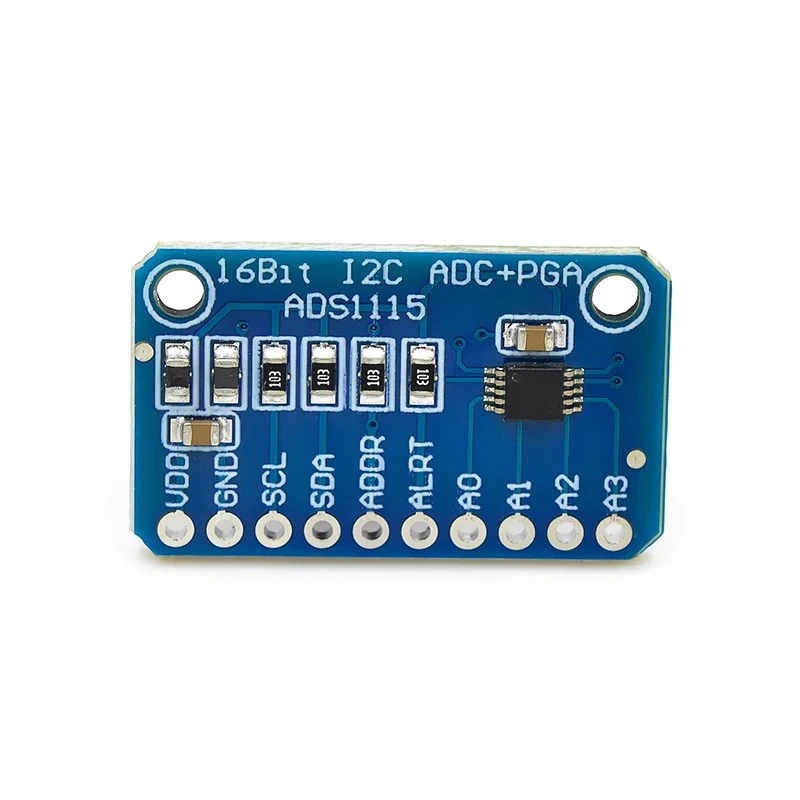

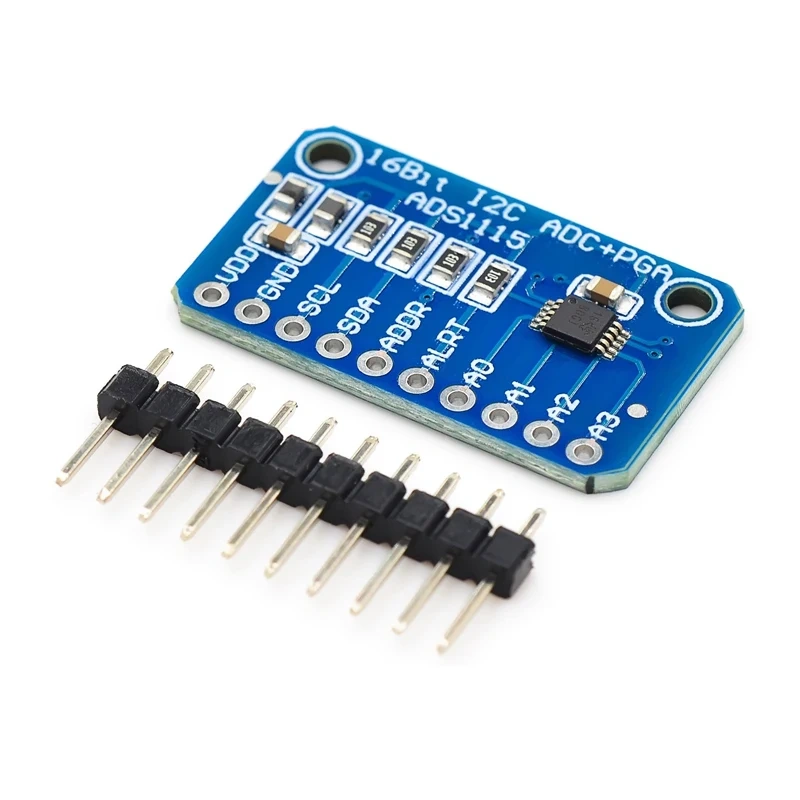

ADS1115 Subminiature 16 Bit Precision Analog-to-Digital Converter ADC Development Board Module

ADS1115 ADC Development Board Module

FEATURES DESCRIPTION:

• ULTRA-SMALL QFN PACKAGE: The ADS1113, ADS1114, and ADS1115 are2mm × 1,5mm × 0,4mm precision analog-to-digital converters (ADCs) with 16

• WIDE SUPPLY RANGE: 2.0V to 5.5V bits of resolution offered in an ultra-small, leadless

• LOW CURRENT CONSUMPTION: QFN-10 package or an MSOP-10 package. The ADS1113/4/5 are designed with precision, power, and

Continuous Mode: Only 150μA ease of implementation in mind. The ADS1113/4/5

Single-Shot Mode: Auto Shut-Down feature an onboard reference and oscillator. Data are

• PROGRAMMABLE DATA RATE: transferred via an I2C-compatible serial interface; four

8SPS to 860SPS I2C slave addresses can be selected. The

• INTERNAL LOW-DRIFT ADS1113/4/5 operate from a single power supply

VOLTAGE REFERENCE ranging from 2.0V to 5.5V.

• INTERNAL OSCILLATOR The ADS1113/4/5 can perform conversions at rates

• INTERNAL PGA up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS
