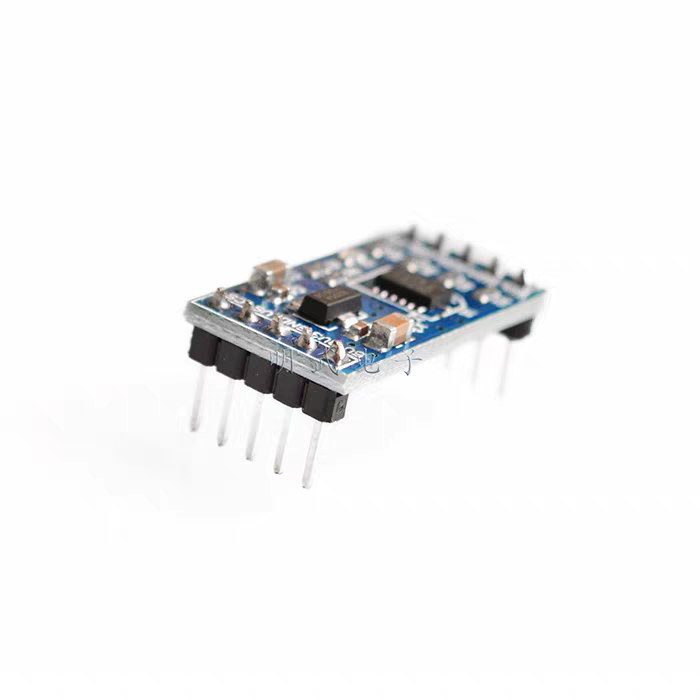

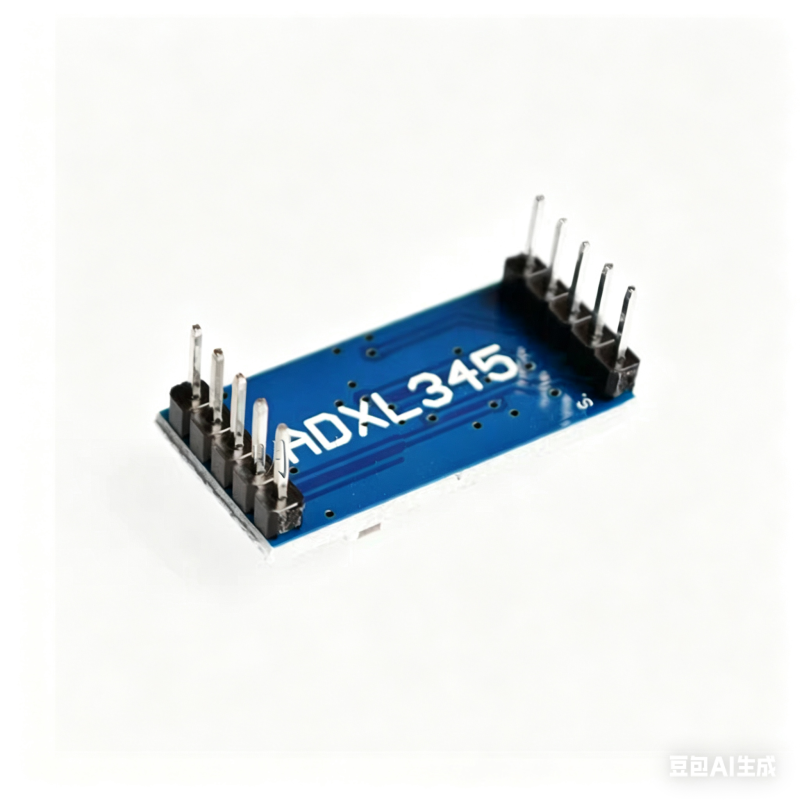

ADXL345 Digital Accelerometer Module

Working voltage:DC 3.3V/5V
Measuring range:±2/±4/±8/±16g
Chip working temperature:-40~85℃
Storage temperature:-40~105℃

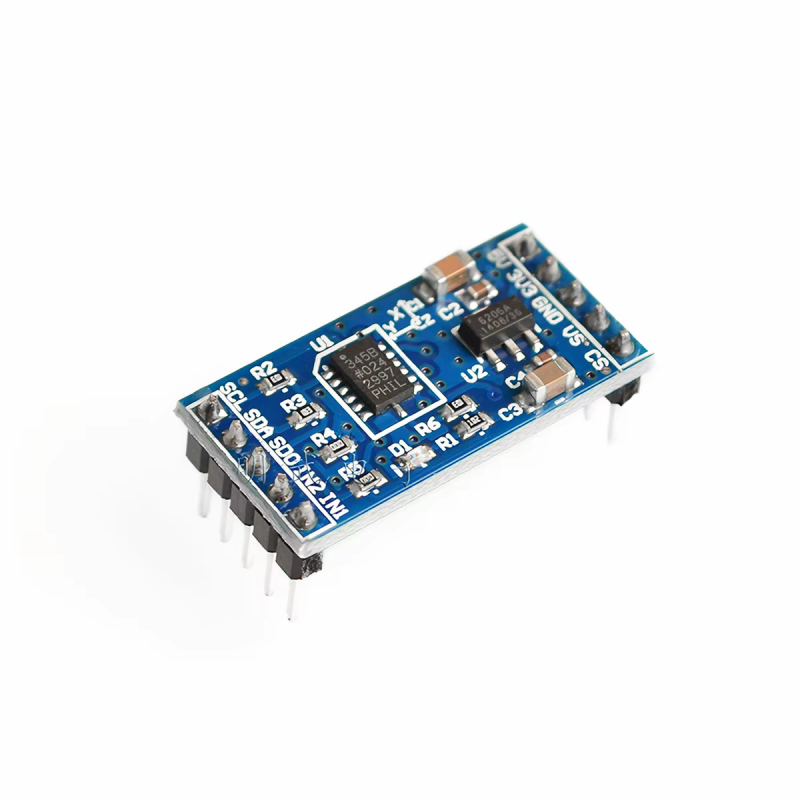

Pin definition
5V:5V power supply
3V3:3.3V power supply
GND:ground
Vs:power supply voltage
CS:slice selection
SCL:I2C Serial clock line/SPI clock terminal
SDA:serial data(I2C)/serial data input(SP14 line)/serial data input and output
SDO:serial data output(SP14 Line)/standby I2C address selection(I2C)
INT2:interrupt 2 pins
INT1:interrupt 1 pin
