Description

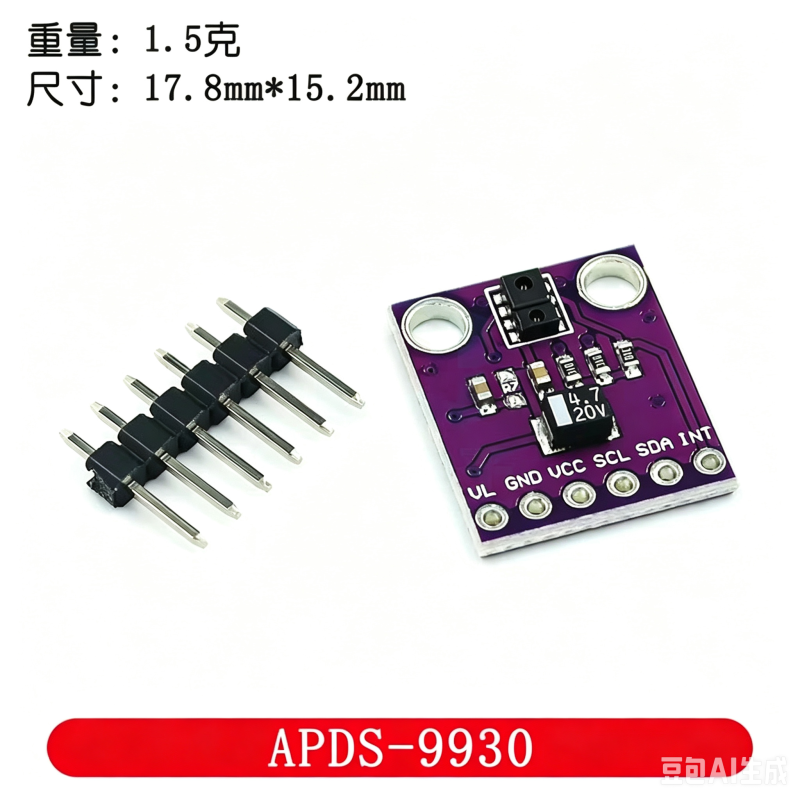

APDS-9930：
Up to 16-bit resolution
0.01lux low lumen performance
Integrated infrared LED and synchronous LED Driver
Programmable from 2.7 ms to more than 8 seconds
Sleep mode power - 2.2A typ

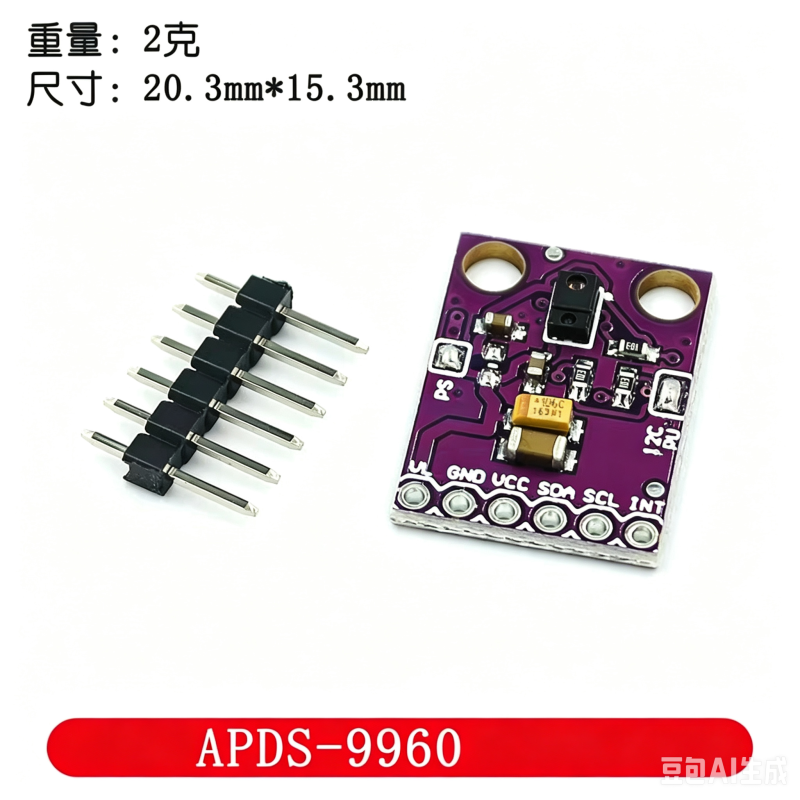

APDS-9960：
Operating voltage: 3.3V
Measuring range: 4-8 in (10-20CM)
I2C Interface

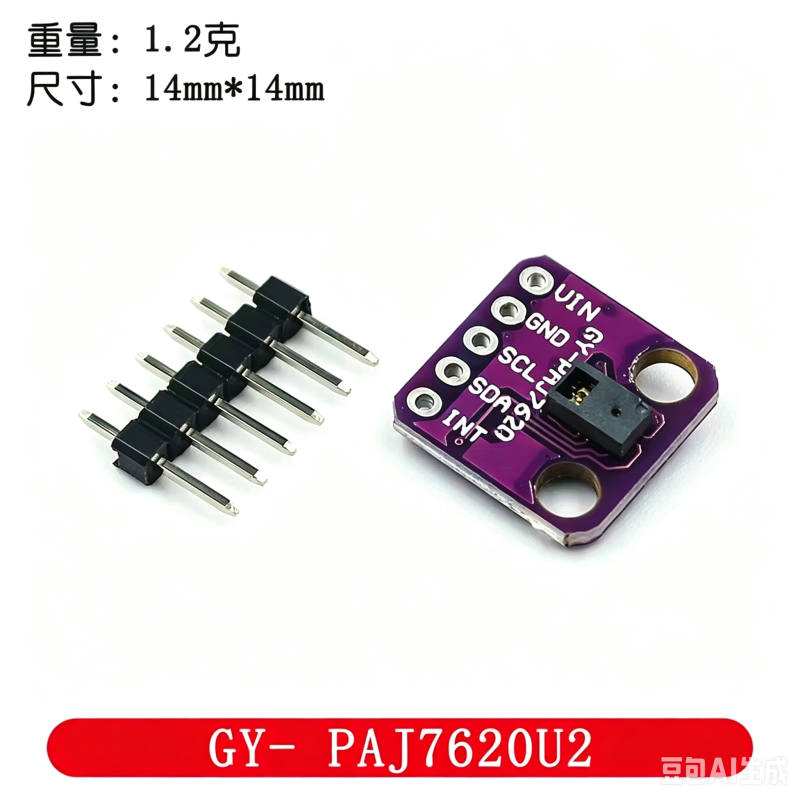

GY-PAJ7620U2：
Typical supply voltage is 2.8V to 3.3V and I/O voltage is 1.8V~3.3V
Nine gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave)
Gesture speed is 60°/s to 600°/s in Normal Mode and 60°/s to 1200°/s in Gaming Mode
Ambient light immunity: < 100k Lux
I2C interface up to 400 kbit/s, Pull-up voltage from 1.8V to 3.3V

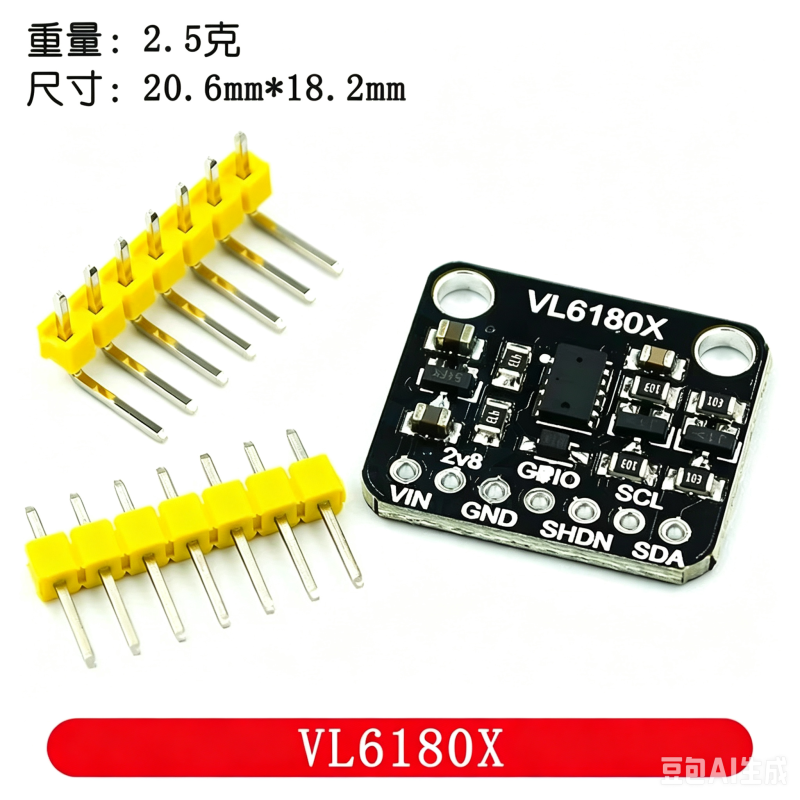

VL6180X：
Ic chip Tantalum capacitors Inductance
Crystal Capacitance Diode
Module Optocoupler Fuse
Triode Resistance LED
Programer Development system Development board

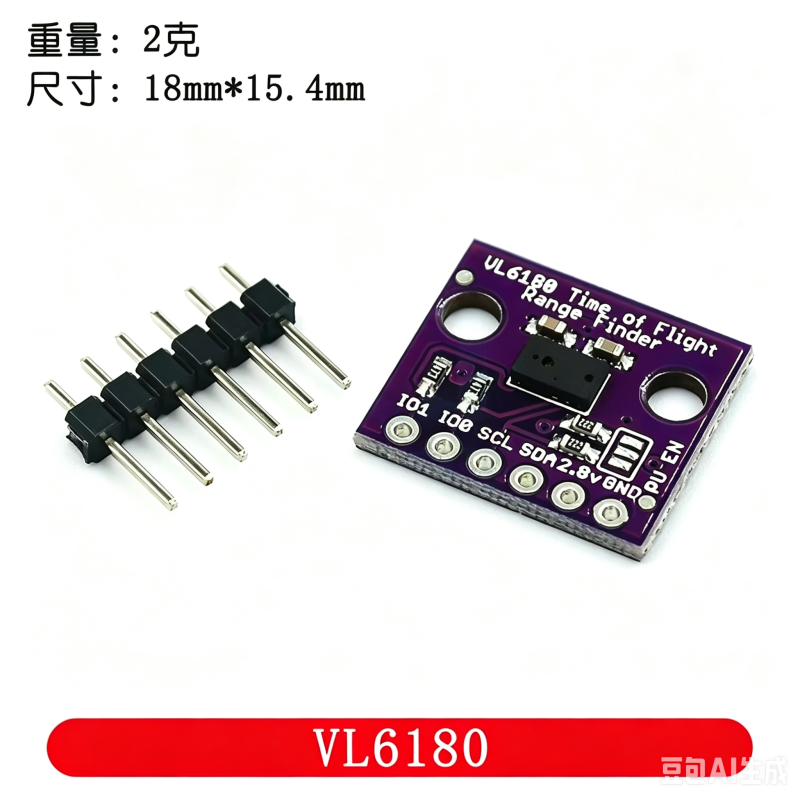

VL6180：
Infrared laser wavelength: 850nm
Communication interface: IIC (400kHz), address 0x29 (7-bit), two programmable GPIO
Optimal working temperature: -10 ~ 60 ° C
Range (close) range: 0 ~ 100mm error 13mm
APDS-9960 Red：
1.Module:NOYITO APDS-9960 Module
2.Operational Voltage: 3.3V
3.Operating Range: 4-8in (10-20cm)
