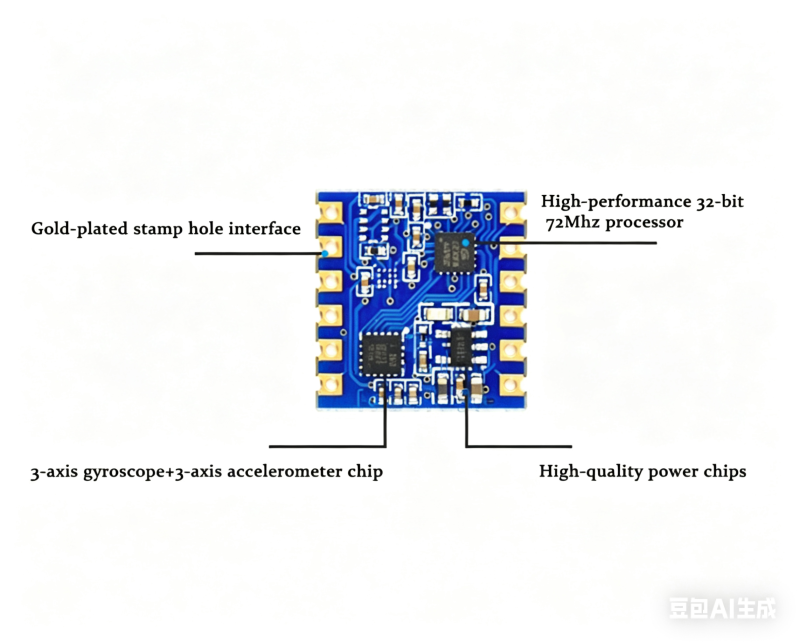

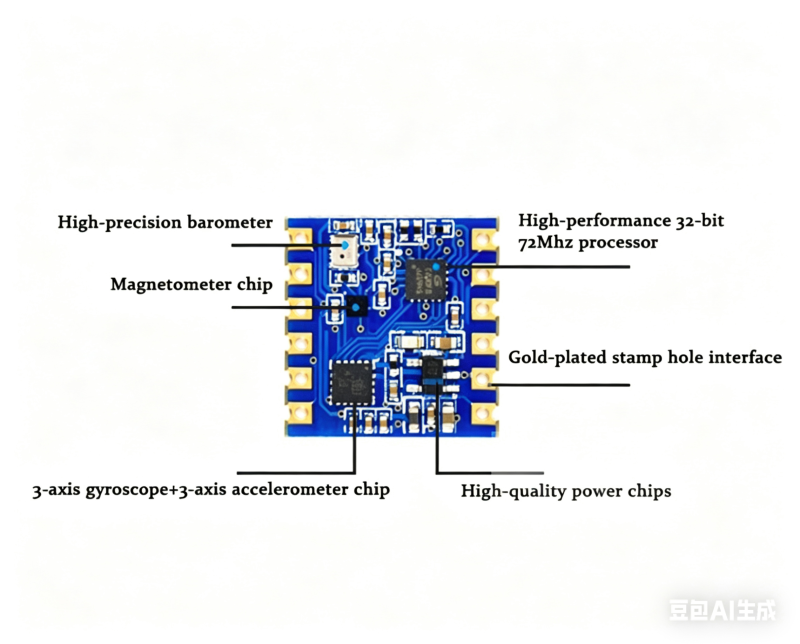

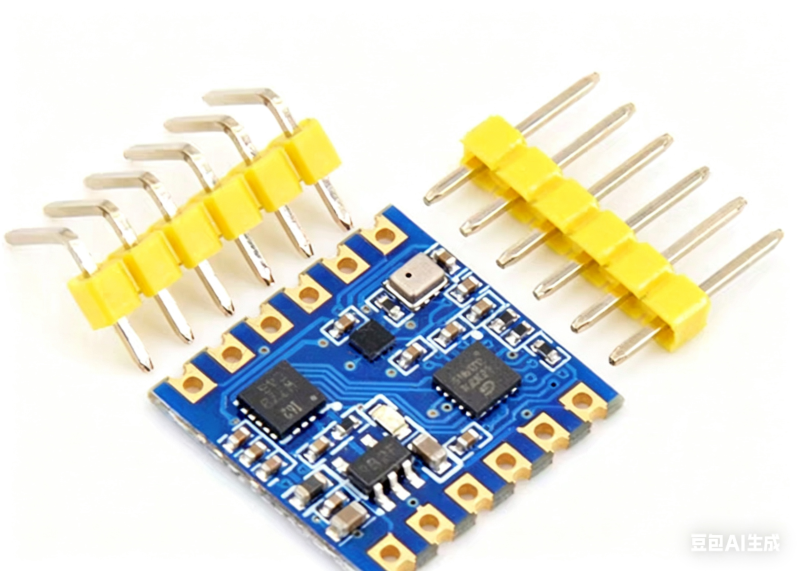

ATK-IMU901 Angle Sensor

Working voltage:3.3V-5V(5V recommended)
Operating current:<25mA
Serial port baud rate:TTL level(3.3V),2400~921600 adjustable
Angular accuracy:X,Y axis:static 0.05°,dynamic 0.1°,Z axis:0.5°
Gyroscope range:±250,±500,±1000,±2000°/s can be set
Acceleration range:±2,±4,±8,±16g can be set
Output data:acceleration,angular velocity,attitude angle,magnetic field,port status,barometric pressure,altitude
Data output rate:1~250Hz
4 Expansion Ports:analog output(0~3.3V),digital input,digital output,PWM output(D1, D3)
Size:15.57*16.2*2mm
Pad spacing:2.54mm up and down,15.57mm left and right
