Description
Input voltage: 3.0-5.5V
Tracking distance:0-3cm(black and white line sensor)
Barrier distance: 0-6 cm (distance detection adjustable)
Output form: high and low level signal
Features:

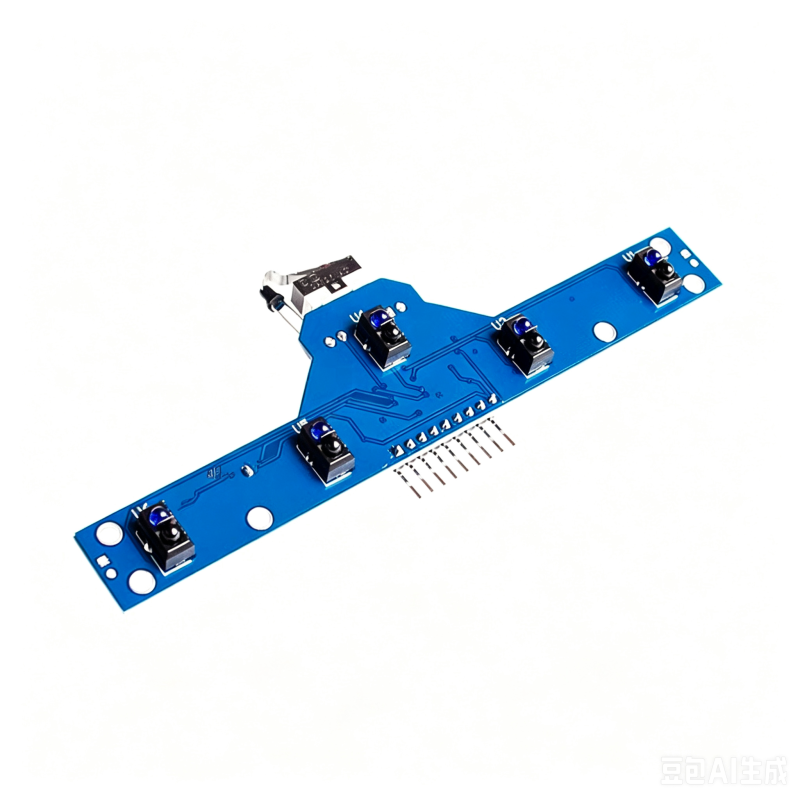

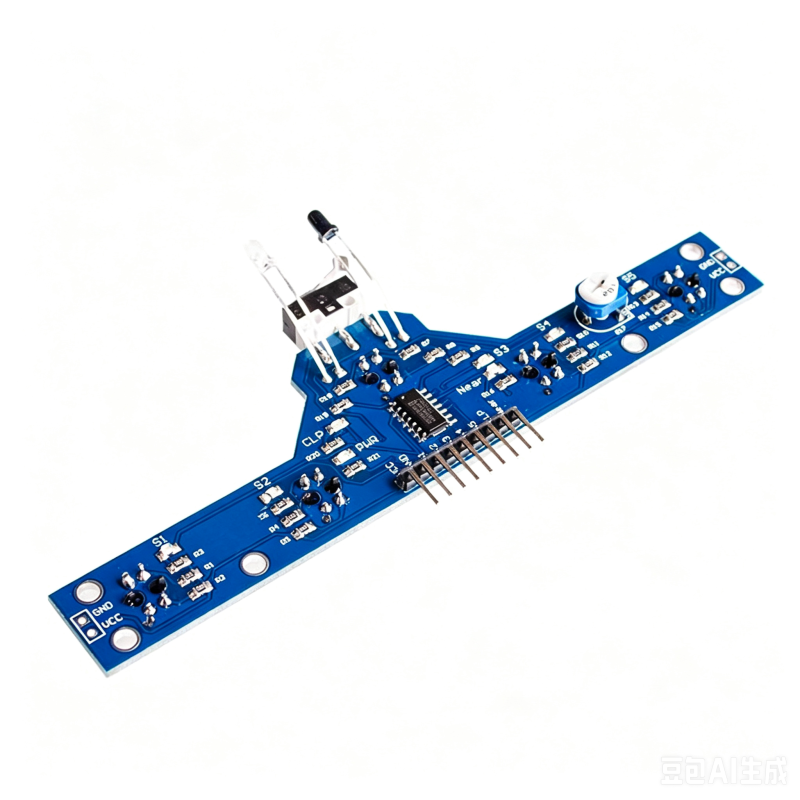

1.BFD-1000 integrates five high-sensitivity tracking sensors,which has little impact on the environment and can accurately track complex black lines(white lines),and is more flexible for simple black line tracking.
2.BFD-1000 integrates an infrared barrier sensor.The barrier distance can be adjusted by sliding rheostat.
3.BFD-1000 has a specially designed touch detection sensor,which makes the design of the round-trip robot easier.

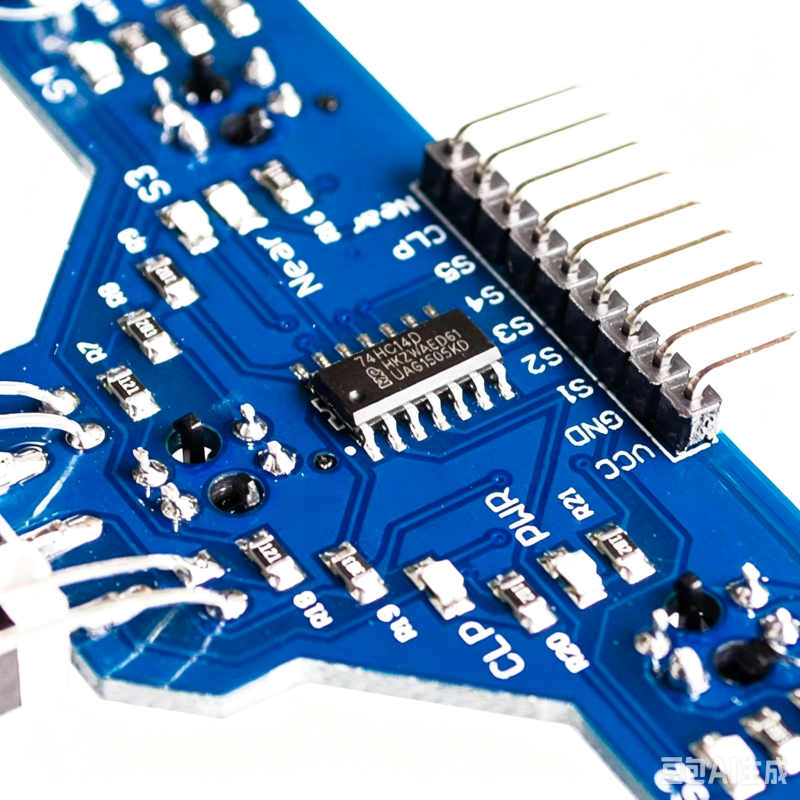

4.BFD-1000 output signals are all digital signals(high and low levels),convenient to connect with the MCU.
5.The output status of all BFD-1000 sensors is indicated by LED lights for easy debugging.
6.BFD-1000 supports 3.0-5.5v to meet most system requirements.
7.With high sensitivity sensor,the tracking range can be arbitrarily changed between 0.5mm-40mm without any adjustment.
