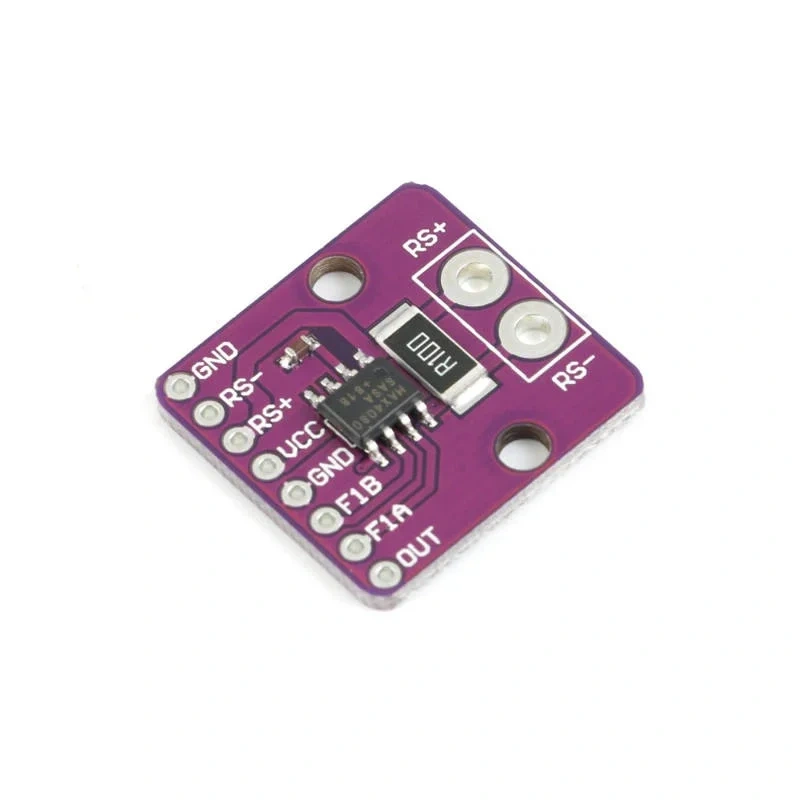

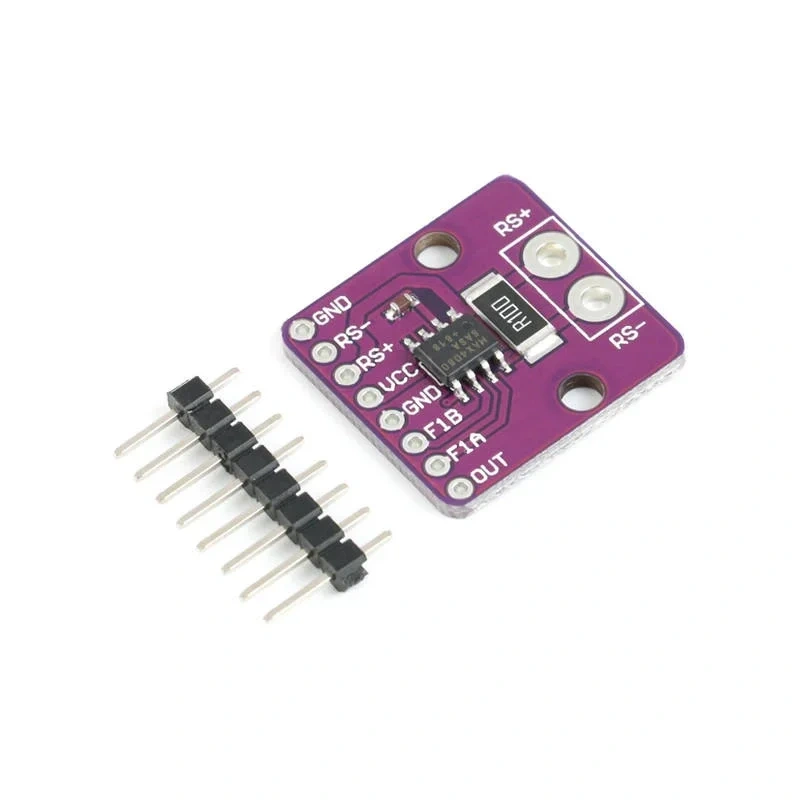

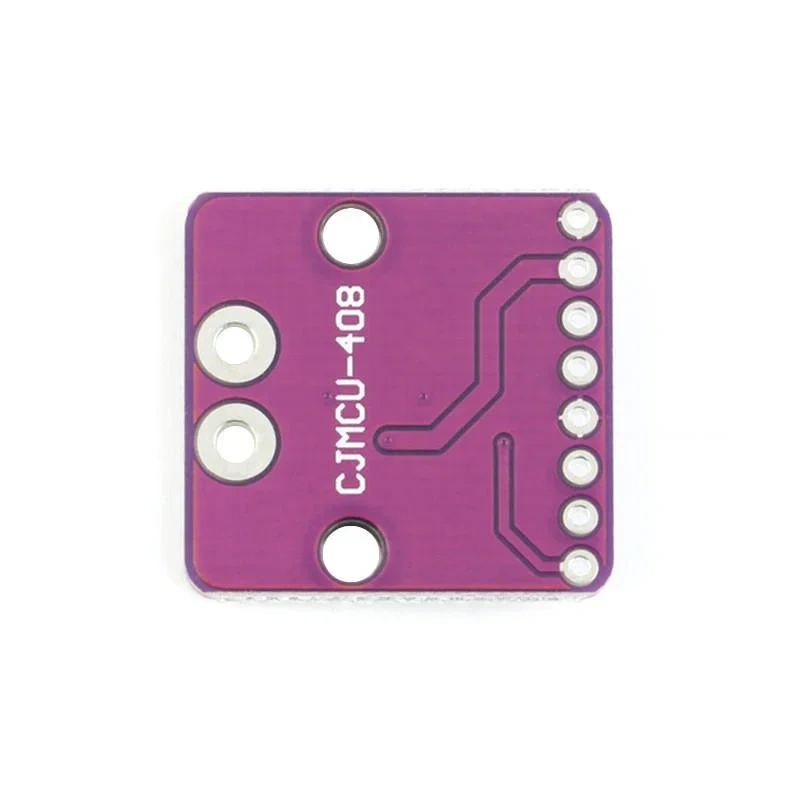

CJMCU-4080 MAX4080SASA Current Detection Amplifier Module

Common mode input voltage range: 4.5V to 76V
Large working current: 190uA
Full scale accuracy: ±0.1%
Low input offset voltage: 100μV
Independent working power supply voltage: 4.5V to 76V
Operating temperature range: -40°C to +125°C
RS +: The positive pole of the external detection resistor
RS-: The negative pole of the external detection resistor
VCC: Positive power supply
OUT: Conversion voltage output
FIA, FIB: MAX4080 chip used by the module, no connection
