CNC Shield V3 A4988 Driver Expansion Board

SKU: ELY2413
0.0 (0)
0 Sold
$0.80 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Style:
    1pcs
Quantity:
Add to Favorites (0)
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
1/1
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
  • CNC Shield V3 A4988 Driver Expansion Board
  • Description

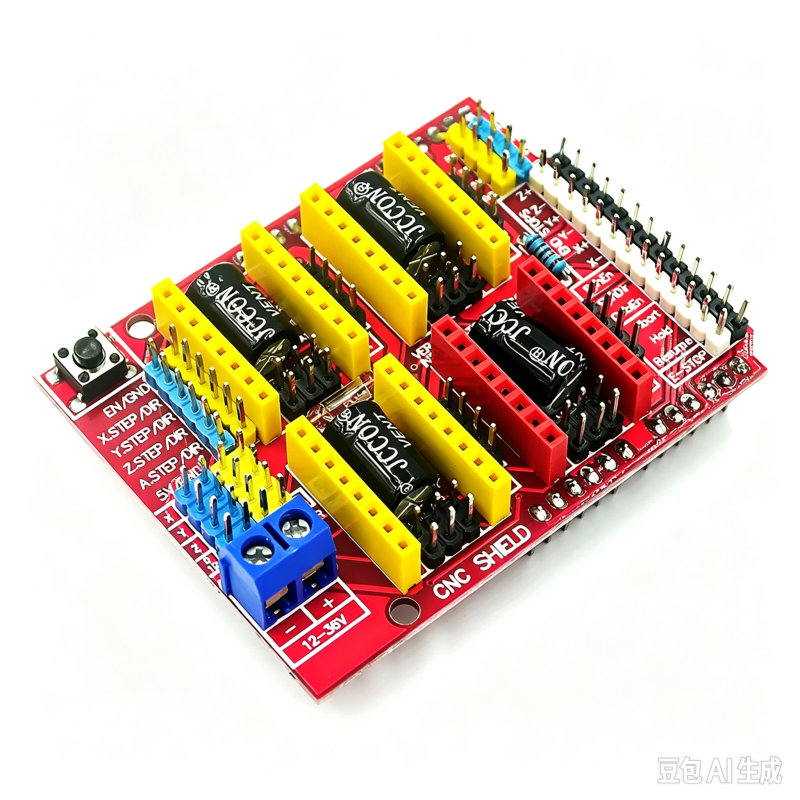

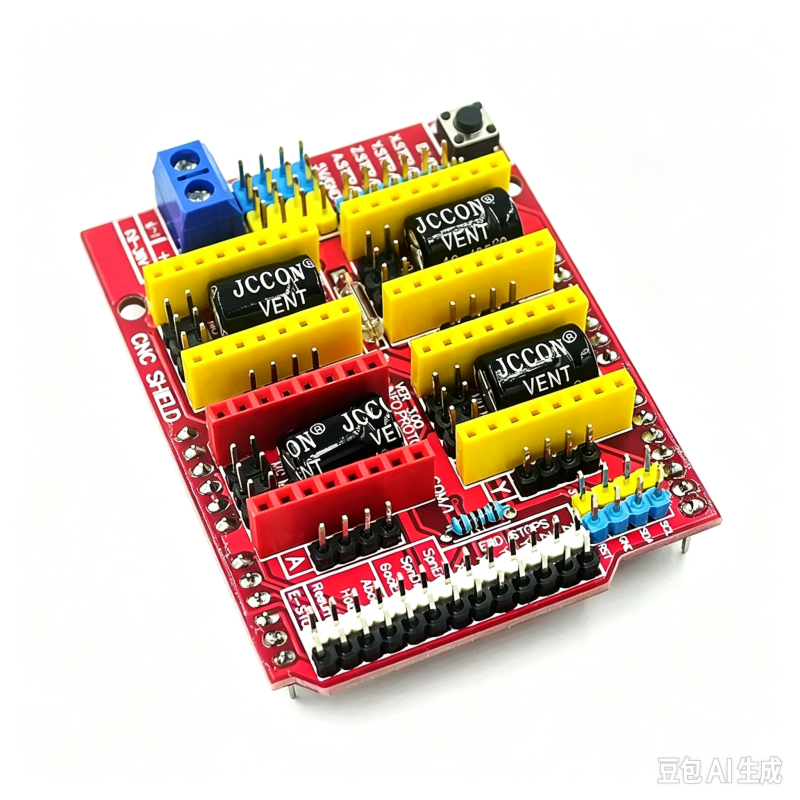

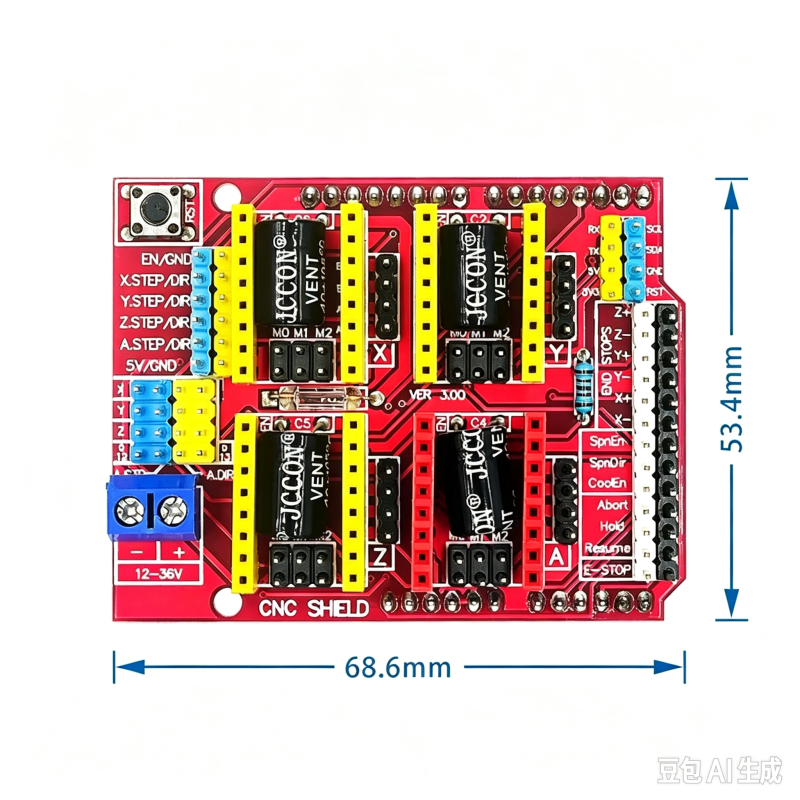

This expansion board as a driver expansion board, can be used for engraving machines, 3D printers.
It is a total of four slots, can drive four A4988 stepper motor. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors. Very convenient to use.
UNO for module IO port correspondence introduction.

Note: This version is not included the A4988 module and UNO R3 module!

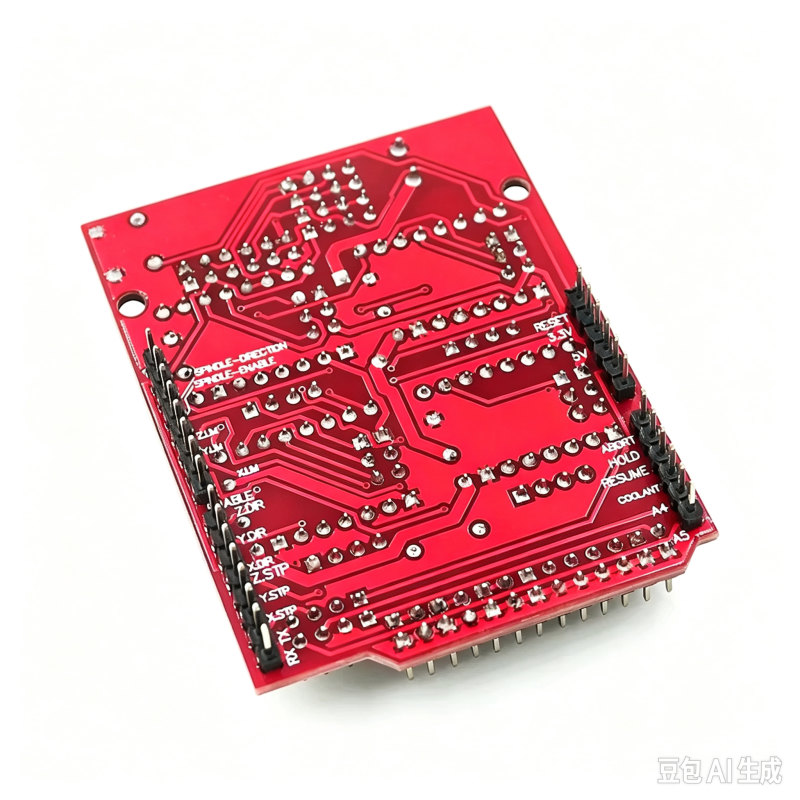

IO corresponding pins:
UNO for-- expansion board
8-- EN ( stepper motor driver enable , active low )
7-- Z.DIR (Z -axis direction control )
6-- Y.DIR (Y -axis direction control )
5-- X.DIR (X -axis direction control )
4-- Z.STEP (Z -axis stepper control )
3-- Y.STEP (Y -axis stepper control )
2-- X.STEP (X -axis stepper control )
