Introduction:

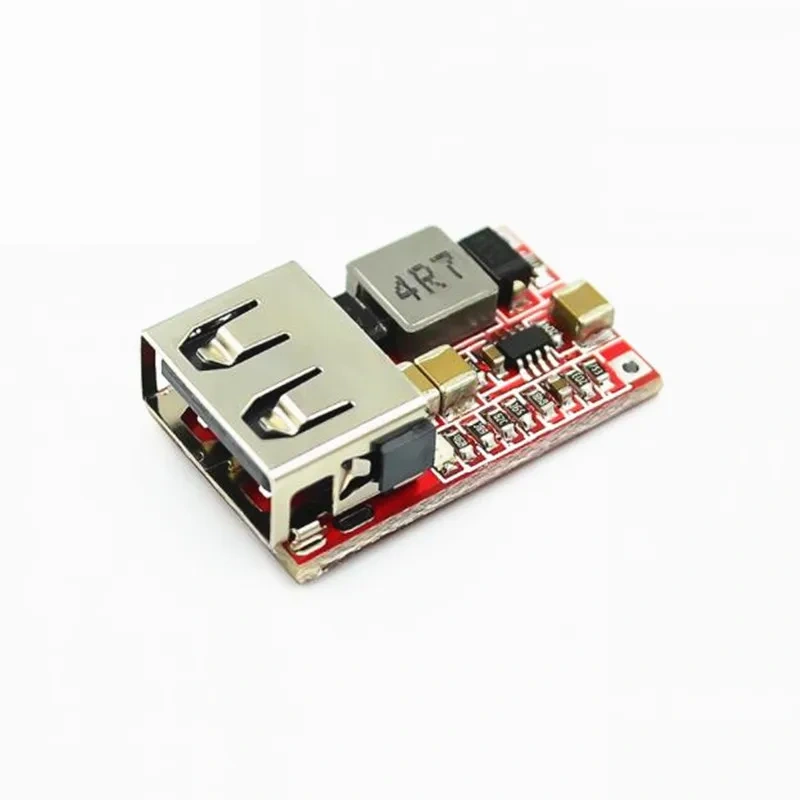

Modular nature:Non-isolated step-down module (BUCK) synchronous rectification
Input voltage:DC 6-24V
The output voltage:5.1-5.2V(You can choose between 3.3-6V, if other voltage please inform the dispensers in advance, the default delivery is 5.1V-5.2)
Output current:Maximum 3A (full load please pay attention to heat), the actual test input 12V output within 2A without special treatment heat dissipation.
Conversion efficiency:highest97.5%(6.5 rpm to 5V 0.7A)(Short reverse polarity protection and fuse after the test value)
Switching frequency:500KHz
Output ripple:10mV (12V to 5V3A) 20M bandwidth
Output indication:The output voltage indicator isred
Operating temperature:Industrial grade (-40 ° C to + 85 ° C) (the higher the ambient temperature, the smaller the output power)
Output overvoltage protection:Yes, enter 1.5A fuse, output 5V with 300W TVS tube clamp protection.
Full load temperature rise:30 ° C
Quiescent Current:0.85Milliampere
Load Regulation:± 1%
Voltage regulation:±0.5%
Dynamic response speed:5% 200uS
Output short circuit protection:Yes, please do not short circuit for a long time
Input Reverse Protection:Yes, the input reverse polarity protection diode
Wiring:welding
Input method:welding
output method:Short head boundless USB
