Module parameters:

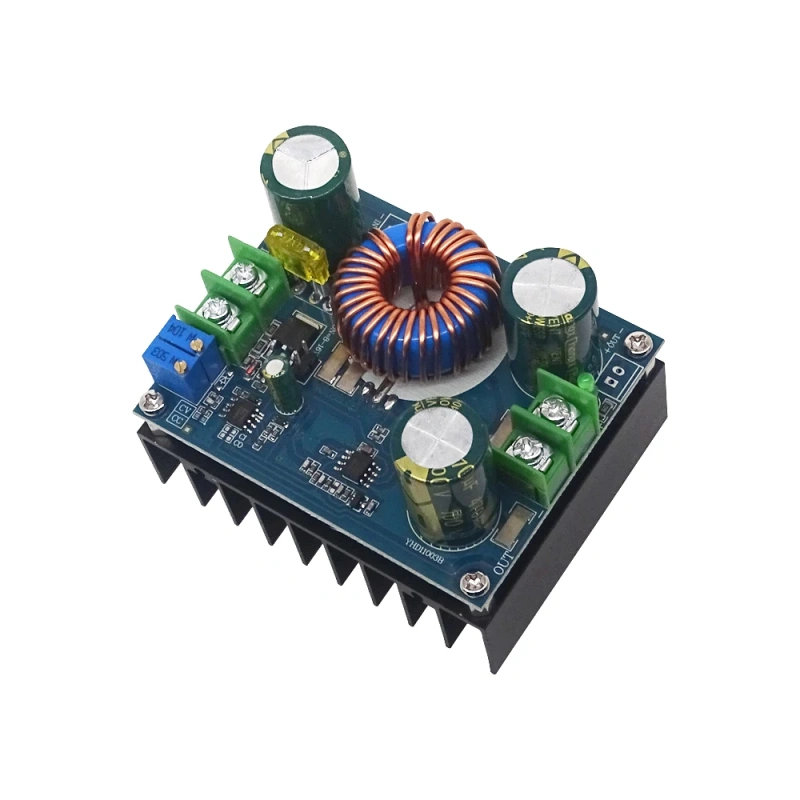

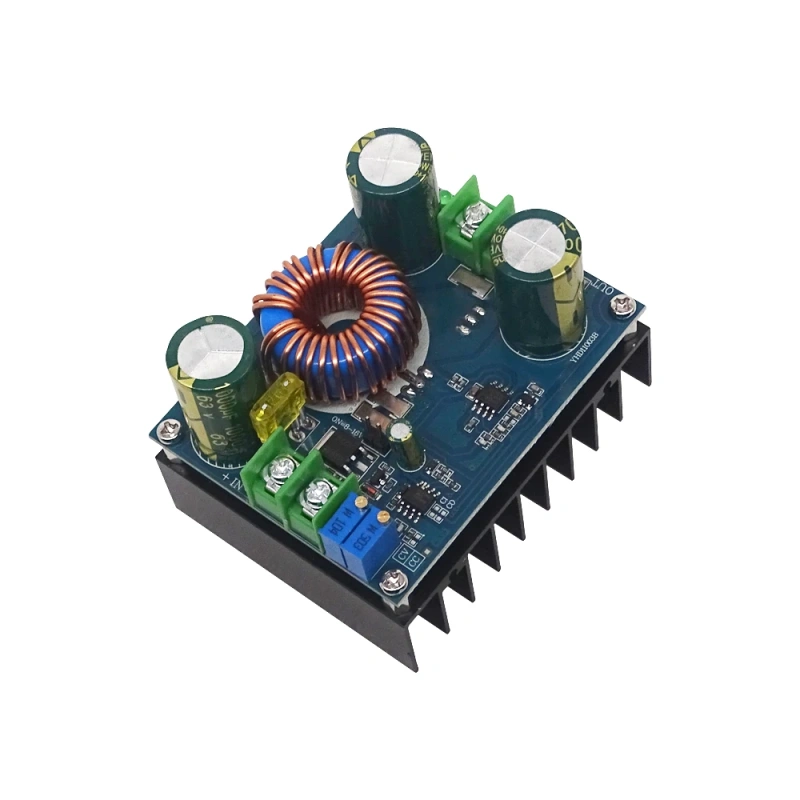

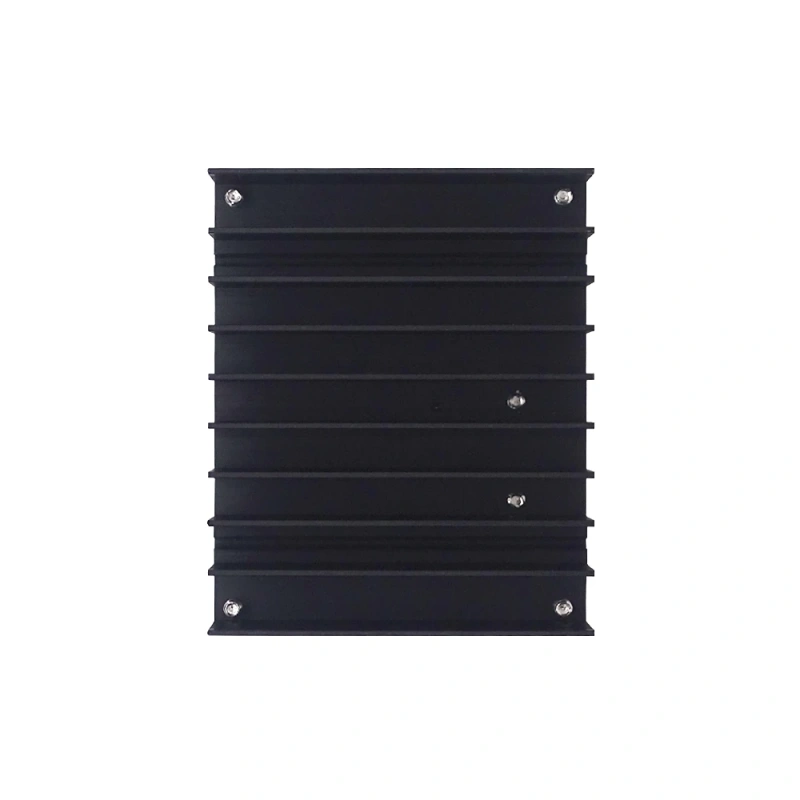

Module Name: 600W Boost Constant Current Module
Module nature: Non isolated boost module (BOOST)
Input voltage: Two input voltage ranges are optional (selected through the jumper on the board)
1. 8-16V input (for triple series lithium and 12V battery applications), do not exceed the voltage input in this input state
Otherwise, it will burn out the module!!!
2. 12-60V input factory default range (for wide input voltage range applications)
Input current: 16A (MAX). If it exceeds 10A, please strengthen heat dissipation
Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the higher the static current will increase)
Output voltage: 12-80V continuously adjustable (default output 19V, if other voltages are needed, please explain to the shopkeeper.)
12-80V fixed output (for bulk customers)
Output current: 12A MAX. If it exceeds 10A, please strengthen heat dissipation (related to input and output pressure differences, the larger the pressure difference, the smaller the output current)
Constant current range: 0.1-12A
Output power:=input voltage * 10A, for example: input 12V * 10A=120W, input 24V * 10A=240W,
Input 36V * 10A=360W, input 48V * 10A=480W, input 60V * 10A=600W
If higher power is required, two modules can be used in parallel. For example, if the output is 15A, two modules can be used in parallel,
Adjust the current of each module to 8A.
Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
Working frequency: 150KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current, and voltage difference)
Overcurrent protection: Yes (if the input exceeds 17A, the output voltage will be automatically reduced, with a certain range of error.)
Short circuit protection: With (input 20A fuse) dual short circuit protection, it is safer to use.
Input reverse protection: none, (if necessary, please input a diode in series)
Output anti backflow: Yes, there is no need to add anti backflow diodes when charging.
Installation method: 2 3mm screws
Wiring method: Welding free output of wiring terminals

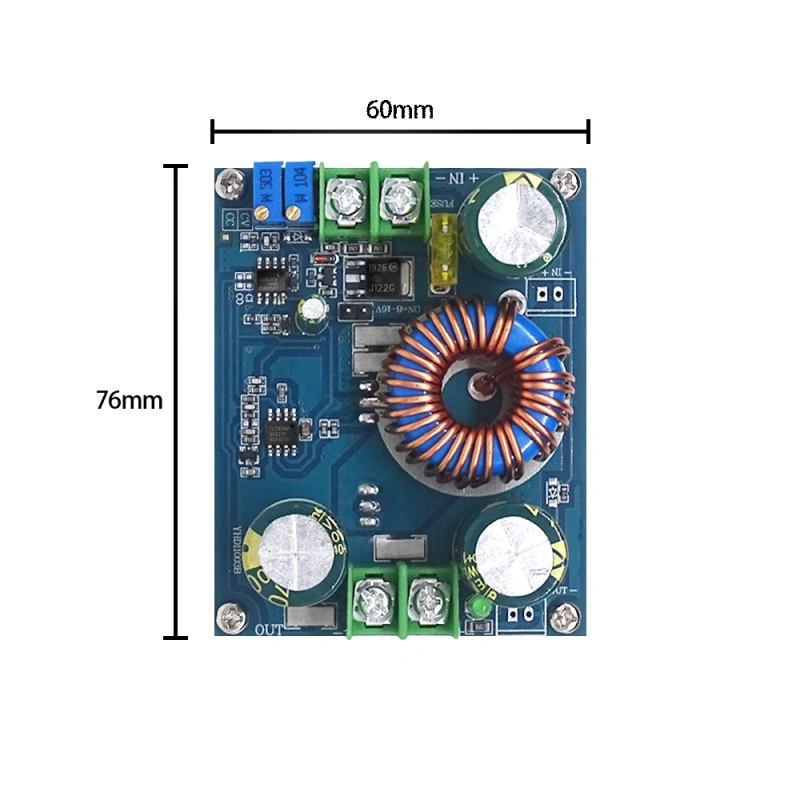

Module size: 76mm in length, 60mm in width, and 56mm in height
Module unit weight: 205 grams
Application scope:
1. DIY is a regulated power supply that can input 12V and output adjustable from 12-80V.
2. To power your electronic devices, you can set the output value according to your system voltage.
3. As a car power supply, it can power your laptop, PDA, or various digital products.
4. DIY a high-power laptop mobile power supply: paired with a large capacity 12V lithium battery pack, your laptop can light up wherever you go.
5. Solar panel voltage stabilization.
6. Charge batteries, lithium batteries, etc.
7. Drive high-power LED lights.
