Description

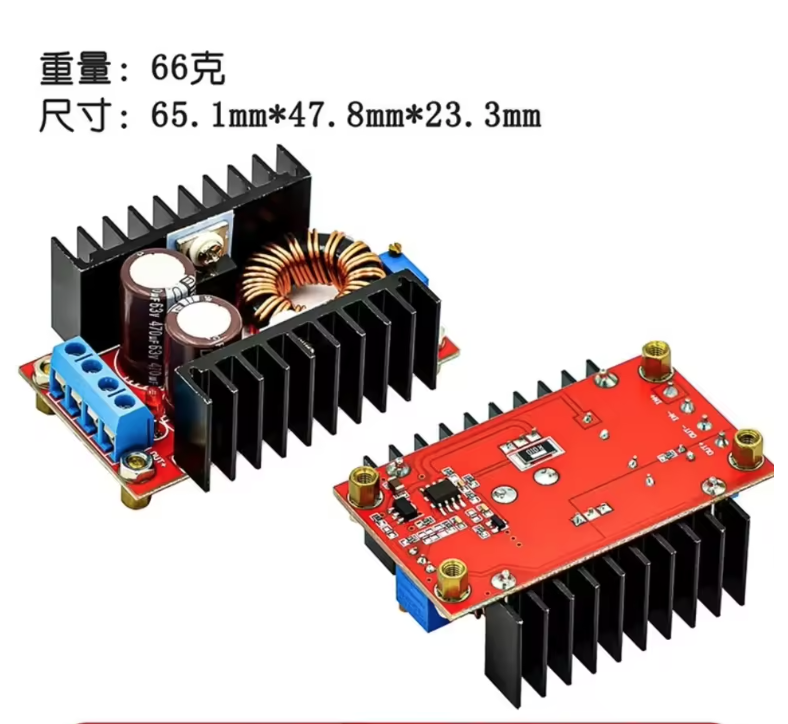

120W booster module Reference parameters:
Weight:66g
Size:65.1mm*47.8mm*23.3mm
Input voltage:10-32V
Output voltage:35-60V
Output current:5A (MAX)
Natural cooling:80W (MAX)
Enhanced heat dissipation:120W (MAX)
Conversion efficiency:90% (typical value)
Output ripple:2% output voltage (MAX), 20M bandwidth
Working temperature:Industrial grade 40℃~+85℃
Full load temperature rise:5℃
No-load current:25mA
Load adjustment rate:±0.5%
Voltage adjustment rate:±0.5%
Dynamic response speed:5% 200uS

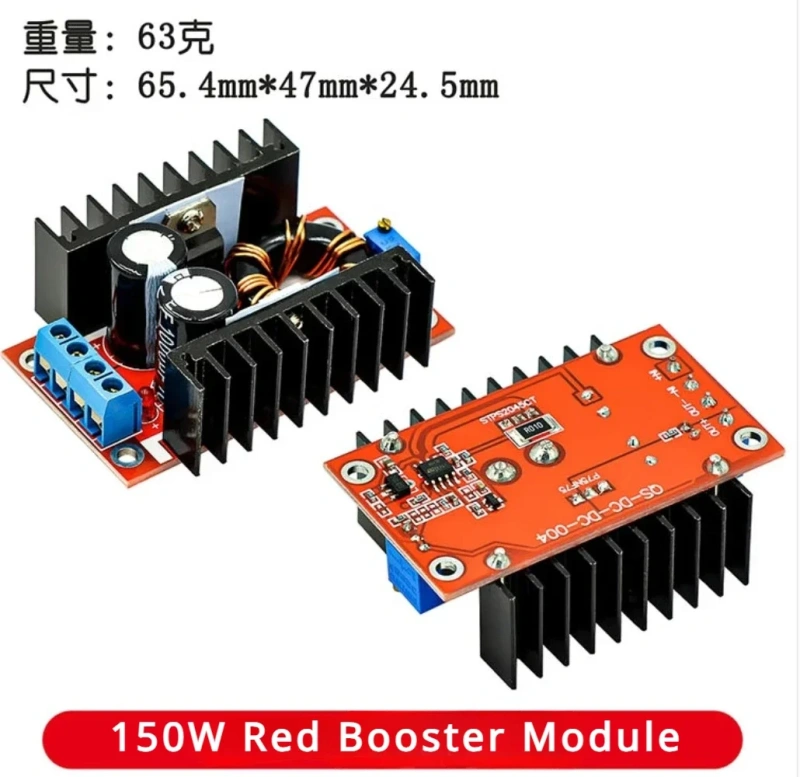

150w red booster module Reference parameters:
Weight:63g
Size:65.4mm*47mm*24.5mm

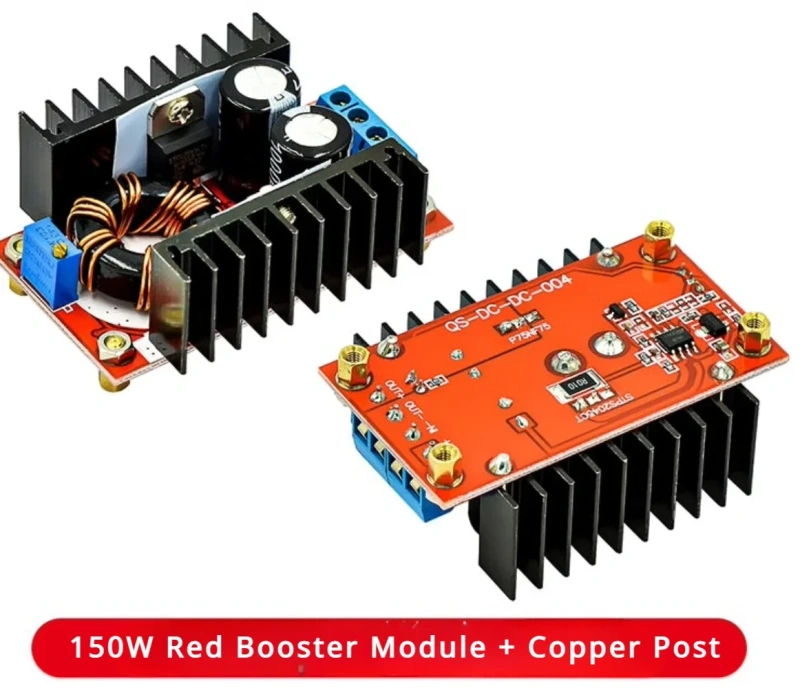

150w red booster module+copper pillar Reference parameters:
Weight:68g
Size:65.4mm*47mm*24.5mm
Input voltage:12-32V
Output current:6A (MAX)
Input current:10 (MAX) (If it exceeds 10A, please strengthen heat dissipation)
Full load temperature rise:45℃
No-load current:typical 25mA

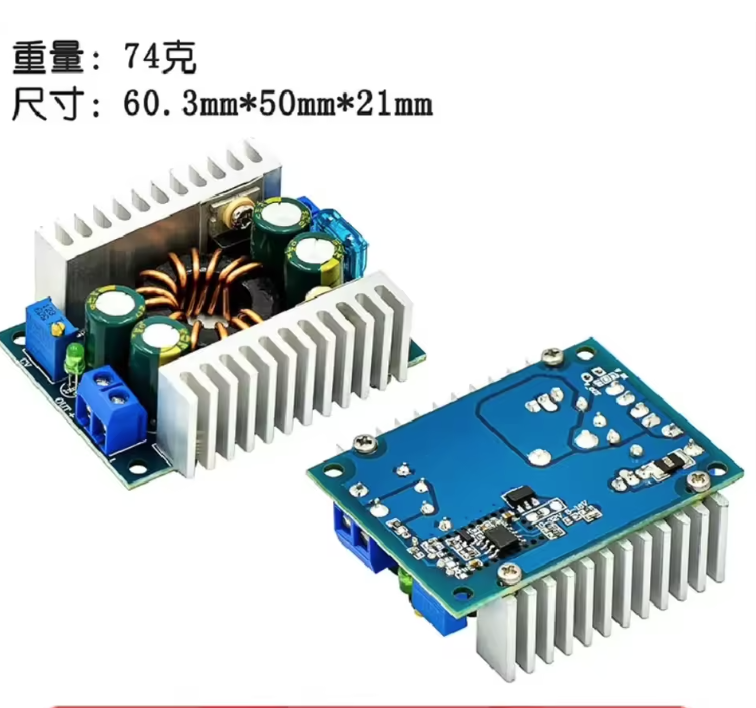

150w blue booster module Reference parameters:
Weight:74g
Size:60.3mm*50mm*21mm
Input current:16A (MAX)( if it exceeds 8A, please strengthen heat dissipation)
Static working current:15mA
Output voltage:9-46V
Output current:8A MAX
Working temperature:-40~+85°
Working frequency:150KHz

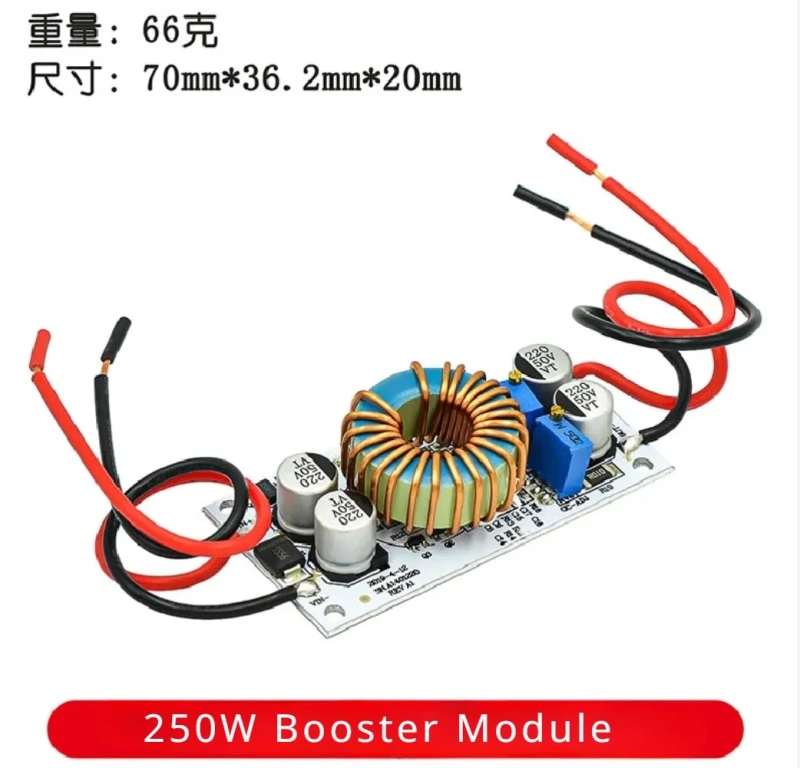

250w booster module Reference parameters:
Weight:66g
Size:70mm*36.2mm*20mm
Input voltage:DC85V-48V
Input current:10A (MAX) (If it exceeds 8A, please strengthen heat dissipation)
Static working current:10mA
Output voltage:10-50V
Output current:10A (MAX)
Constant current range:0.2-8A
Working temperature:-40~+85°
Working frequency:150KHz

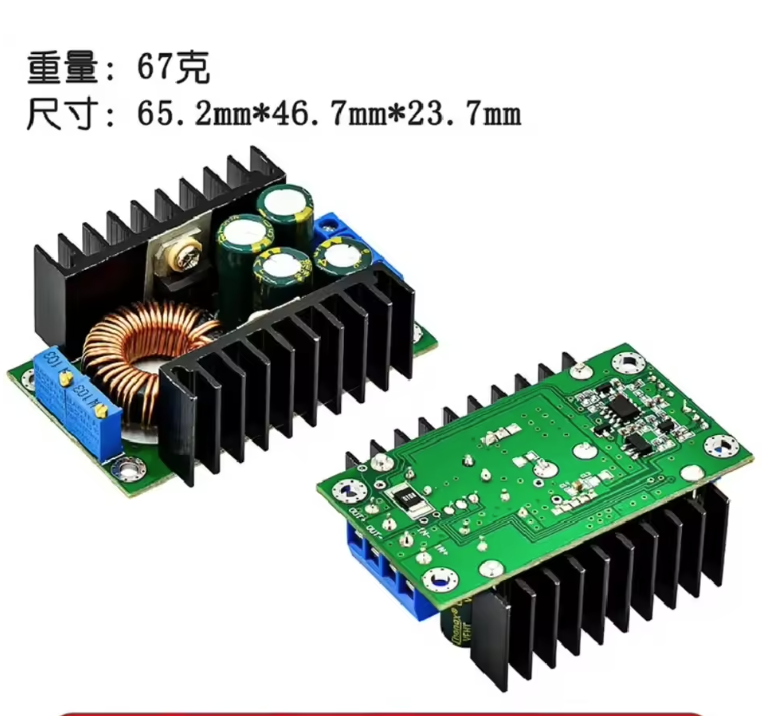

300w step-down module Reference parameters:
Weight:67g
Size:65.2mm*46.7mm*23.7mm
Input voltage:7-32V
Output current:12A
Output power:300W
Conversion efficiency:95%
Working frequency:300KHZ

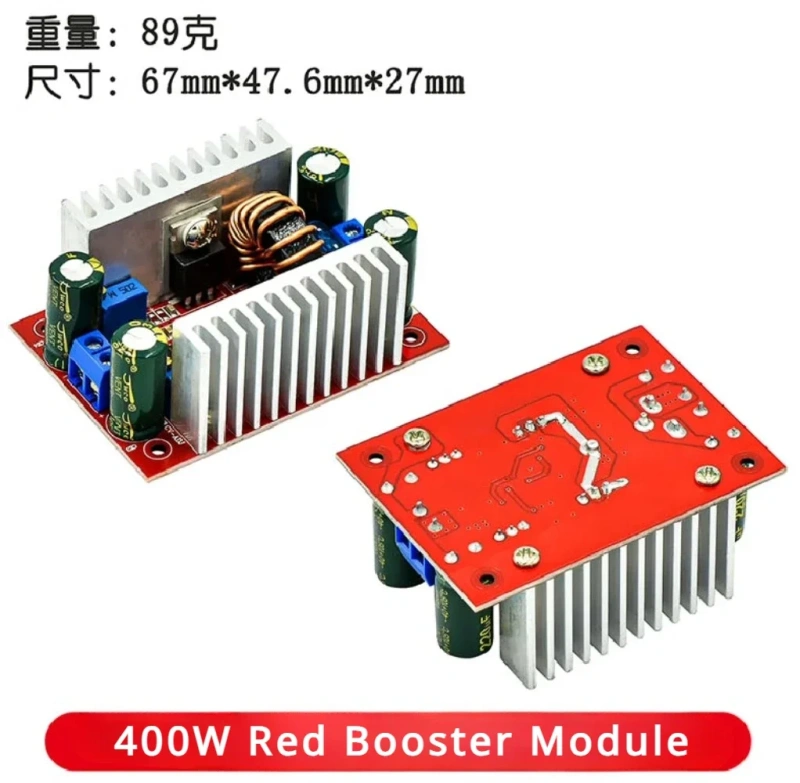

400w booster module Reference parameters:
Weight:89g
Size:67mm*47.6mm*27mm
Input voltage:DC8.5V-50V
Input current:15A (MAX)
Output voltage:10-60V
Output current:12A MAX
Constant current range:0.2-12A
Working temperature:-40~+85°
Working frequency:150KHz

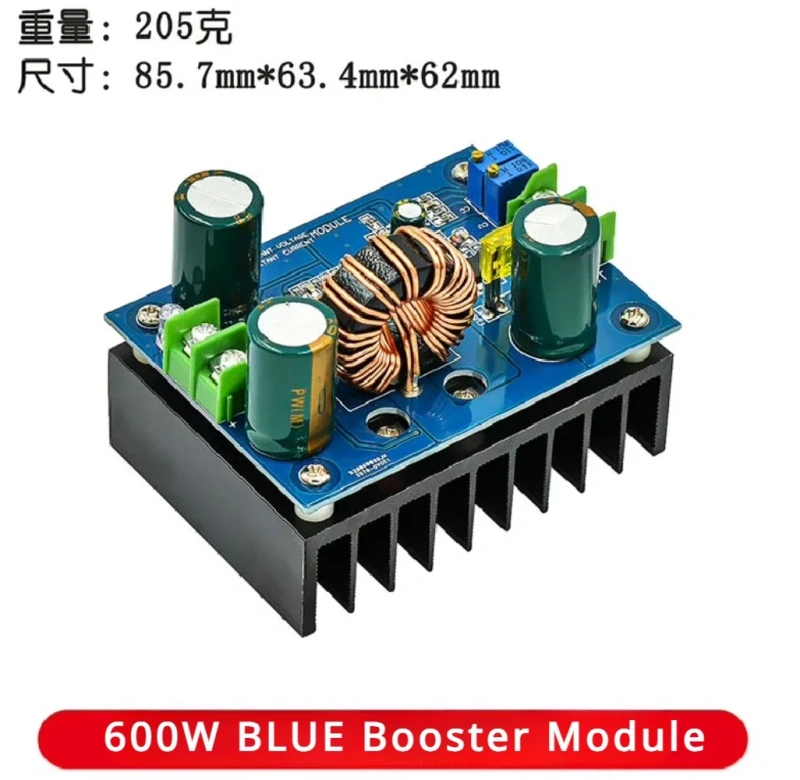

600w blue booster module Reference parameters:
Weight:205g
Size:85.7mm*63.4mm*62mm
Input voltage:12V-60V
Input current:15A
Output voltage:12V-80V
Conversion efficiency:95%

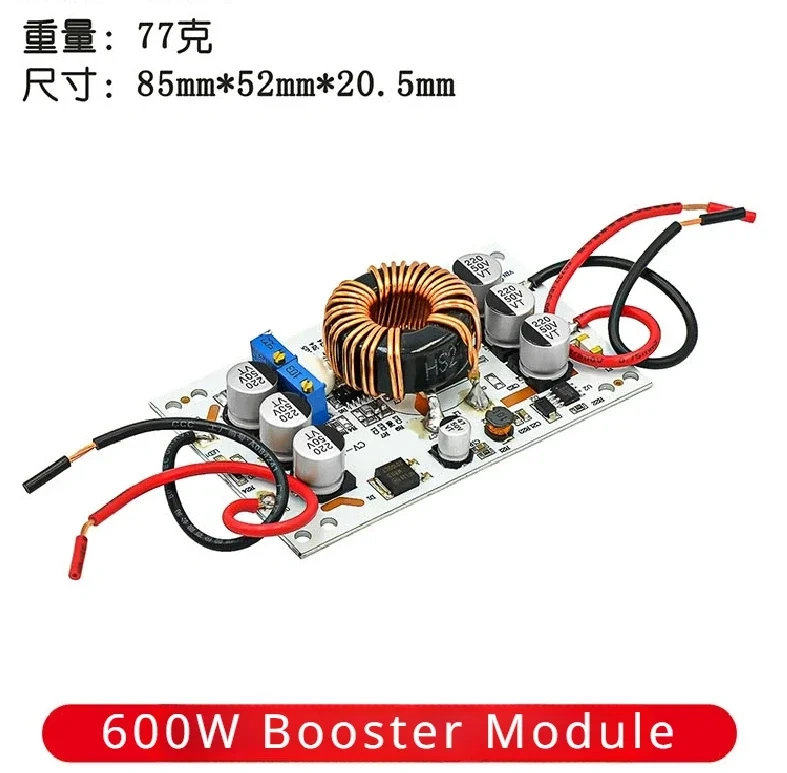

600w white booster module Reference parameters:
Weight:77g
Size:85mm*52mm*20.5mm
Input voltage:DC10V-60V
Input current:10 (MAX)
Static working current:10mA
Constant current range:0.2-10A
Working temperature:-40~+85°
Working frequency:150KHz

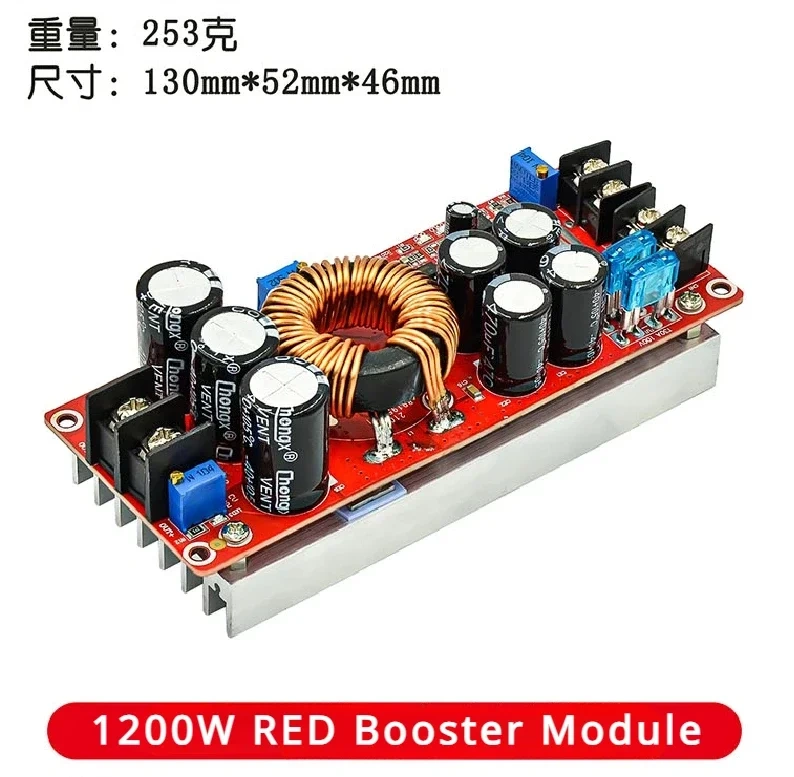

1200w booster module Reference parameters:
Weight:253g
Size:130mm*52mm*46mm
Input voltage:DC10-60V
Input current:20A (MAX)
Output voltage:12-80V
Output current:18A MAX
Constant current range:0.5-18A
Working temperature:-40~+85°
Working frequency:150KHz
Conversion efficiency:92% -97%

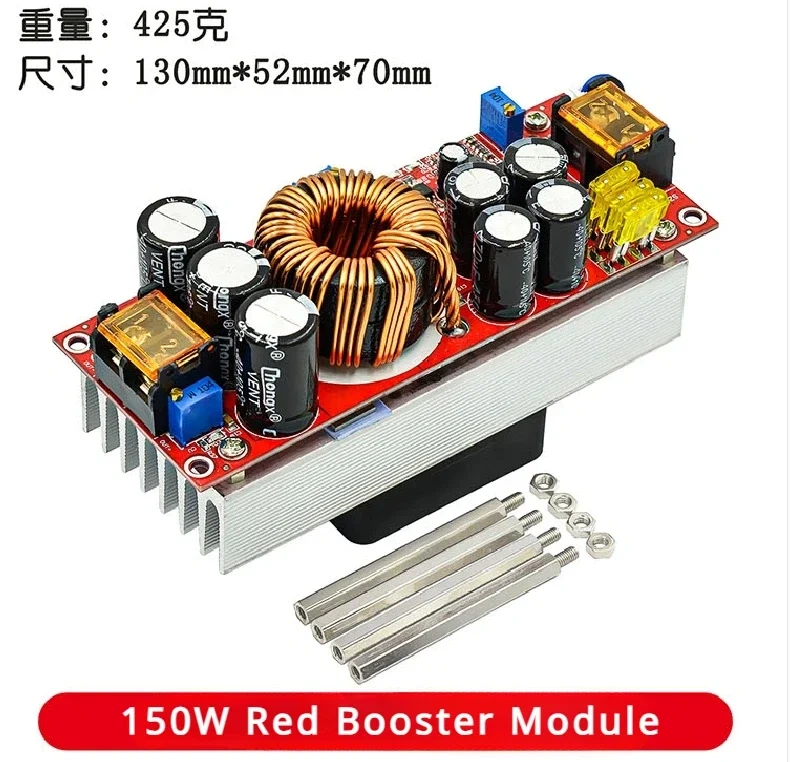

1500w booster module Reference parameters:
Weight:425g
Size:130mm*52mm*70mm
Input voltage:10-30V
Input current:10-30V input voltage, high current 30A; 31-60V input voltage, high current 25A
Working temperature:-40~+85°
Working frequency:150KHz
Conversion efficiency:92% -97%
