Product Characteristics
This product brings together a wide range of modern motor speed control, with small size, simple operation, resistance to high current anti-reverse connection and other advantages.
Simple operation, high-current resistant anti-reverse connection and other advantages.
Suitable for most users in different environments with a variety of speed control.
Support acceleration and deceleration function can be set through the menu.
With set parameters power failure permanent memory function
Product Description.
Voltage: DC8V-55V (wide voltage anti-reverse protection)
Speed range: long press/short press adjustment through the key, degree 0%-100% speed regulation
Driving current: maximum 10A, (recommended output series 12A fuse)
Standby current: <17mA
Mounting hole: 3mm in diameter
Product size ：64mm*35mm*19mm(L*W*H)
Operating temperature: -20℃~70

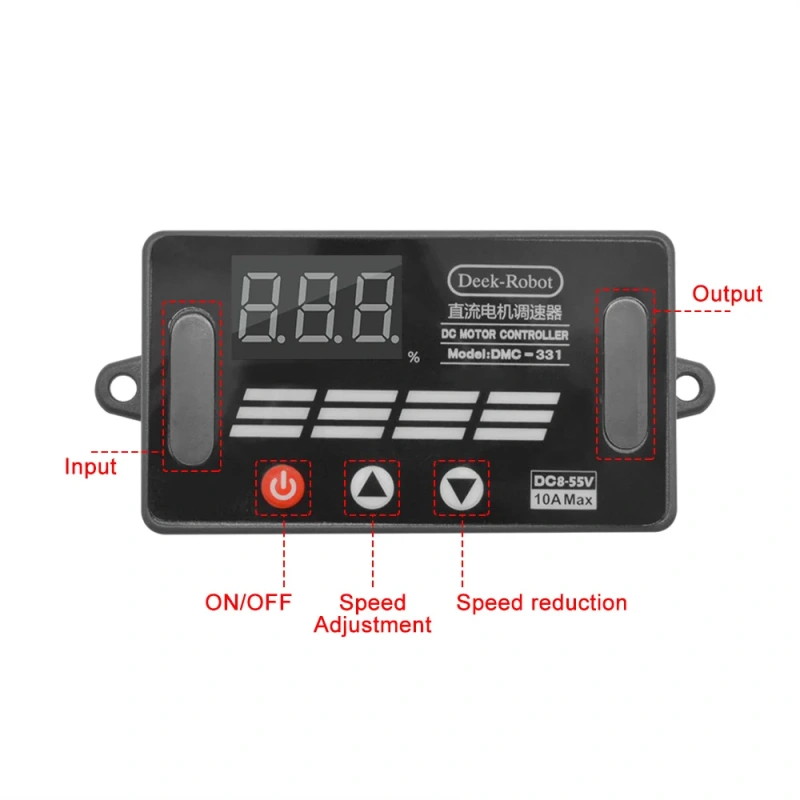

Operation Instructions.
1, click/long press the "speed increase" key, the motor speed increases to a maximum of 100%.
2、Click/long press the "speed reduction" key, the motor speed increases to a minimum of 0%.
3, long press one second "power on / off" key, the controller on or off (power on the default shutdown, power on with memory function)
Cautions:
1, power-on moment digital tube flashes (normal phenomenon, no need to worry)
2, close to the limit of driving current work, it is recommended to take the output side of the series fuse
3, DC motor speed controller can not be installed in the drip, and children within reach.
4. After wiring, you should check whether the line is correct before energizing, so as not to accidentally burn the thermostat and load equipment.
Wiring mode:
"M+", "M-" are connected to the positive and negative poles of the output, M+ is positive, M- is negative.
"VIN", "GND" are connected to the positive and negative poles of the input, Vin is positive, GND is negative (input power supply voltage DC8V-55V)
