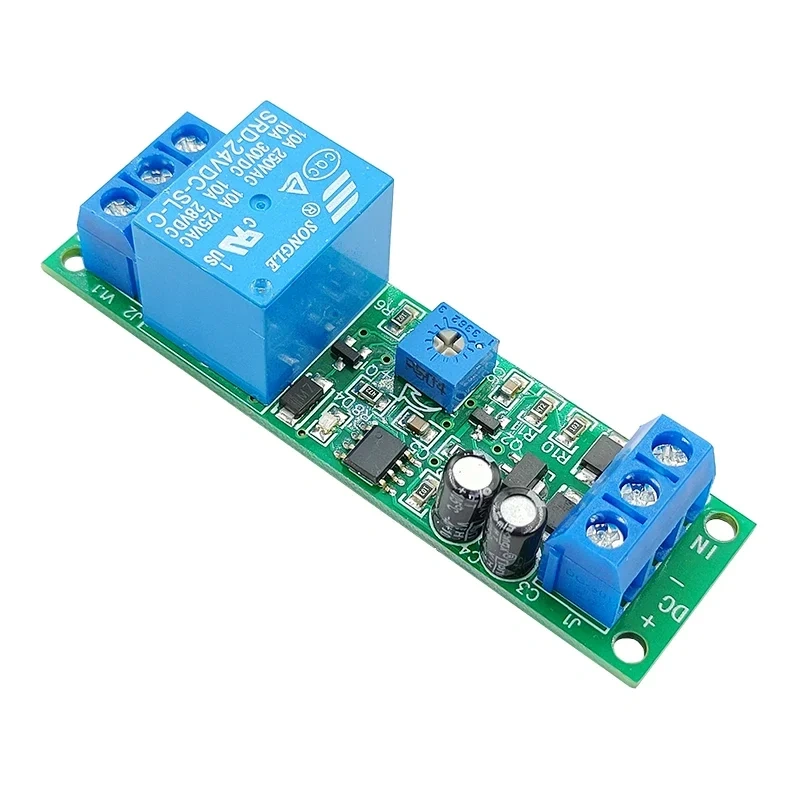

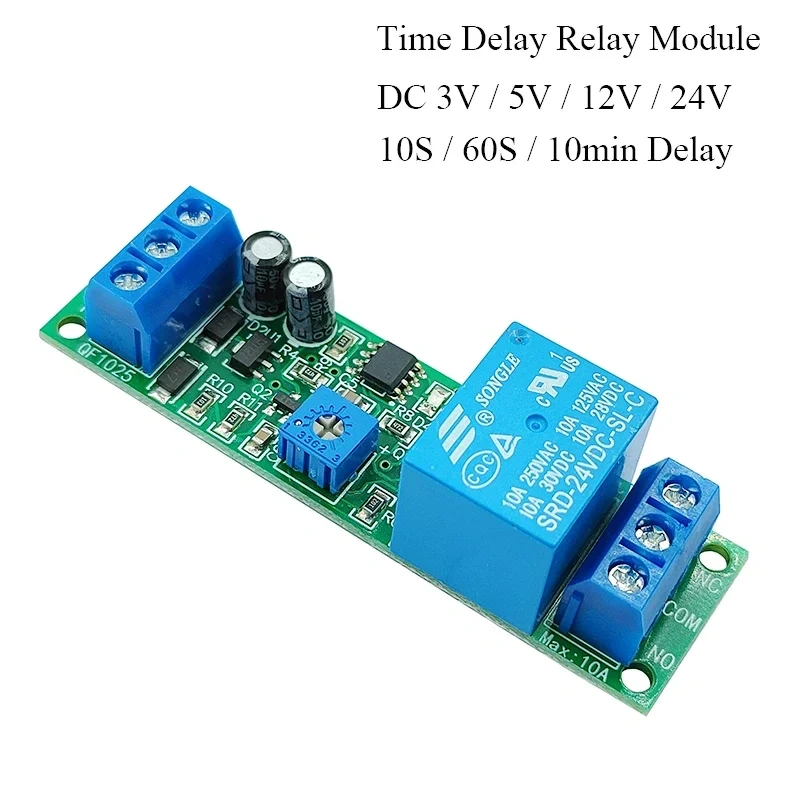

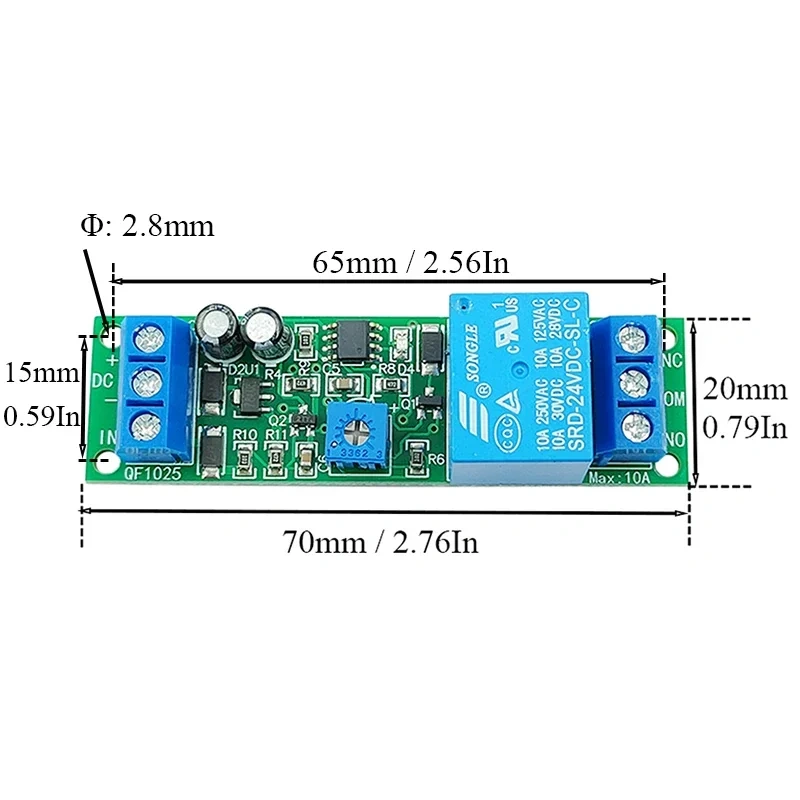

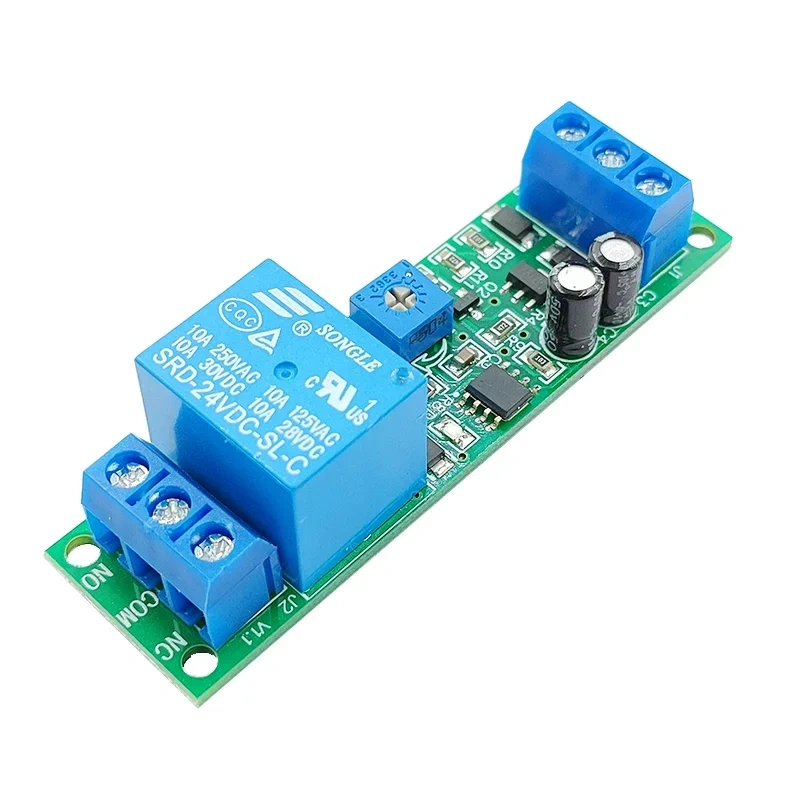

Specification:
Purchase Notes:

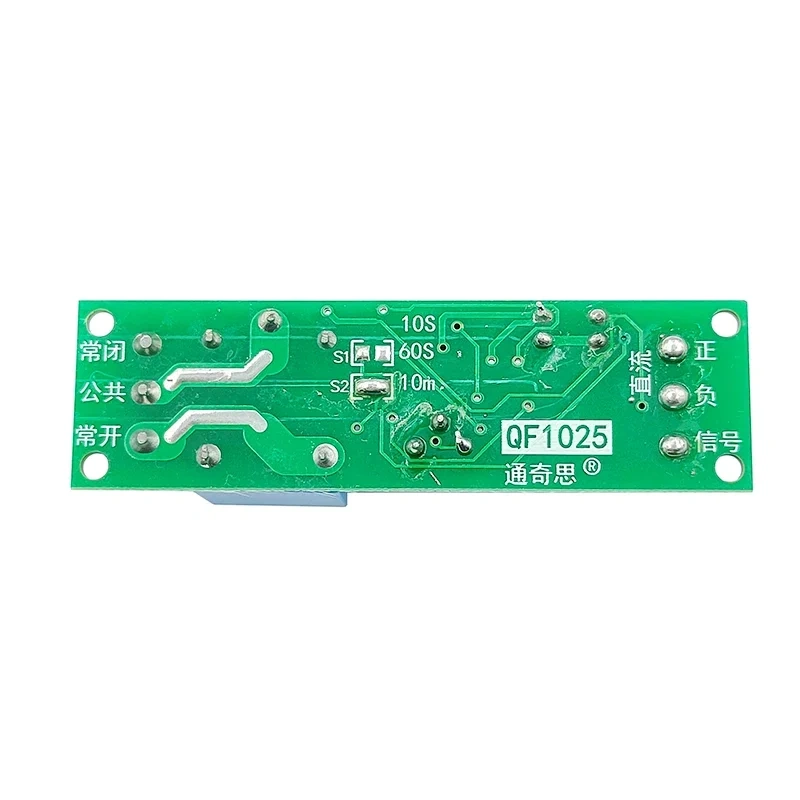

DC 3V(5V / 12V / 24V) 10S: DC 3V(5V / 12V / 24V), delay is 0.1 - 10s;
DC 3V(5V / 12V / 24V) 60S: DC 3V(5V / 12V / 24V), delay is 1 - 60s;
DC 3V(5V / 12V / 24V) 10Min: DC 3V(5V / 12V / 24V), delay is 1 - 10min;
---------------------
DC 3V: Supported range DC 2.8 - 4.5V;
DC 5V: Supported range DC 4.5 - 6.0V;
DC 12V: Supported range DC 10.0 - 15.0V;
DC 24V: Supported range DC 20.0 - 28.0V
---------------------
1. Standby power saving: DC3V (0.45mA); DC5V (0.85mA); DC12V / DC 24V (3mA).
2. Power supply anti-reverse protection: reversing the positive and negative poles of the power supply will not work and will not burn out the module.
---------------------
Brief description of the function: (Trigger once, work for a period of time and then stop automatically)
After the module is connected to the power supply, the green indicator light flashes a little, indicating that the power is normal. The relay has no action at this time. When receiving the trigger signal, the main control chip immediately turn on the relay (green light on), and at the same time began to delay, the time arrived at the relay disconnect.
Note: After the trigger is activated (during the delay), triggering again does not affect the timing. That is, triggering again during the delay is invalid.
---------------------

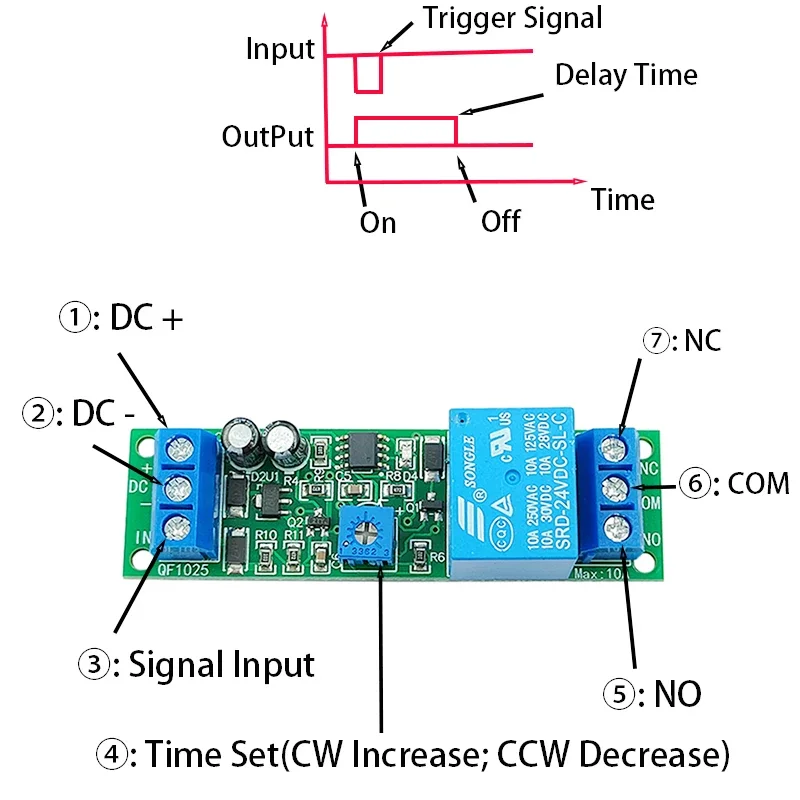

①: DC +
②: DC -
③: Signal Input
④: Time Set(CW Increase; CCW Decrease)
⑤: Normally Open(NO)
⑥: COM
⑦: Normally Close(NC)
