Description

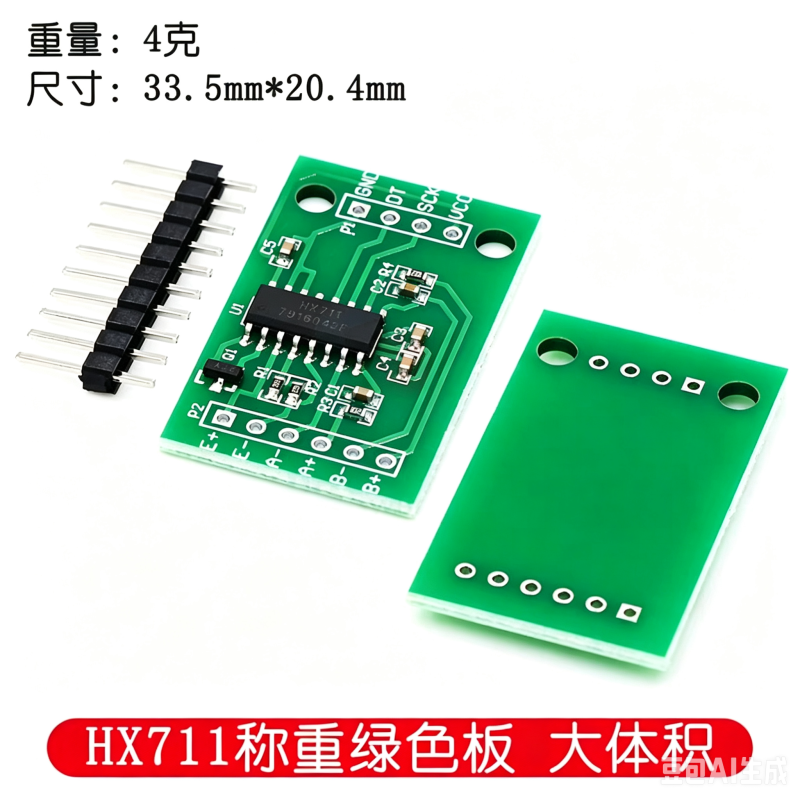

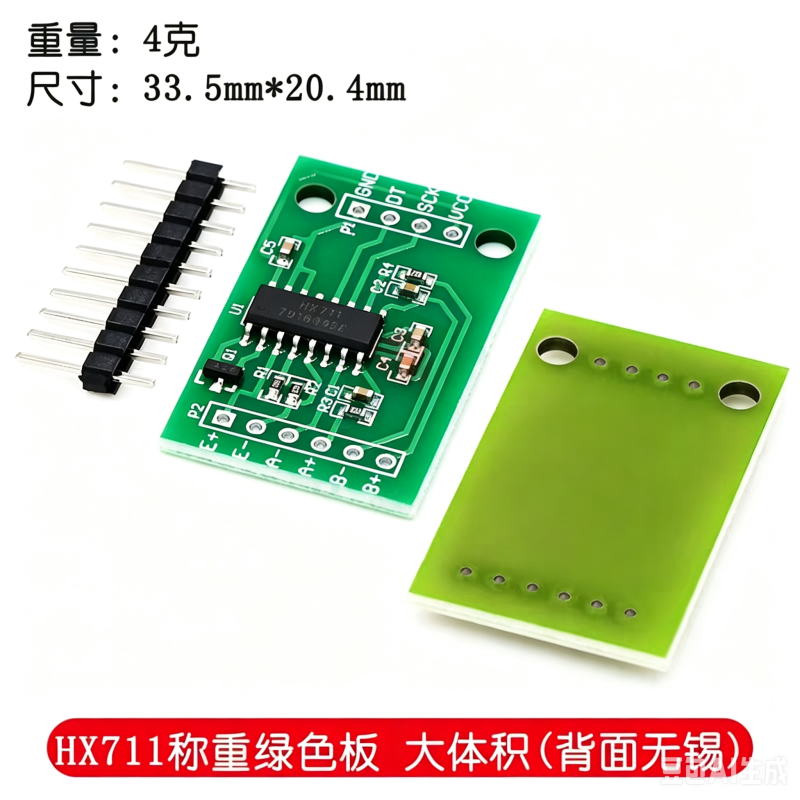

Weight:4g
Product size:33.5mm×20.4mm
1.Two selectable differential input channels
2.On-chip active low noise PGA with selectable gain of 32, 64 and 128
3.On-chip power supply regulator for load-cell and ADC analog power supply
4.On-chip oscillator requiring no external component with optional external crystal
5.On-chip power-on-reset
6.Simple digital control and serial interface: pin-driven controls, no programming needed
7.Selectable 10SPS or 80SPS output data rate
8.Simultaneous 50 and 60Hz supply rejection
9.Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
10.Operation supply voltage range: 2.6 ~ 5.5V
11.Operating Temperature Range:-20 degree ~ +85 degree
