Product introduction

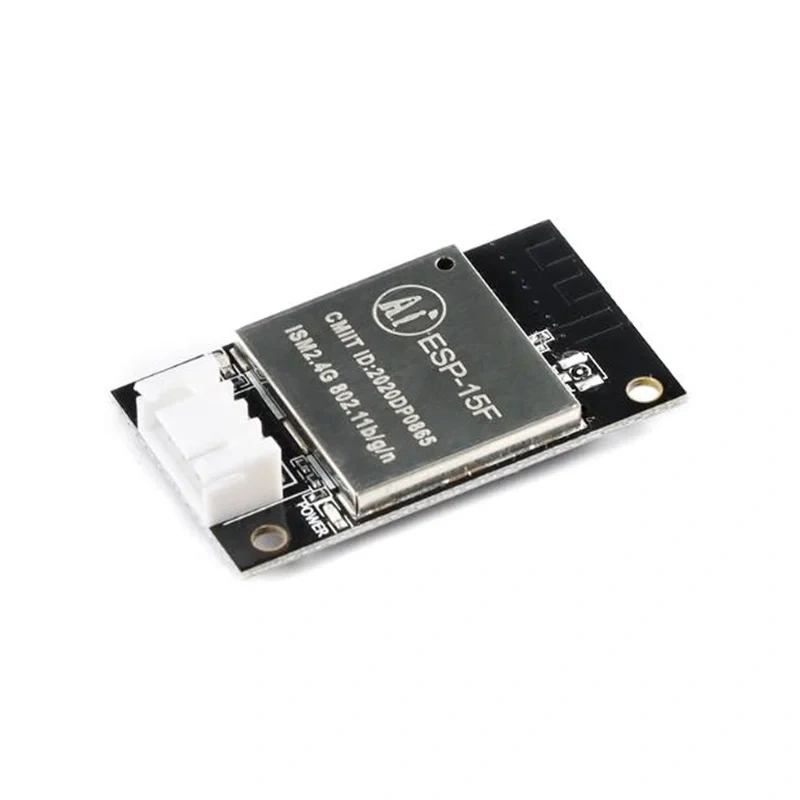

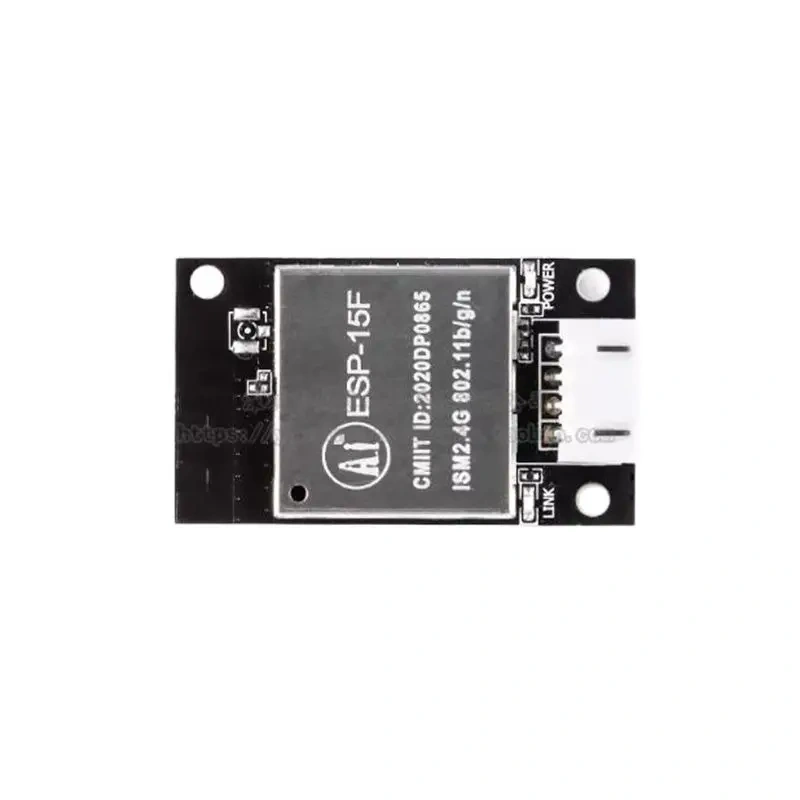

The ESP-15F is a powerful Wi Fi module that integrates the industry-leading Tensilica L1 06 ultra-low power 32-bit micro MCU in a smaller package. It comes with a 16 bit reduced mode, supports 80 MHz and 60 MHz main frequencies, supports RTOS, and integrates Wi Fi MAC/BB/RF/PA/LNAO. The ESP-15F Wi Fi module supports the standard IEEE 802.1 1 b/g/nM, and a complete TCP/IP protocol stack. Users can use this module to add networking functions to existing devices or build independent network controllers.
Product parameters
Product parameter
Connect □: PH2.54 connector/DIP ・ 8 package
Antenna form: onboard PCB antenna/IPEX external antenna
Spectrum range: 2400-2483.5MHz
Working temperature: ・ 20 ° C~70 ° C
Storage environment: ・ 40 ° C~125 ° C,<90% RH
Power supply range: Power supply voltage 5V, power supply current>800mA
Support for receiving □: Only UART I0 □ Quantity 3 (reserved)
String speed: Supports 1 10~4608000 bps, defaults to 1 5200 bps
Security: WEP/WPA PSK/WPA2 PSK
SPI Flash: default 32Mbit
Product size: 41.3 * 24.1 * 6.6 (± 0.2) MM (L * W * H, height is based on the needle base)
