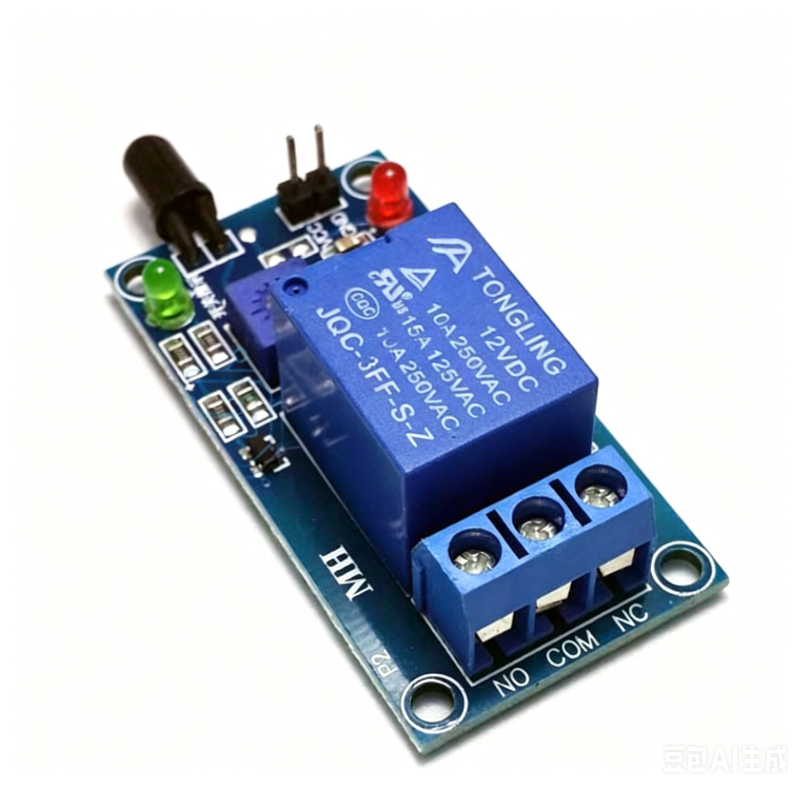

Flame Light Detection Module

Power supply voltage:12VDC
Current:>150mA
Load:250V 10A AC or 30V 10A DC
Boundary size:50*26*19mm
Detection distance:wavelength 760~1100nm
Features:
1.The detection Angle is about 60 degrees,especially sensitive to the flame spectrum.

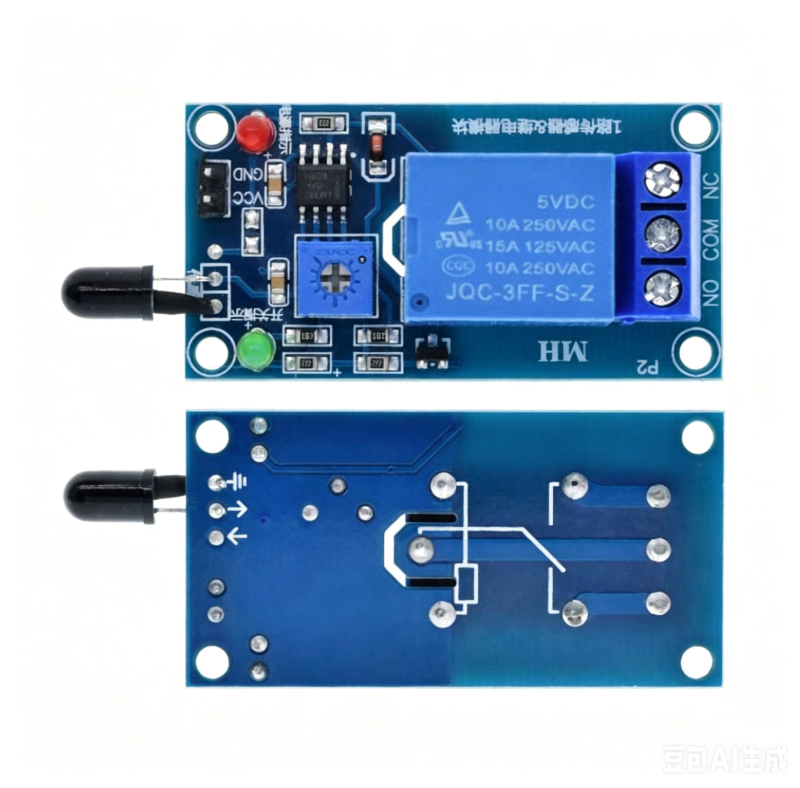

2.Sensitivity adjustable(blue digital potentiometer adjustment in the figure).
3.The comparator output directly triggers the relay.
4.With fixed bolt holes,easy to install.
5.Output with blue connector,easy wiring.
