1. NOTE
The default configuration includes:
304 stainless steel body,
Power: 5-24VDC,

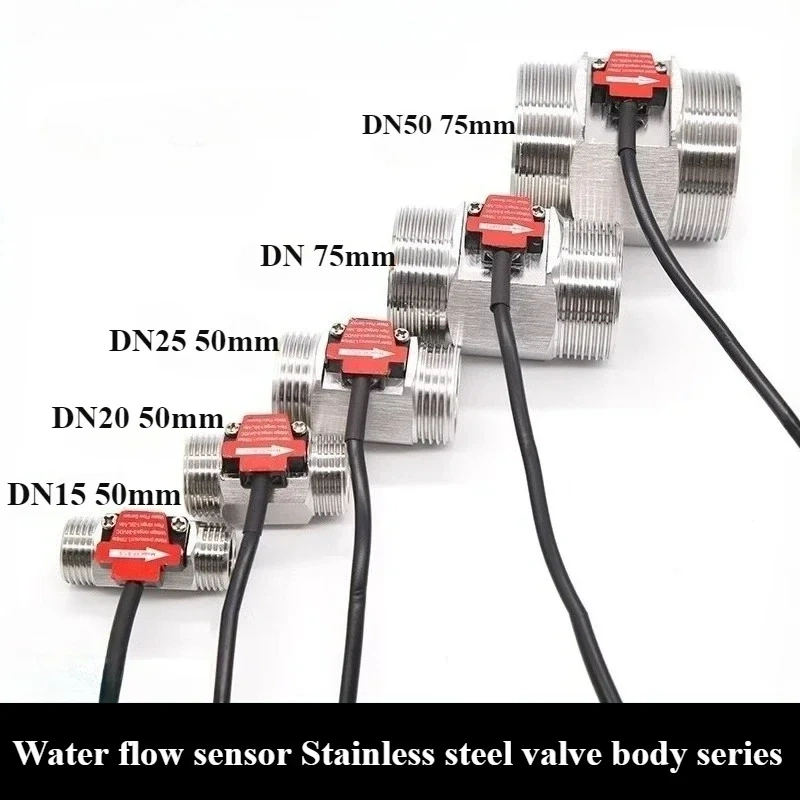

Diameter: DN15-DN50,
Output: pulse (def)
Temperature: -25°C - 80°C, Pressure: ≤1.75MPa.
Before placing an order, please select the appropriate product based on pipeline diameter, thread size, and flow range.
For customization, please contact us.
Installation and Usage Instructions:
Before use, ensure a filter is installed at the sensor's water inlet to prevent particles and debris from entering.
The sensor must be installed indoors or within equipment. Avoid prolonged exposure to harsh conditions like humidity, high temperatures, or outdoor environments. Install in a stable environment to prevent vibration and shaking, which could affect measurement accuracy.
Keep magnetic materials or objects generating a magnetic field away from the sensor to avoid altering its characteristics.
Do not disassemble the water flow sensor, as unauthorized disassembly voids the warranty.

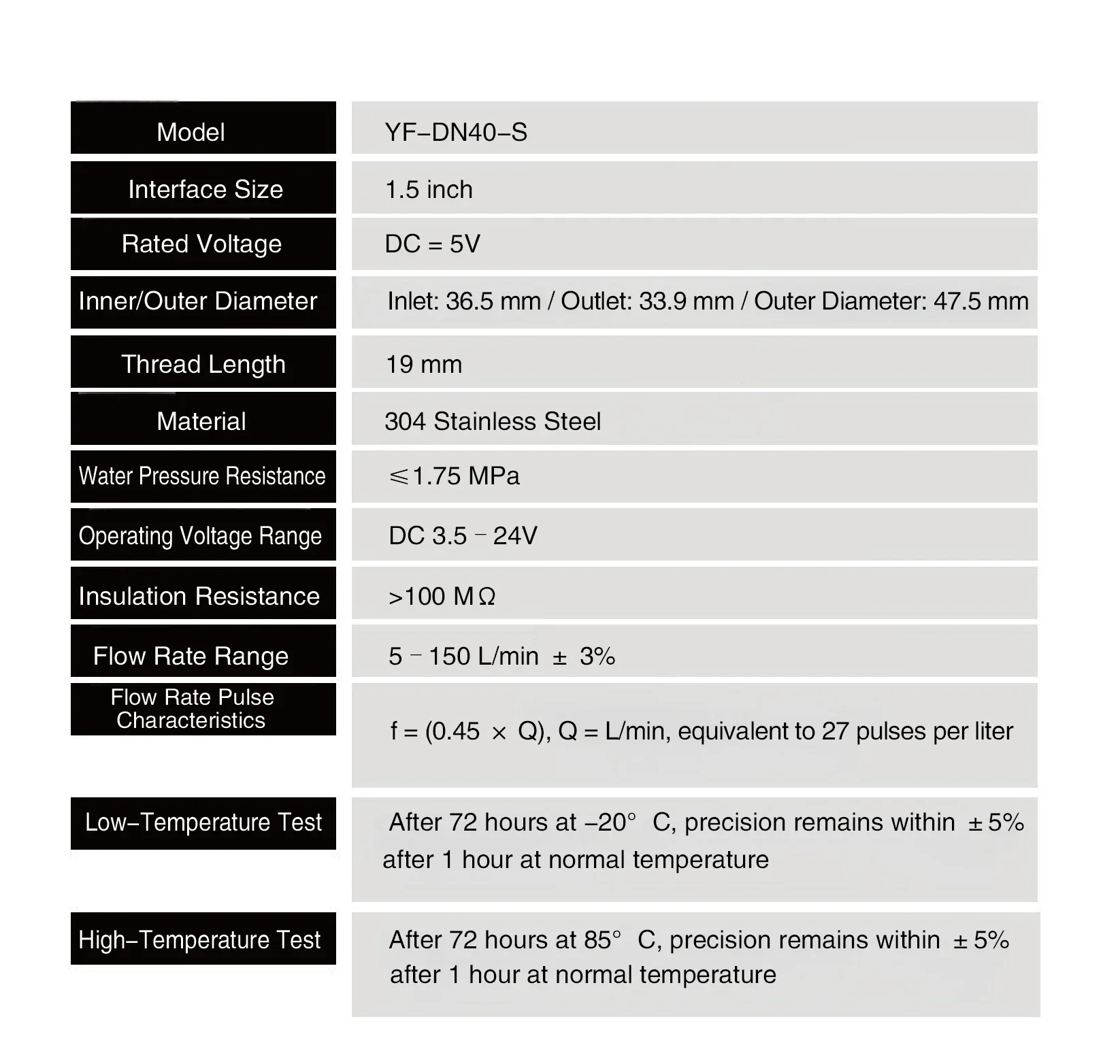

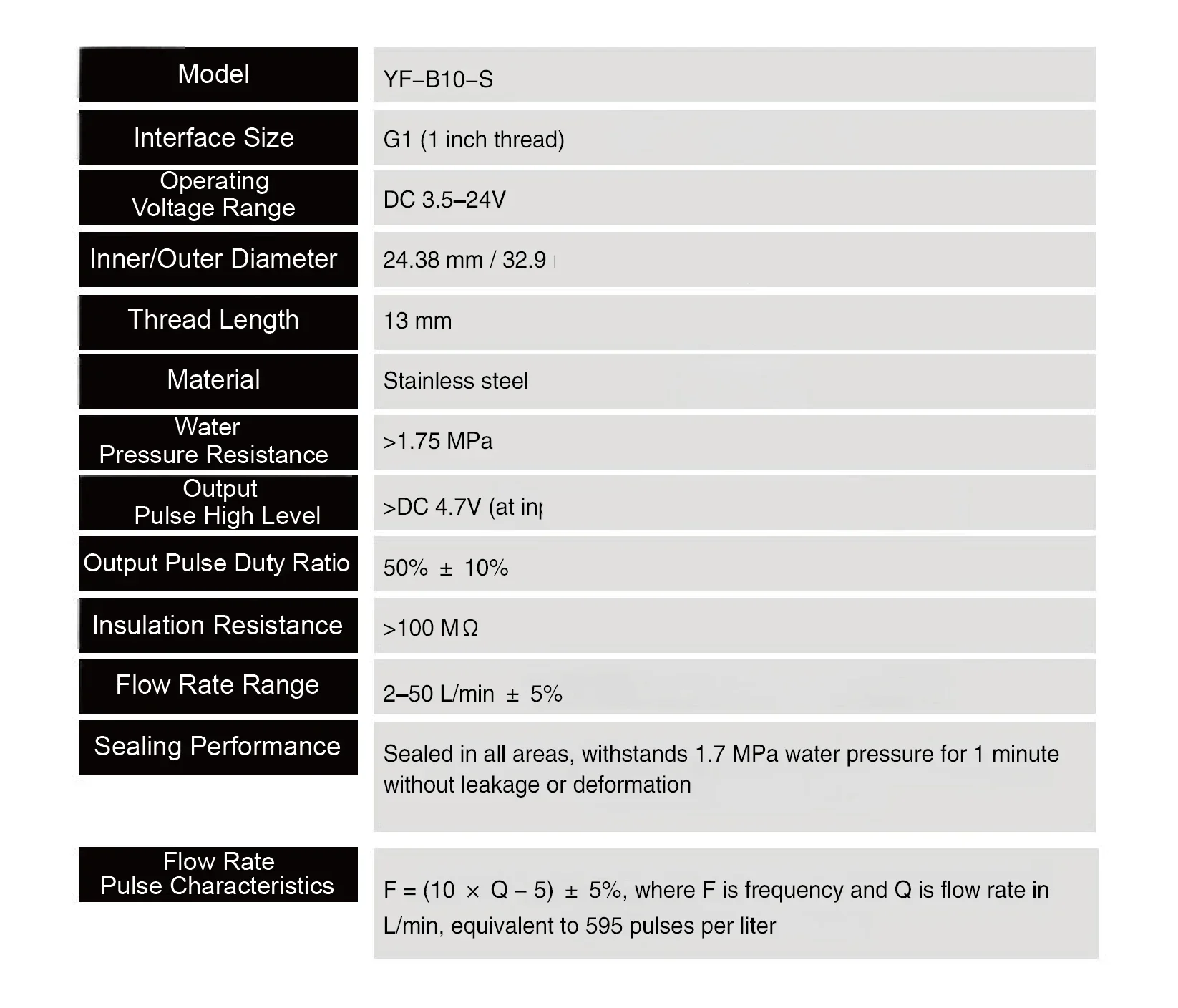

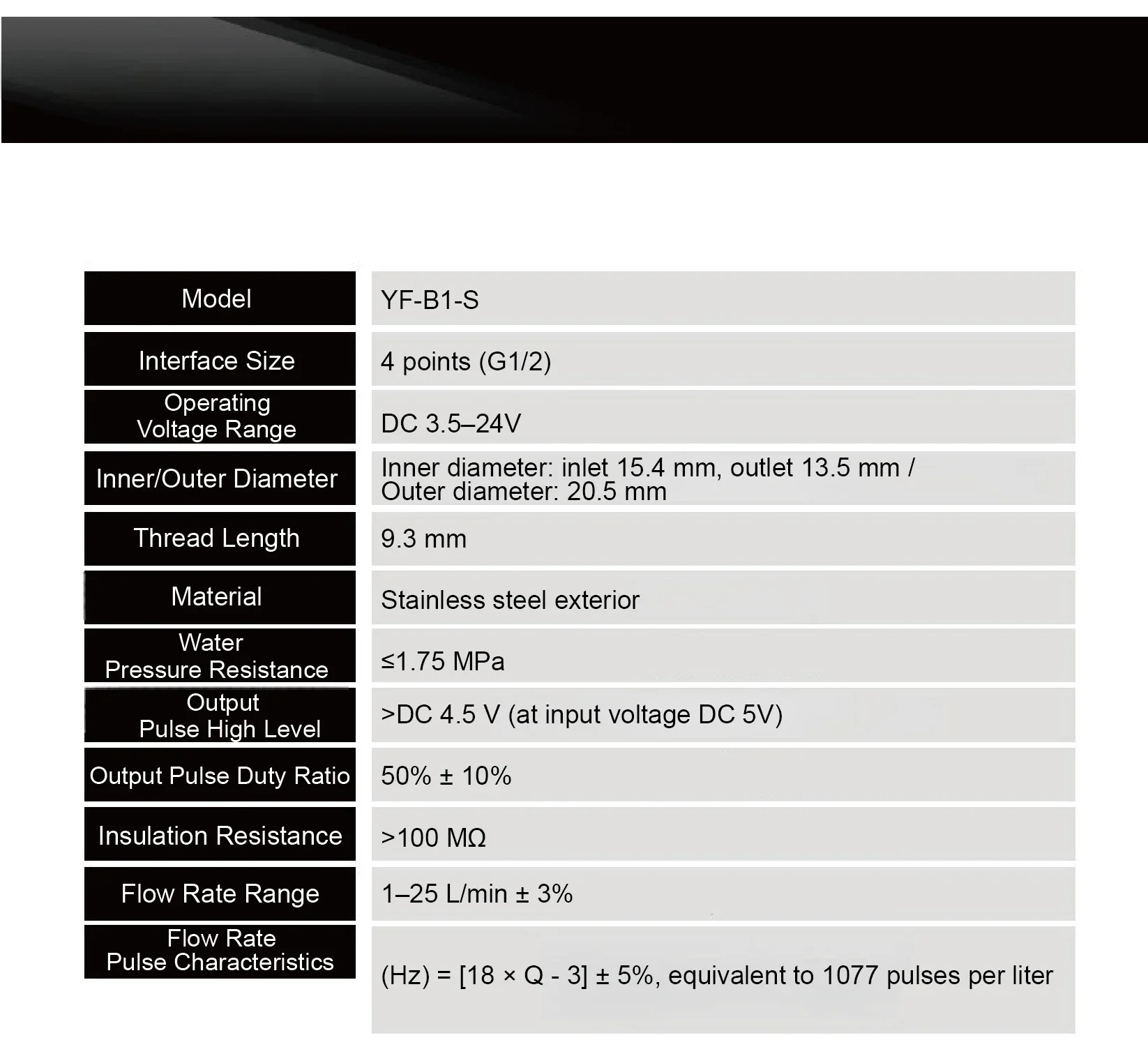

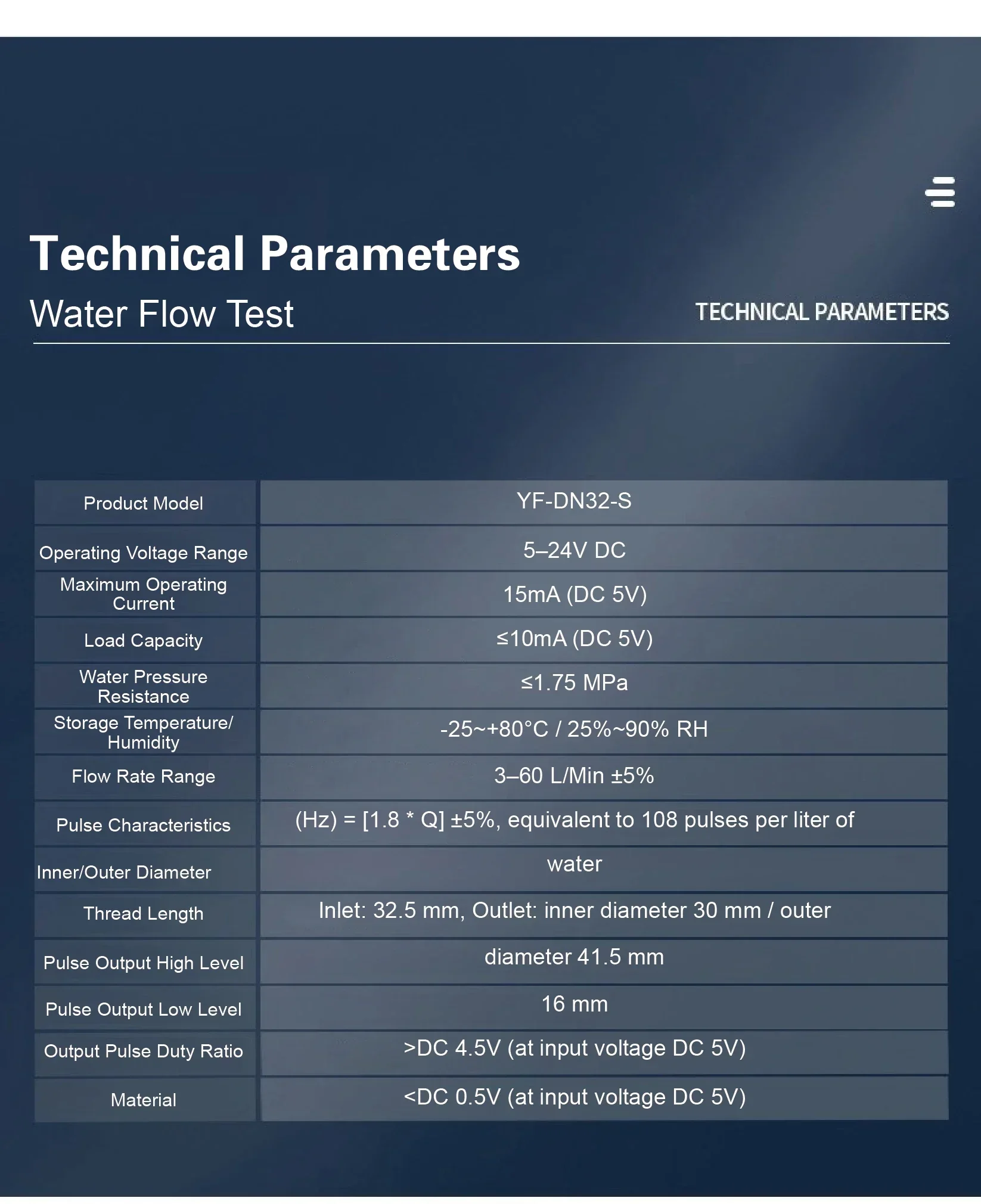

2. PARAMETERS
|
Parameter |
Details |
|
Working Voltage Range |
5-24VDC |
|
Max Operating Current |
15mA (DC5V) |
|
Load Capacity |
≤10mA (DC5V) |
|
Maximum Pressure Tolerance |
≤1.75MPa |
|
Insulation Resistance |
>100MΩ |
|
Temperature/Humidity |
-25~+80°C / 25%~90%RH |
|
Material |
304 Stainless Steel |
3. APPLICATION
Applicable for water dispensers, water heaters, vending machines, and industrial pipelines.
4. FEATURES
Waterproof wiring and high wear resistance.
High precision with low water flow startup.
Sensitive response and durable material.
High-quality design with premium construction.
