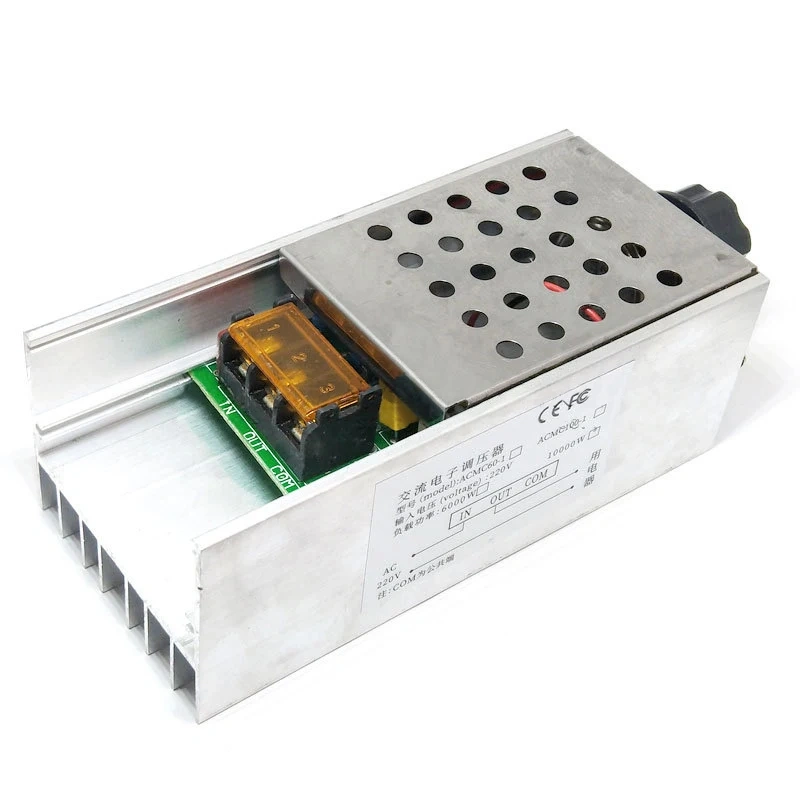

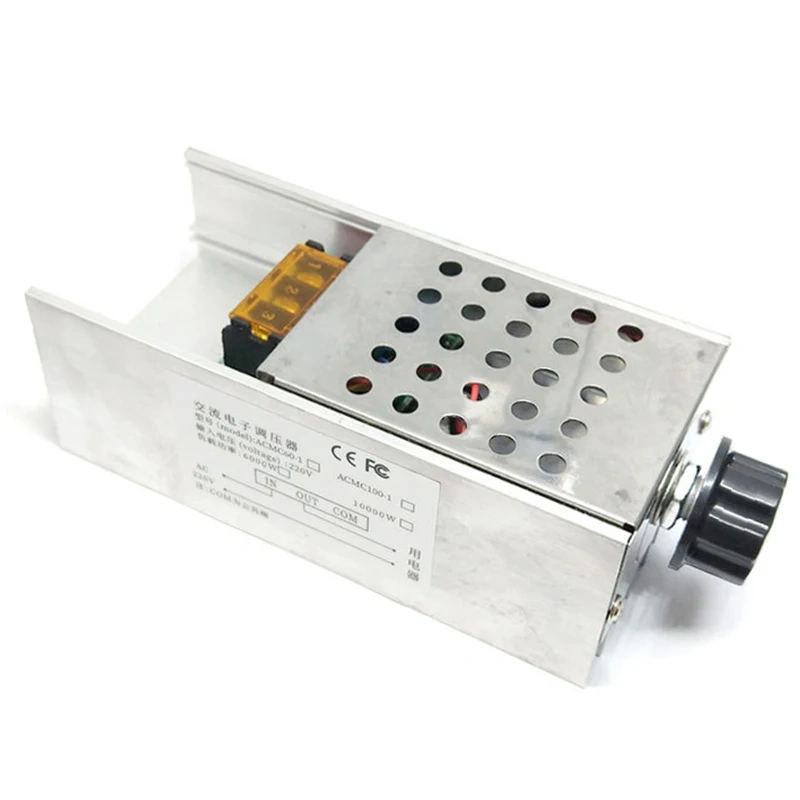

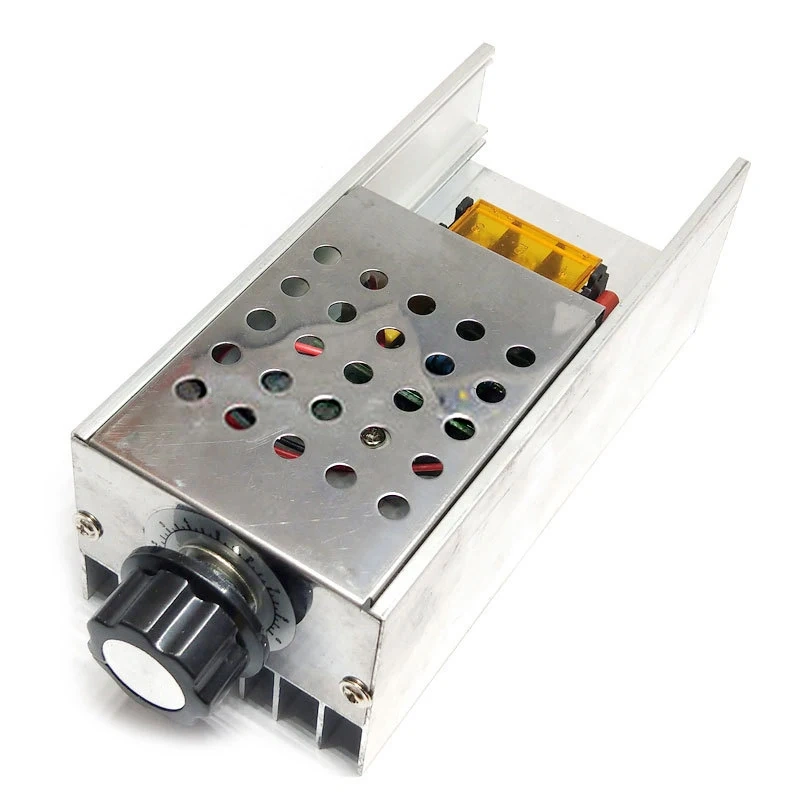

6000W/10000W AC 220V Speed Controller High Power SCR Voltage Regulator Dimmer Switch Speed Temperature Control Thermostat

Features:

Safer design with protective case, suitable for home and factory use.

Using original imported 41A SCR.

Using 1.6 mm FR-4 PCB, reliable and safe welding design.

Upgraded double capacitance circuit design (safe capacitance and metal film capacitance) protects the SCR by reducing surge and voltage spike. Brings more safety and efficiency.

Specification:

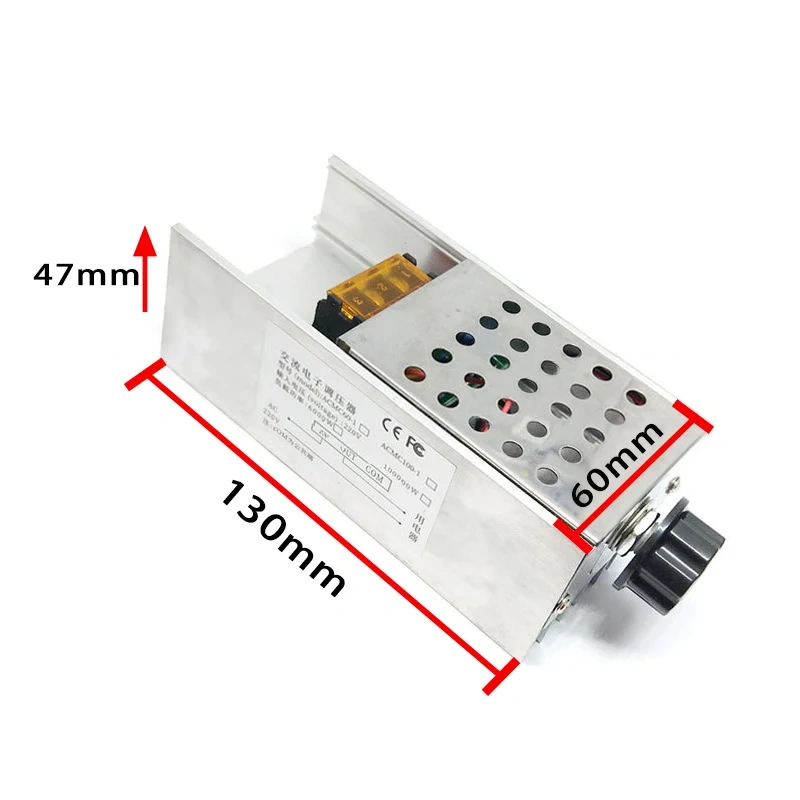

Size: approx. 130 X 60 X 47 mm/5.12 X 2.36 X 1.85"

Knob Diameter: approx. 6 mm/0.24"

Type 1:Max Power: 6KW(max resistive load, 3KW power for normal use recommended)
Type 2:Max Power: 10KW(max resistive load, 5KW power for normal use recommended)

Efficiency: >90%

Work Voltage: AC 220V

Adjust Voltage: AC 0-220V

Please remember to connect load before you adjust the voltage.

SCR in mainly used on resistive load and most single-phase motors. Please check your model series before you buy.
