Description

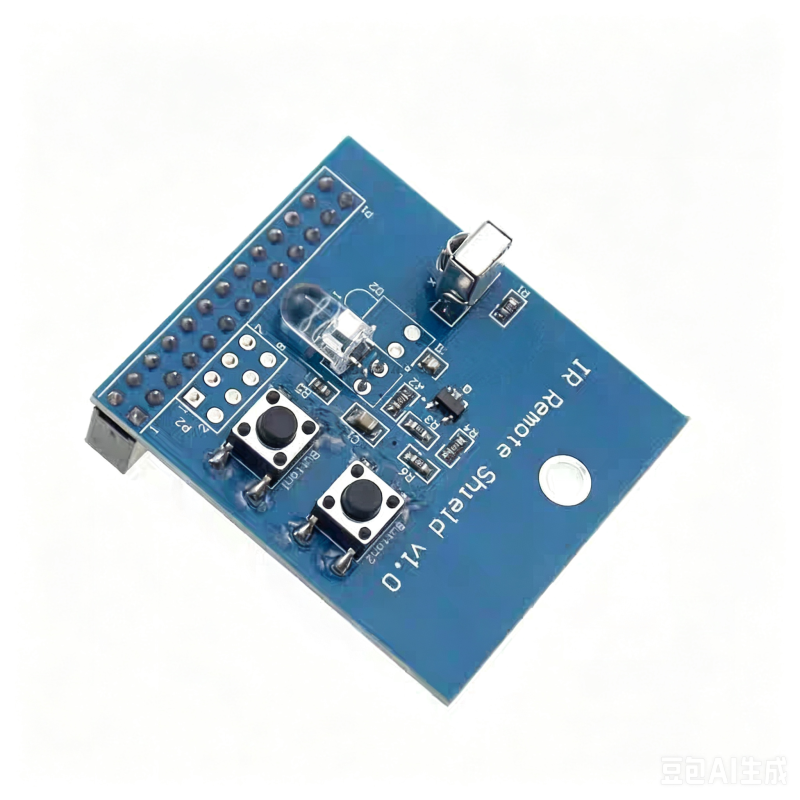

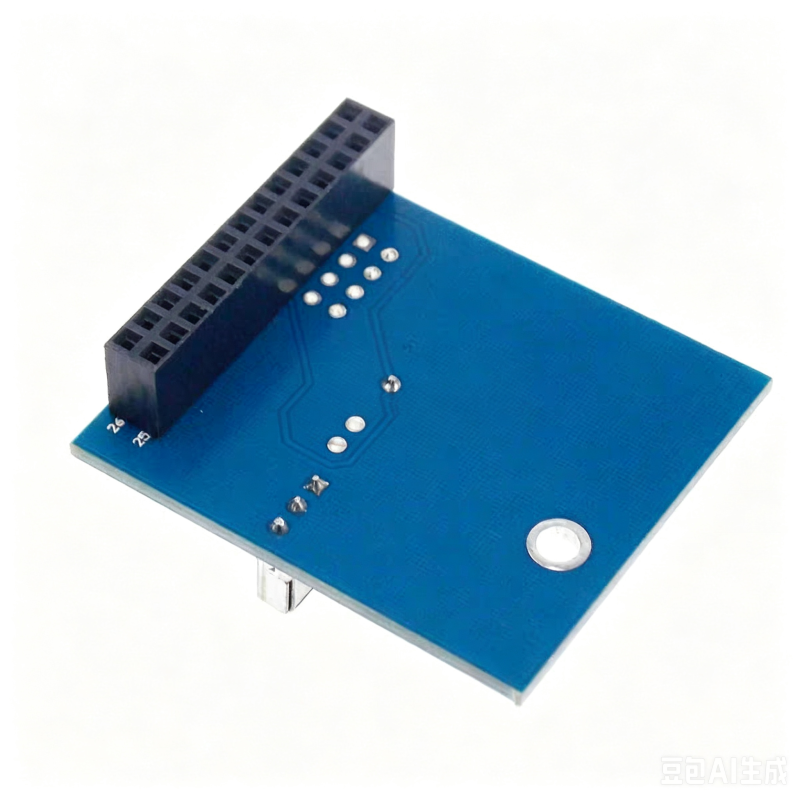

This is a dedicated infrared control expansion board for Raspberry Pi. Users can use the Raspberry Pi 2B/B+expansion board to complete various infrared remote control and remote control functions
Application scenario:
1. Remote turntable: You can first record the remote control function of the electrical appliances through the expansion board, and then remotely control the Raspberry Pi to emit infrared, thereby controlling the electrical appliances
2. Timing switch electrical appliances: By using an expansion board, it is possible to switch electrical appliances at a fixed time
3. Remote control of the raspberry pie cart, which can be remotely controlled through an infrared remote control
4. Audio and video playback control, XBMC, MPLAYER, etc
Function Description:
1. Infrared reception function
Working frequency:38KHZ
Receiving distance:18-20m
Receiving angle:+/-45°
2. Infrared emission function
Wavelength:940nm
Launch distance:7-8m

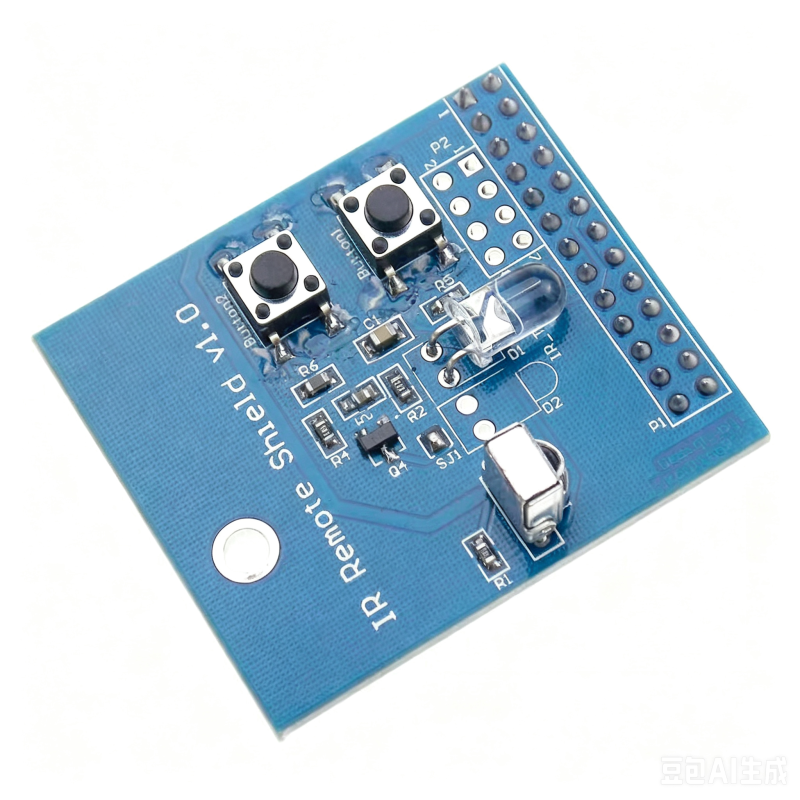

3. Support infrared dual LED emission, with stronger emission effect (users need to weld the backup emission tube D2 and disconnect SJ1)
4. Support powerful LIRC software. With LIRC and expansion boards, users can almost copy all infrared remote control functions (TV, amplifier, DVD, and other electrical remote controls) and control your various electrical devices through commands
5. Supports the XBMC system, allowing users to use the infrared function of the expansion board in the XBMC environment
6. Supports two GPIO buttons, and users can configure button functions through programming
