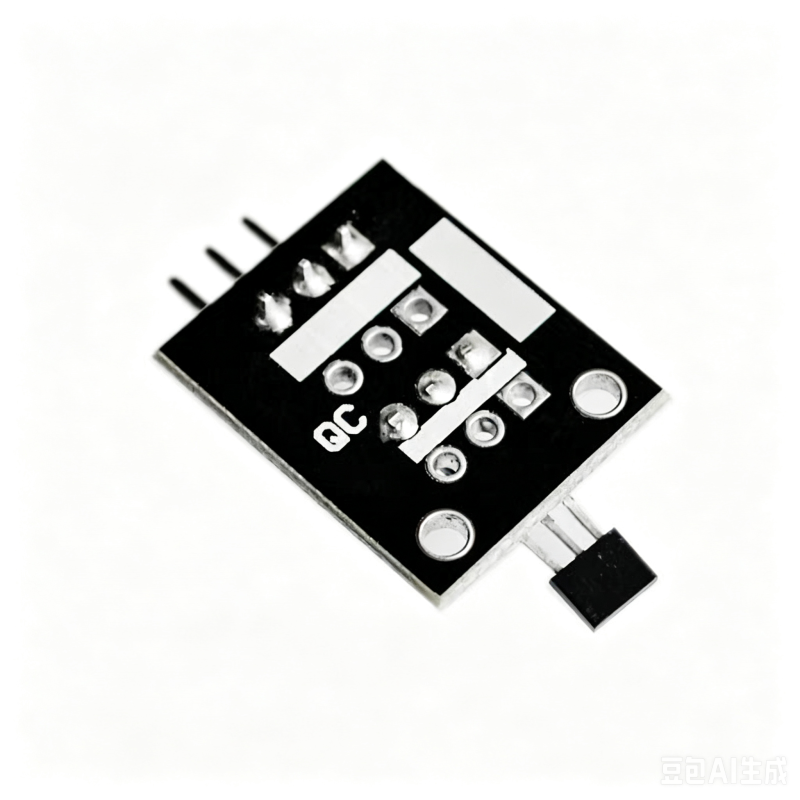

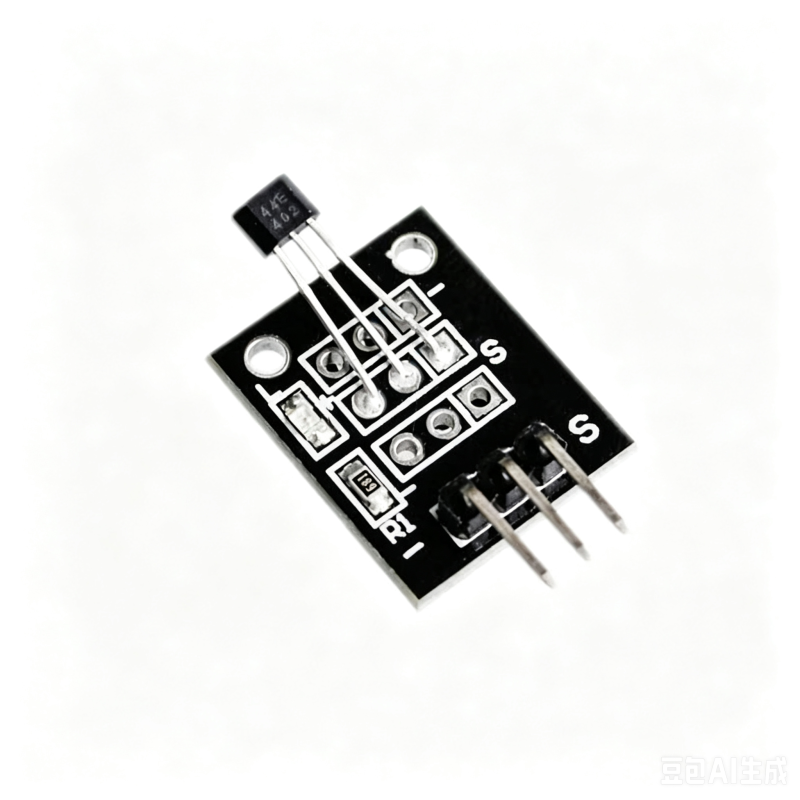

KY-003 Hall Magnetic Force Sensor

Working Voltage: 4.5V-24V
Series 3144, hall switch integrated circuit using hall effect principle
Non-Contact Switch
Hall Switch Integrated Circuit Using hall Effect Principle,
It is by the Voltage Regulator, Hall Voltage Generator, Differential Amplifier, Schmidt Triggers, Temperature Compensation and the Open Collector Output Stage Circuit Composed of Magnetic Sensitive Sensor Circuit
Its Input For the Magnetic Induction Intensity, the Output is a Digital Voltage Signal
