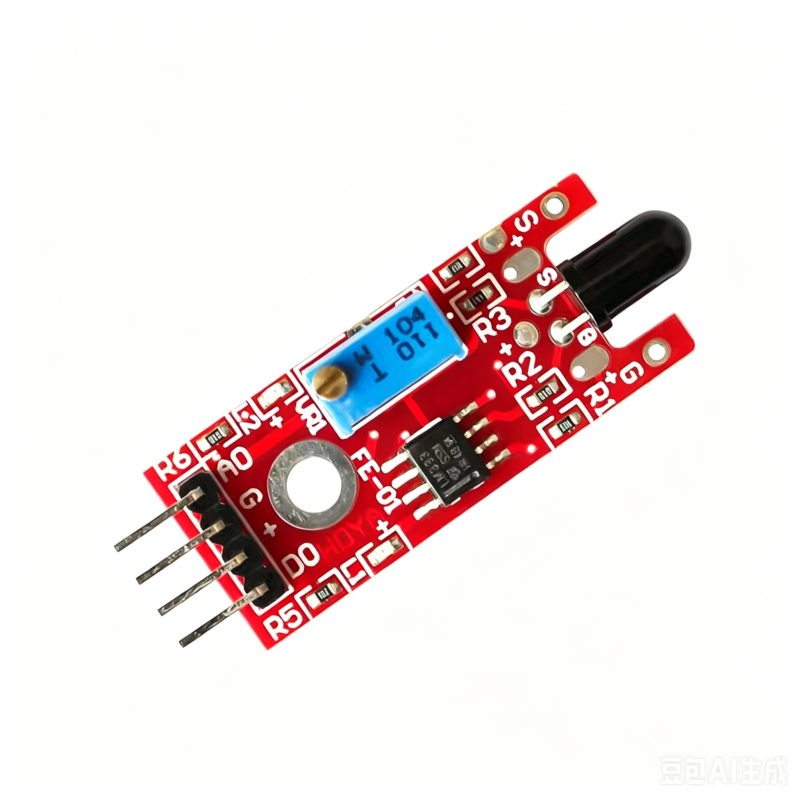

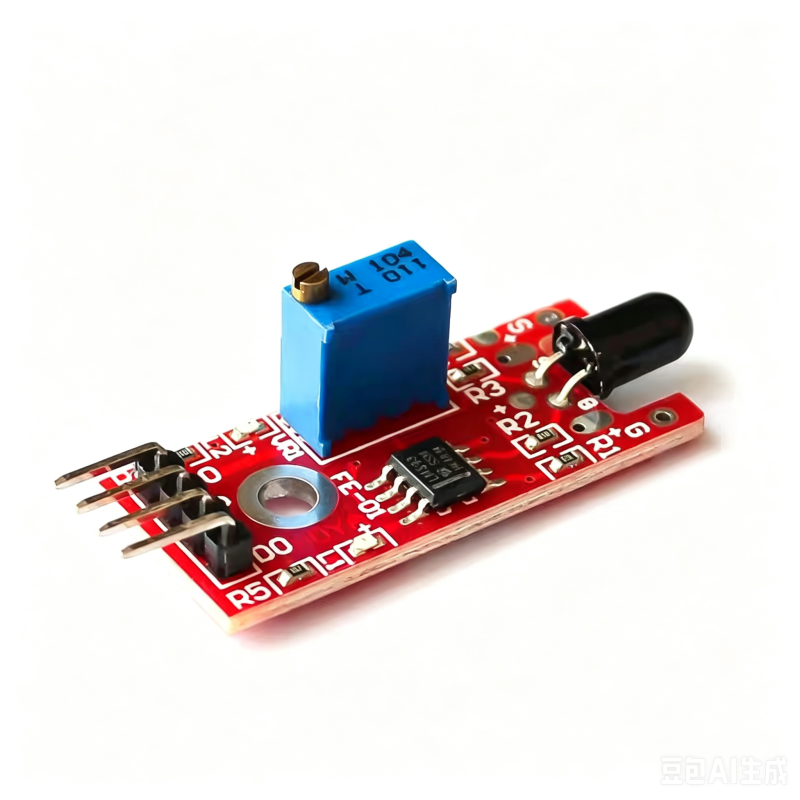

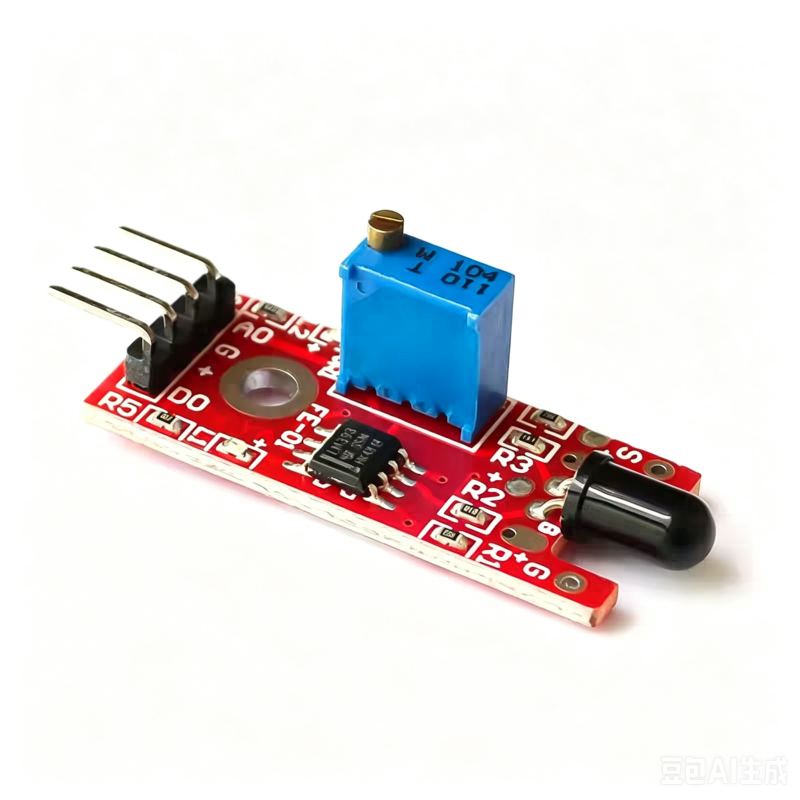

KY-026 Flame Sensor

1.High sensitivity IR receiver
2.Extremely sensitive to wave between 760-1100nm
3.Power supply indicator lamp
4.Comparator output indicator lamp
5.AO, real-time thermister voltage signal output
6.DO, high / low electric level signal output
7.Analog quantity output
8.Threshold rollover electric level output
9.Threshold adjusted by potentiometer
10.Detection Angle Range: About 60 degrees
11.Power Supply: 0-15 V DC
12.Hole Inner Diameter: Approx. 3mm
13.Size (L x W): Approx. 36 x 16mm
