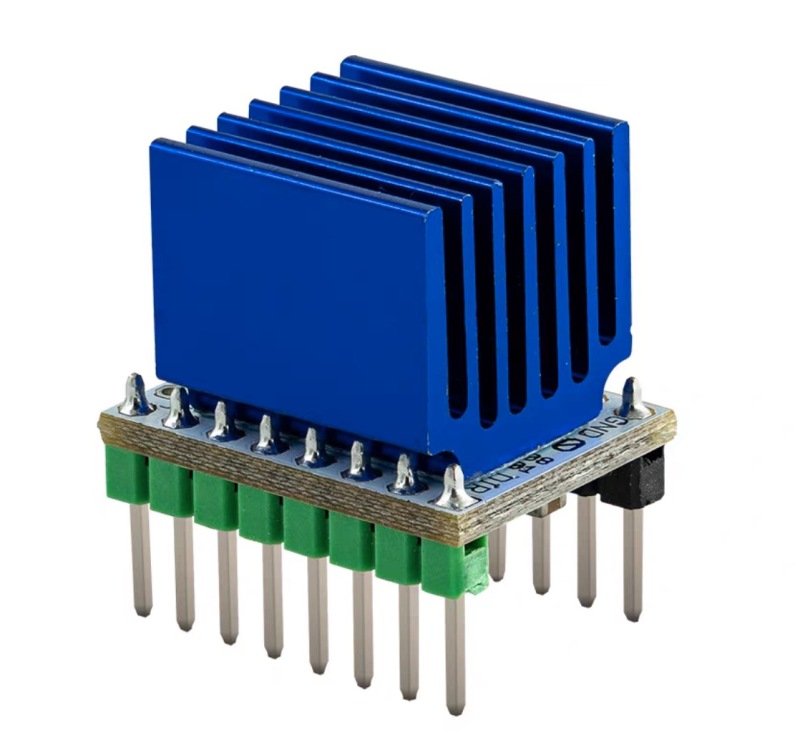

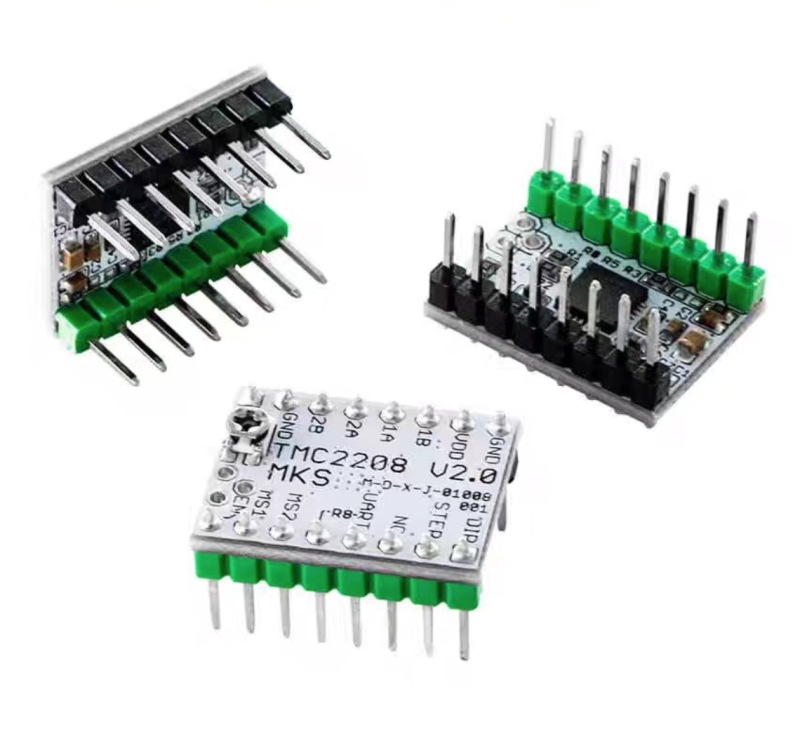

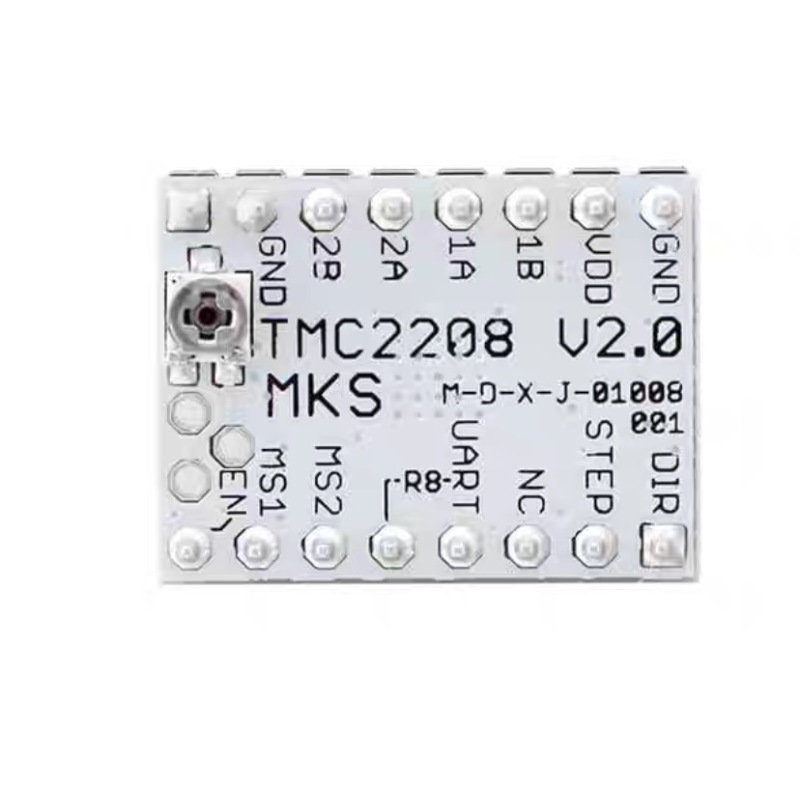

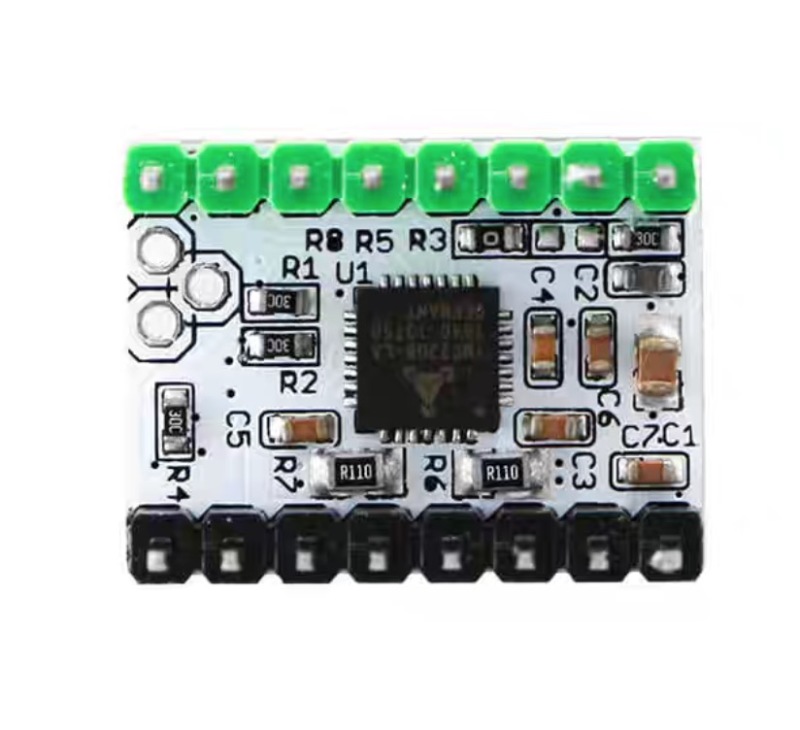

Makerbase TMC2208 Stepper Motor Driver 3D Printer Parts Ultra Silent

Features:
1:Ultra quiet
2:Large heat sink,good heat dissipation
3:Support uart mode by set jumper caps instead of welding on mks gen_l V2.0,skr1.3/1.4,mks sgen_l.
Parameter:
1:Default current:1.25a
2:Max current:2.0a
3:Logic voltage:3.3v/5v
4:Input voltage:4.75v-36v
5:Microstep:up to 1/256
6:Mode:dir/step,uart

Driver current regulation:
1:Verf measures the voltage of Gnd and potentiometer middle.
2:Please DO NOT connect the motors when measuring the voltage, or it's easy to burn the drive.
3:Please connect the power supply when measuring voltage as well, do not connect only the USB power.
4:Please pay special attention to the direction, do not insert wrongly!
Driver current algorithm:
I=Vref Default I=1.25A
