Your position: Home > Development Boards > 01Studio > Microphone Array Module

1/1

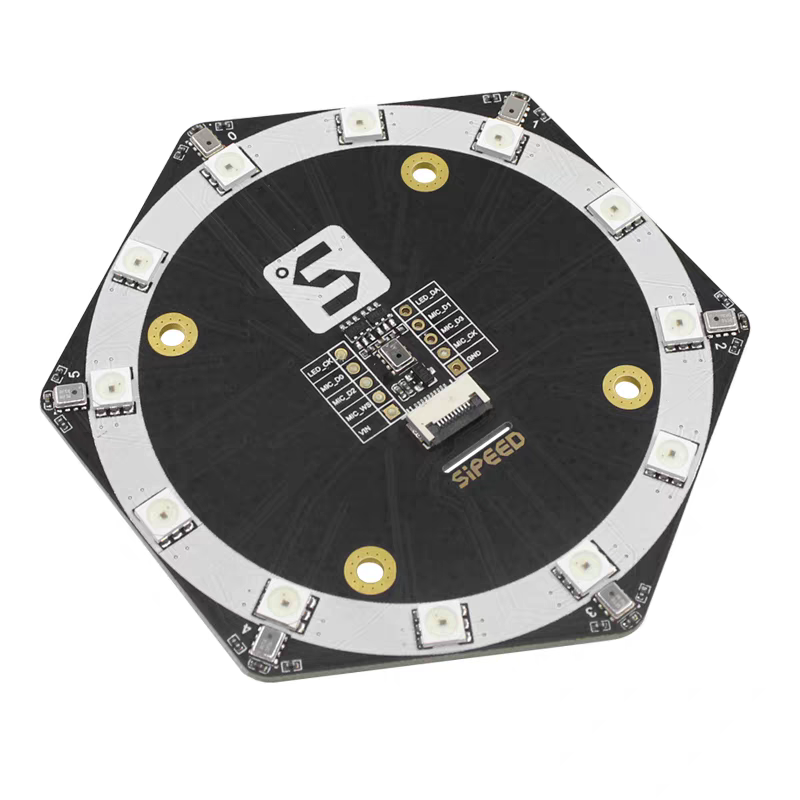

Microphone Array Module

Name: Microphone Array Module
Brand: MY SHOP
SKU: ELY1811
Price: 15.82 USD
Availability: InStock

SKU: ELY1811

0.0 (0)

0 Sold

$15.82

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Description

Microphone:6+1 MSM261S4030H0 to form an array
Lighting:12 LEDs are cascaded through double signal lines(adjustable color and brightness)
ports:10P FPC port and 2*5P 2. 54mm terminal port
Supply voltage:5V @800mA

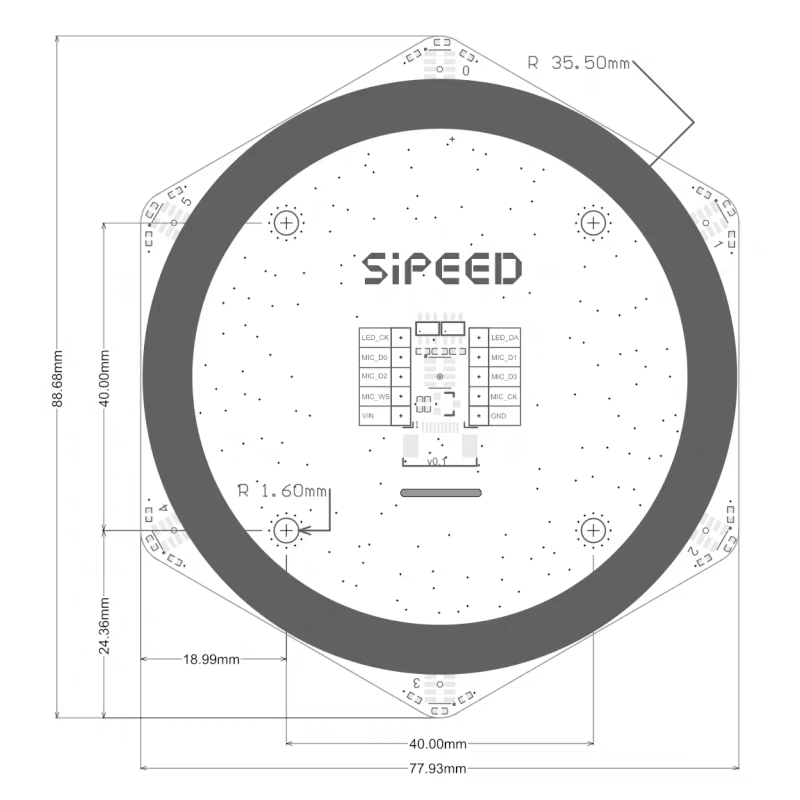

Module size:78.1mm*88.8mm
Working temperature:-30℃~85℃
Sound pressure level:140dB SPL
Sensitivity: -26(dB,dBFS @1kHz 1Pa)
SNR:57dB(20kHz bandwidth,A-weighted)
Clock frequency:1.0-4.0MHz (normal mode),150-800kHz (low power mode)
