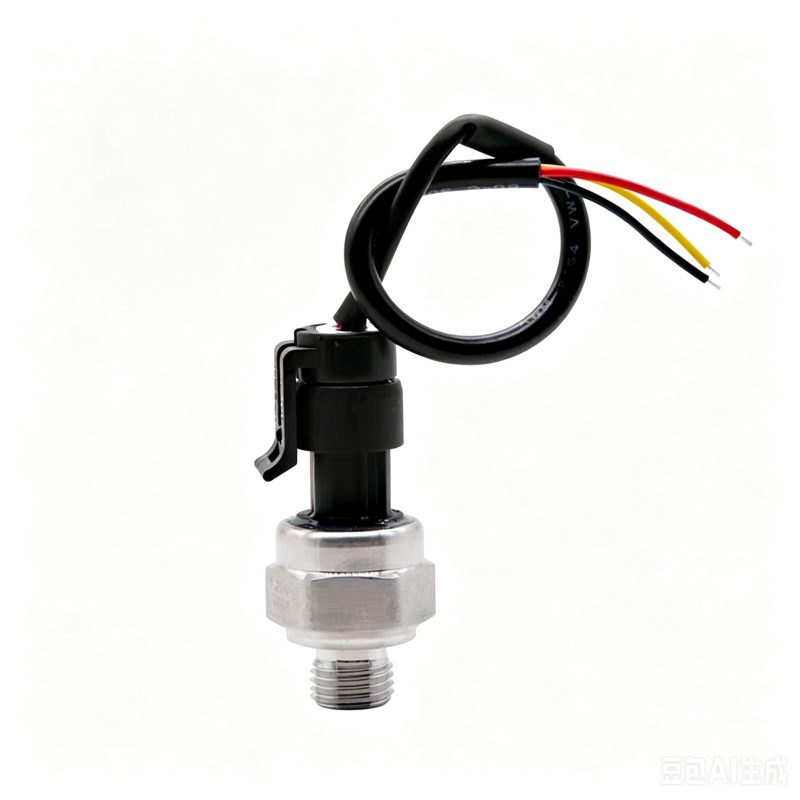

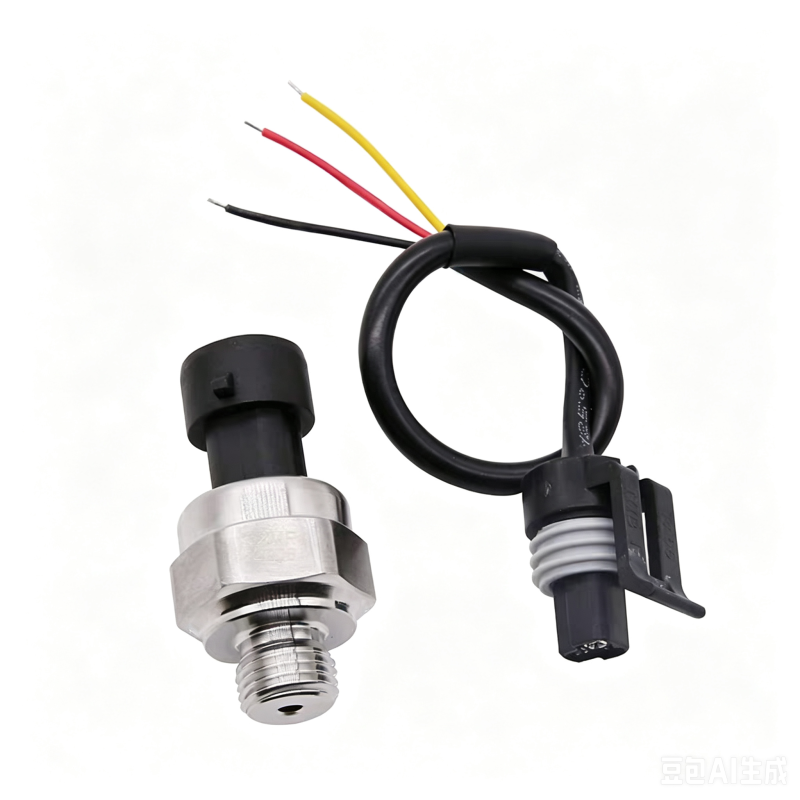

Pressure Sensor for Water Air Oil

- Working Voltage: 5VDC
- Output Voltage: 0.5-4.5 VDC
- Sensor material: Carbon steel alloy
- Working Current: <=10 mA
- Working Pressure Range: 0-1.2 MPa
- Cable length: 17cm / 6.69inch
- Sensor Length: Approx. 5.1cm / 2.01inch
- Screw Diameter: 1.3cm / 0.51inch
- Destroy Pressure: 3.0 MPa
- Working TEMP. Range: -20 to 85 Celsius Degree
- Storage Temperature Range: 0-85 Celsius Degree
- Measuring Error: +_ 1.5 %FSO
- Temperature Range Error: +_3.5 %FSO
- Response Time: <=2.0 ms
