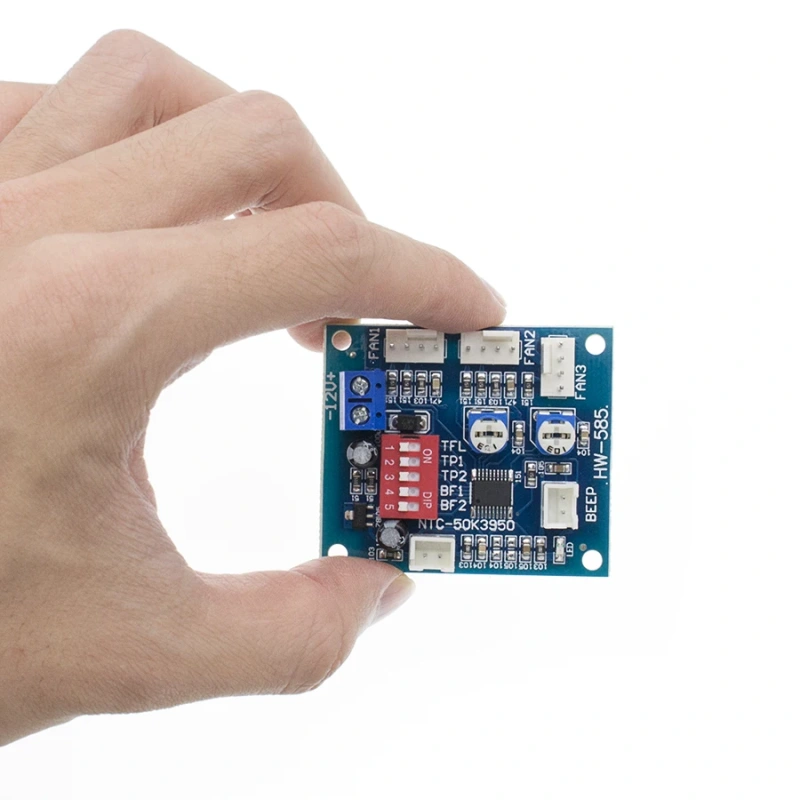

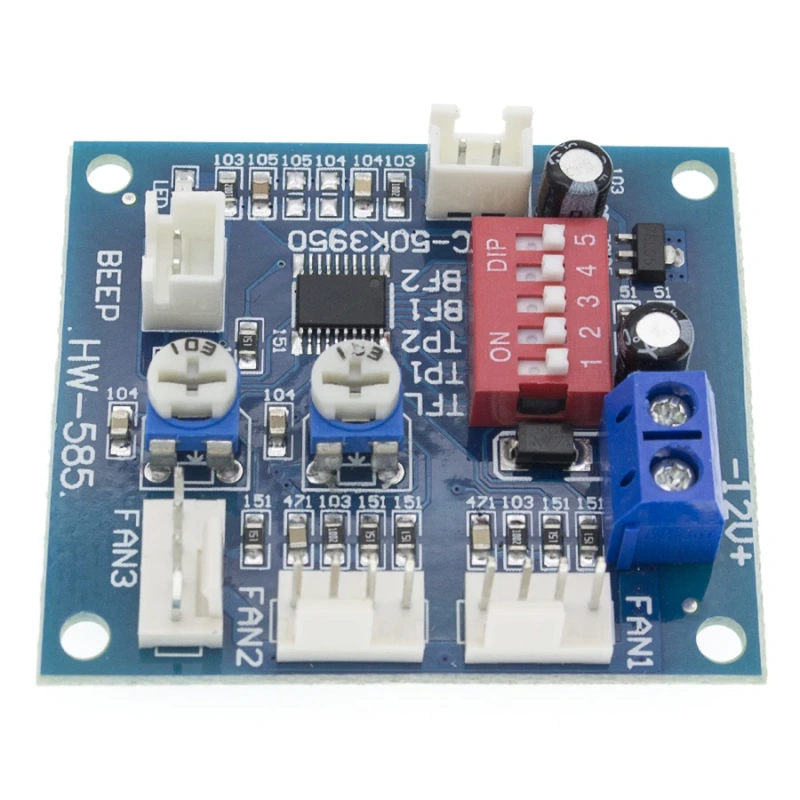

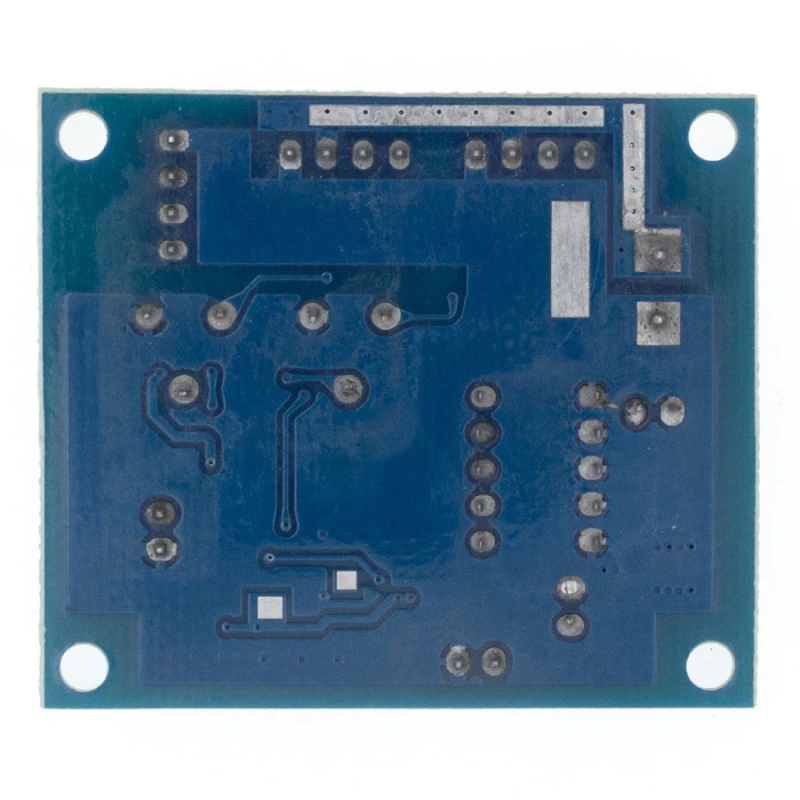

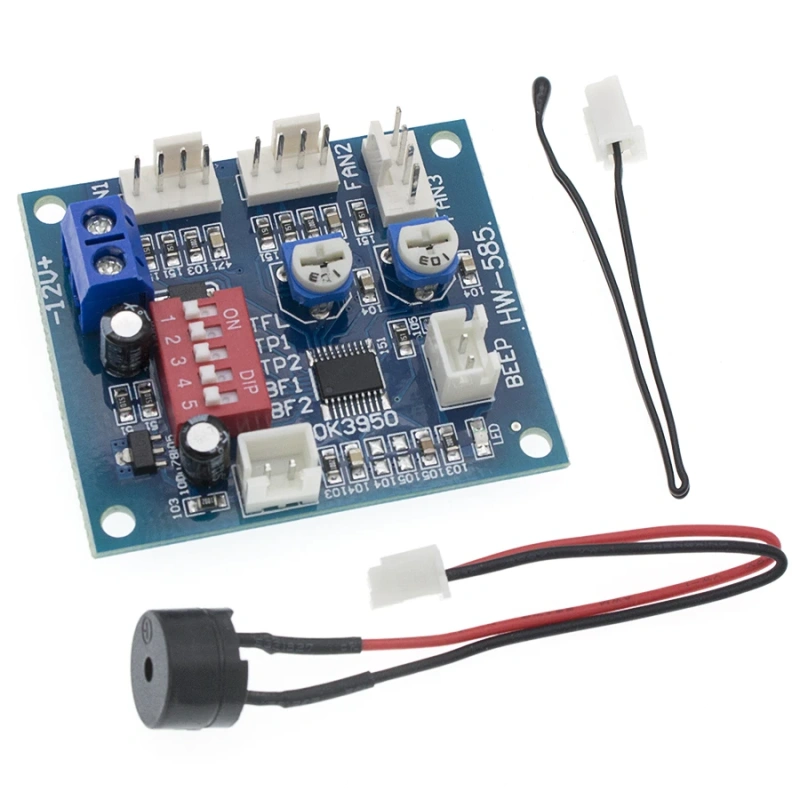

DC 12V 5A PWM PC CPU Fan Temperature Control Speed Controller Board Speed Controller Temperature Probe

Name: DC 12V 5A PWM PC CPU Fan Temperature Control Speed Controller Board Speed Controller Temperature Probe
Brand: MY SHOP
SKU: ELZ1142
Price: 1.35 USD
Availability: InStock

SKU: ELZ1142

0.0 (0)

0 Sold

$1.35 ~~$0.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Working voltage:DC12V
Circuit load capacity: maximum current per output 5A, the bus currents up 9A
Output Range: The first channel 20% -100%, or 40% -100% (TFL = ON)
The second channel and the third channel 10% -100%
(Note: Above range only for PWM range, the actual control effect will vary depending on the fan.)
Temperature probe parameters: 50K B = 3950
Thermostat temperature zone error: error depending on the temperature probe, generally 3-5%
Stall alarm minimum speed: 700-800 rpm

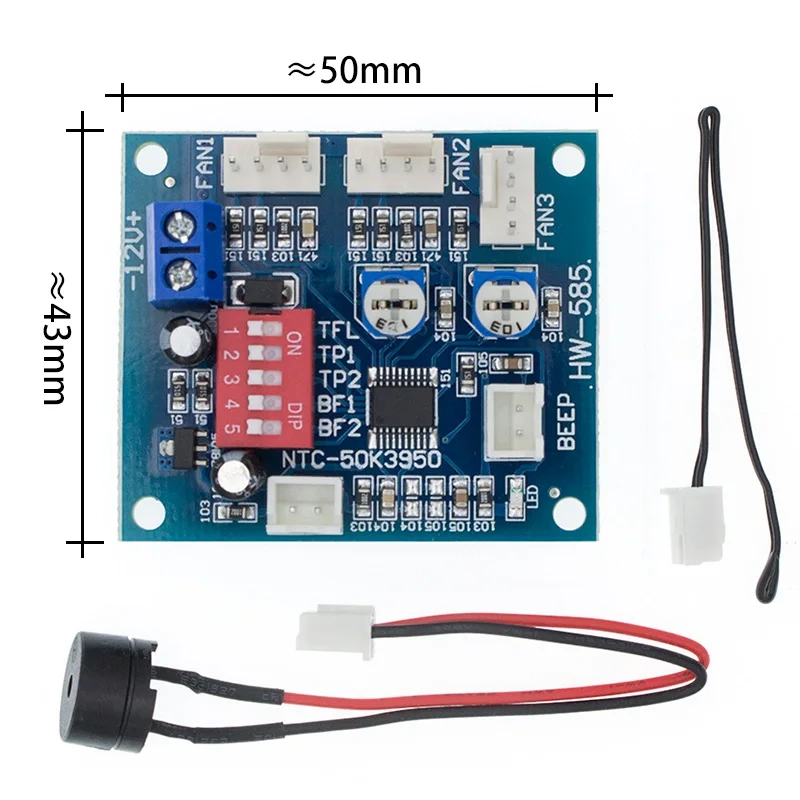

Board size: 50mm*43mm*13mm
Positioning hole : 44mm*37mm, diameter 3mm
