Your position: Home > Development Boards > 01Studio > PYIOT-LORA E22 Communication Wireless Module with 433M Antenna

1/1

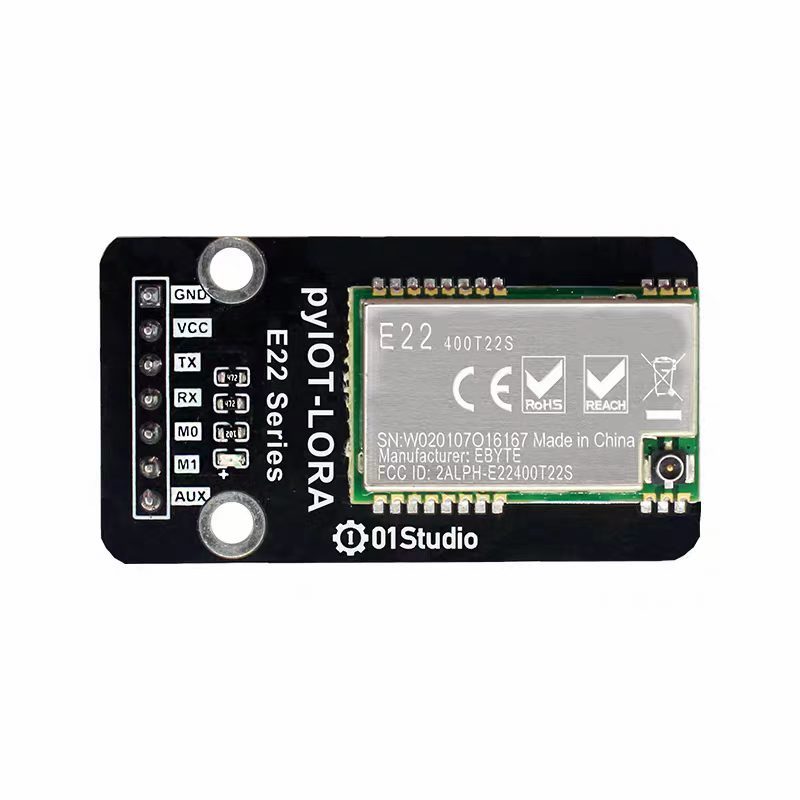

PYIOT-LORA E22 Communication Wireless Module with 433M Antenna

Name: PYIOT-LORA E22 Communication Wireless Module with 433M Antenna
Brand: MY SHOP
SKU: ELY1808
Price: 10.73 USD
Availability: InStock

SKU: ELY1808

0.0 (0)

0 Sold

$10.73

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Description

Working frequency band:410~493MHz(433M)
RF chip:SX1268
Transmission power:22dBm
Communication distance:5000m
Communication interface:UART serial port
Antenna:IPEX
Emission current:110mA
Supply voltage:2.3-5.2V
Working temperature:-40℃-85℃
Baud rate:1200-115200(default 9600)
Air rate:0.3k-42.5kbps
Received length:1024 bytes(automatic subpacket)
Module size:45*25mm
