Description
1. Suitable for AC or DC 5-400v inductive load (less than 1000w load)
2. Rc absorption circuit, absorbing induced electromotive force of inductive load
3. There are varistors, to prevent excessive voltage fluctuations, excessive current, resulting in relay contact adhesion
4. Provide anti-interference ability of the circuit
5. Use crimp terminals to make wiring easier
Module features:

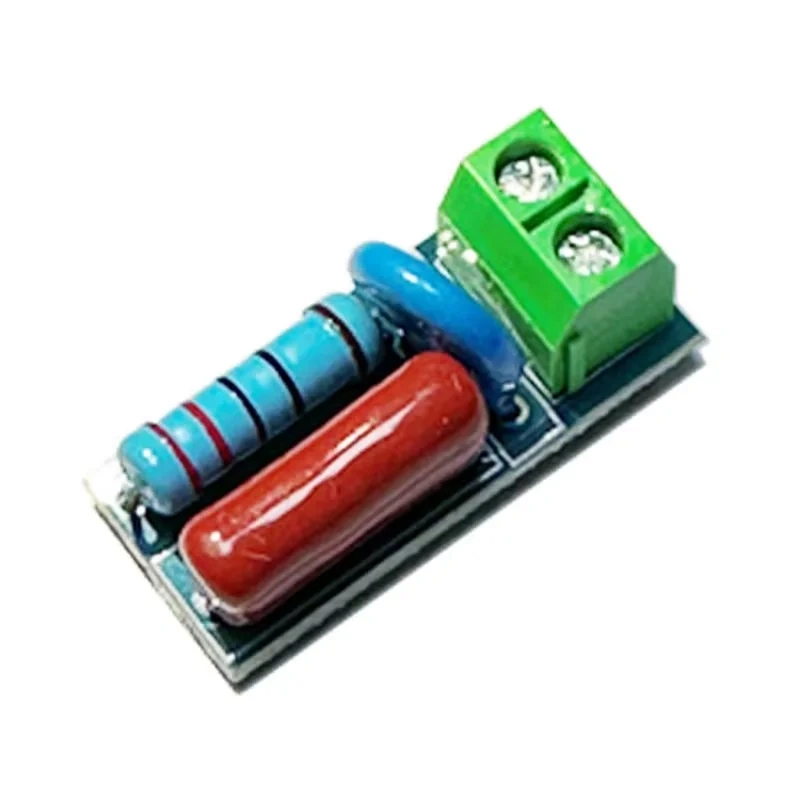

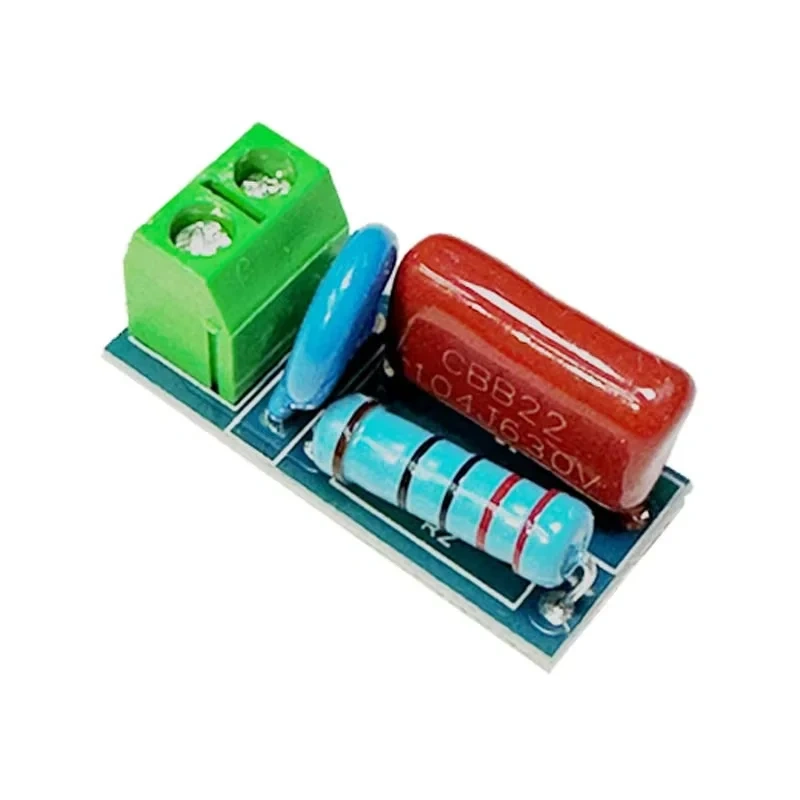

RC Absorption Loop Module is a circuit structure in which a resistor is connected in series with a capacitor and connected in parallel with a switching device. It is used to improve the voltage and current waveforms borne by electronic power devices when they are turned on and off. The RC absorption circuit module can prevent the induced electromotive force generated at the moment of inductive load connection and disconnection from damaging switch devices such as relays and thyristors, prevent electromagnetic interference, and increase the anti-interference ability of the microcontroller
