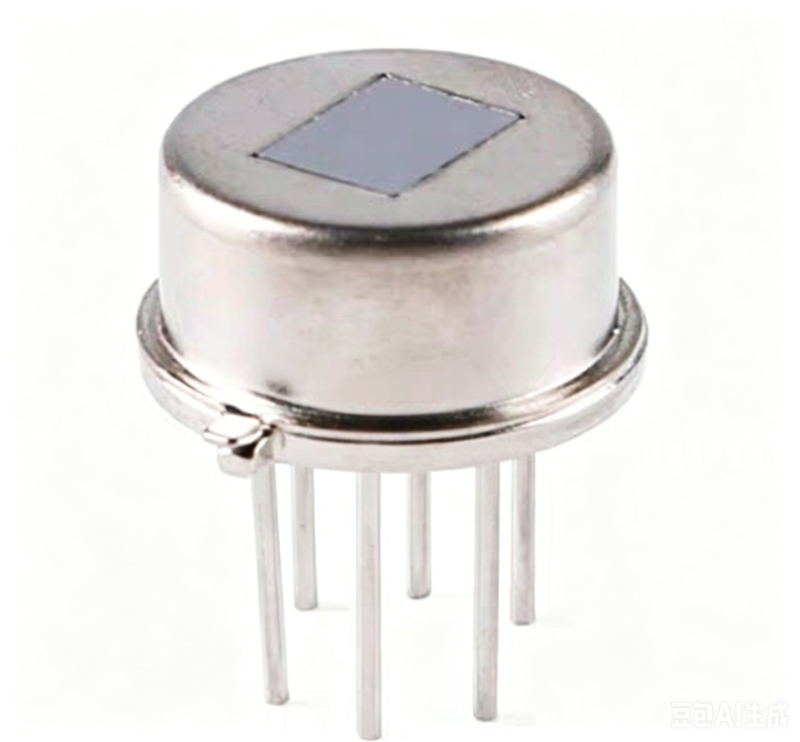

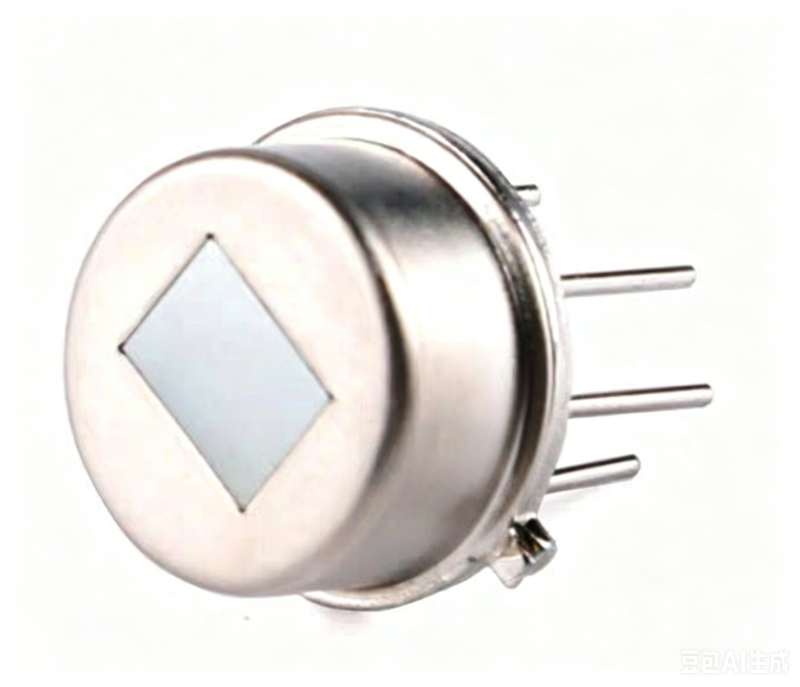

RDB226-S Human Body Infrared Induction Sensor

Color:silver
Supply voltage:0.3-4.5V
Storage temperature:-40~125℃
Working voltage:1.5-4.5V
Working temperature:-25~85℃
Working current:10μA
Features:
High-precision AD signal processing
Differential signal input mode,strong anti-interference ability
It has the functions of sensitivity adjustment,delay time adjustment,and light sensitivity enable control
The enable terminal enables whether the sensor is output on
Wide voltage power supply 1.5~4.5V,low power consumption
Digital TTL signal output
