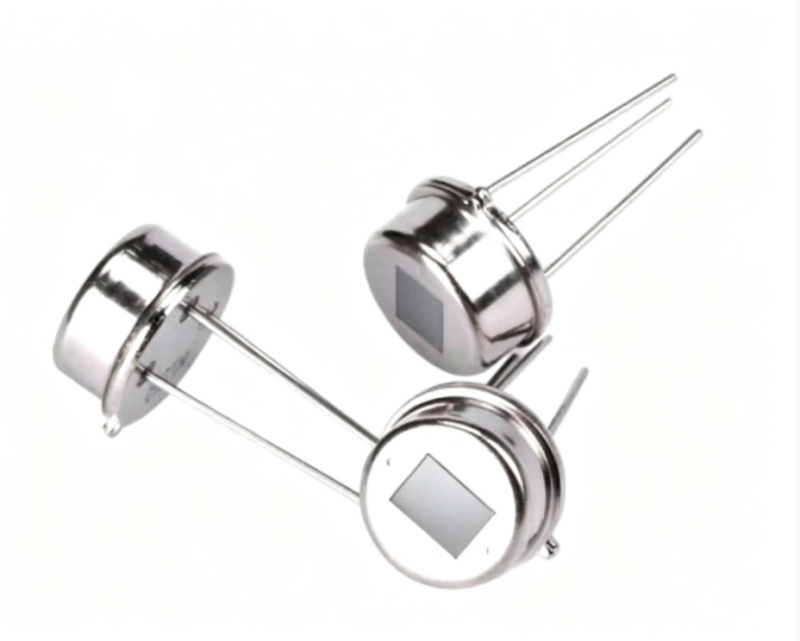

RE200B Human Pyroelectric Infrared Sensor

Name:RE200B Human Pyroelectric Infrared Sensor
Sensitive element area:2.0×1.0mm²
Substrate thickness:0.5mm
Wavelength:7-14μm
Average transmittance of>75%
Output signal>2.5V
Noise<200mV
Balance<20%(working voltage)
Operating voltage:2.2-15V
Operating Current:8.5-24μA(VD=10V,Rs=47kΩ,25℃)
Source voltage:0.4-1.1V(VD=10V,Rs=47kΩ,25℃)
Working temperature:-20 ℃~+70 ℃
Storage temperature:-35 ℃~+80 ℃
Field of view:139°×126°
