Features:
1. Reliable Performance: Experience unwavering quality with the SG3525 PWM controller module, a proven and extensively tested device ensuring stable and dependable operation for all your project needs.
2. Precision Control: Tailor your power delivery with high-accuracy PWM outputs; this PWM control board allows fine-tuning of voltage or current by adjusting the duty cycle, granting you complete control over your power schemes.
3. Adjustable Frequency: Customize your PWM output to match your precise requirements, with a flexible frequency range from 200Hz up to 100kHz, making this PWM control board module versatile for a multitude of applications.
4. Built-In Protections: Work with confidence knowing the SG3525 PWM regulator module comes with multiple safety features, including over-temperature, overload, and short-circuit protections to safeguard your projects from potential damage.
5. Versatile Applications: The SG3525 adjustable resistors PWM controller is ideal for a wide range of uses, from DIY electronics to industrial controls, thanks to its functionality and the ability to manage and modify power output with precision.

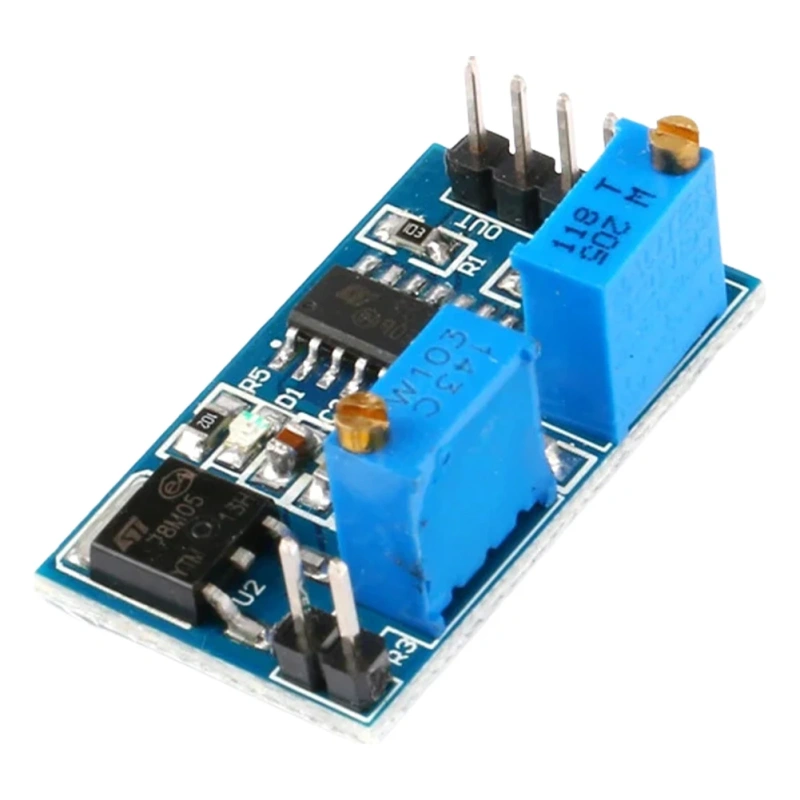

Specification:Origin: Mainland China1. Onboard SG3525APWM control chip
2. Onboard 78M05 voltage regulator chip provides reliable reference voltage

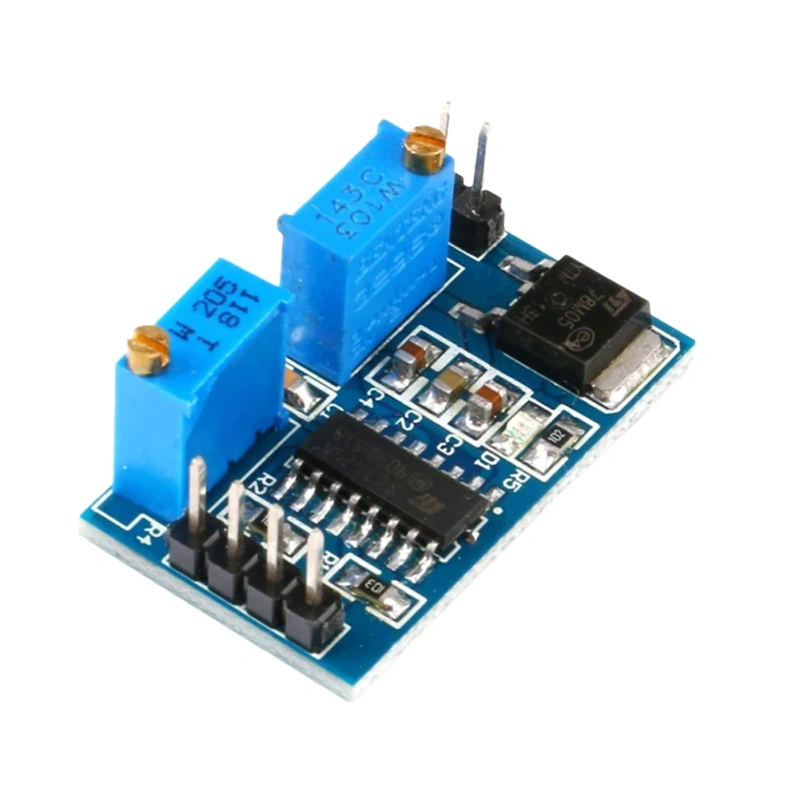

3. There are two precision adjustable resistors on the board, R3 controls the duty cycle and R4 controls the frequency.
4. Onboard power indicator light
5. Working voltage: 8~12V
6. Frequency range: 200HZ-100KHZ adjustable
7. Duty cycle: 0 to 100% adjustable
8. Output amplitude: 5V

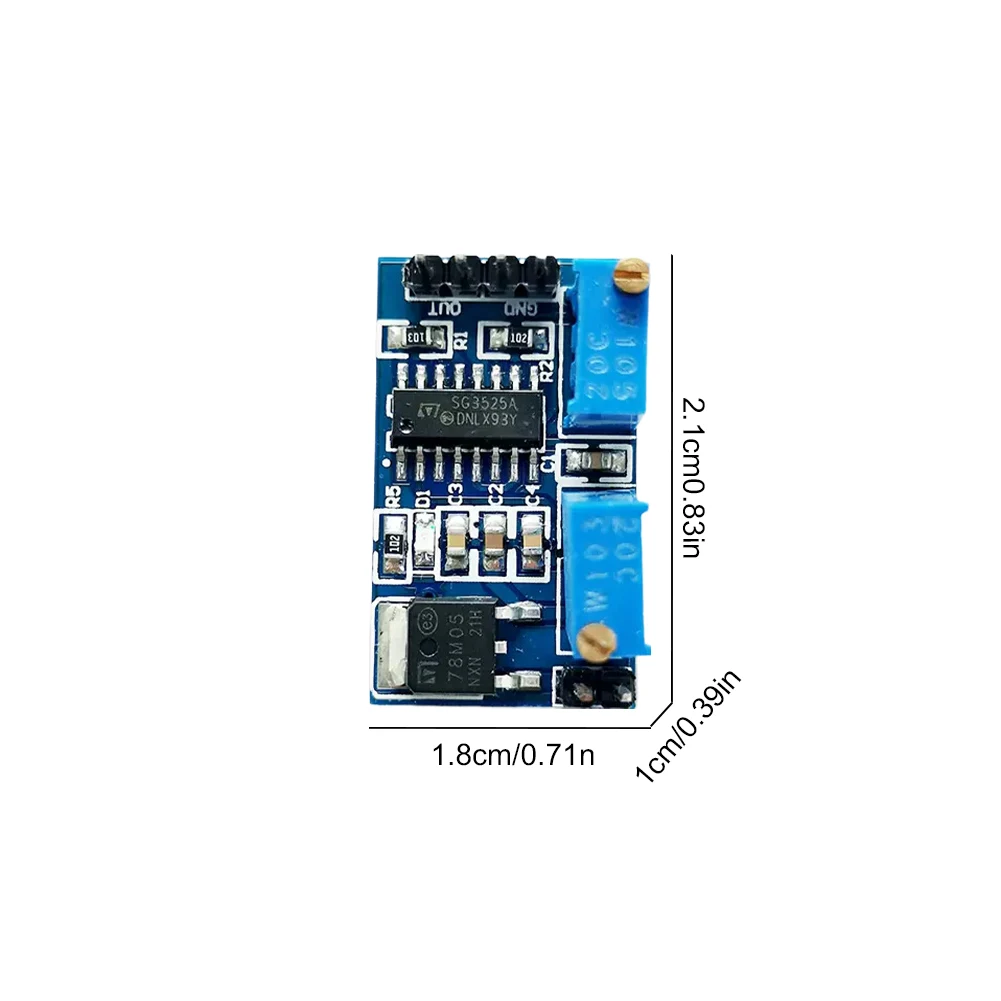

Product size: 21.00x18.00x10.00mm/0.83x0.71x0.39inch
