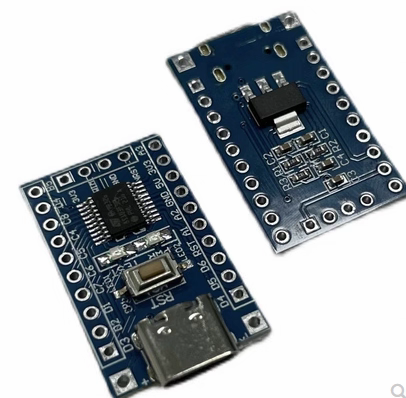

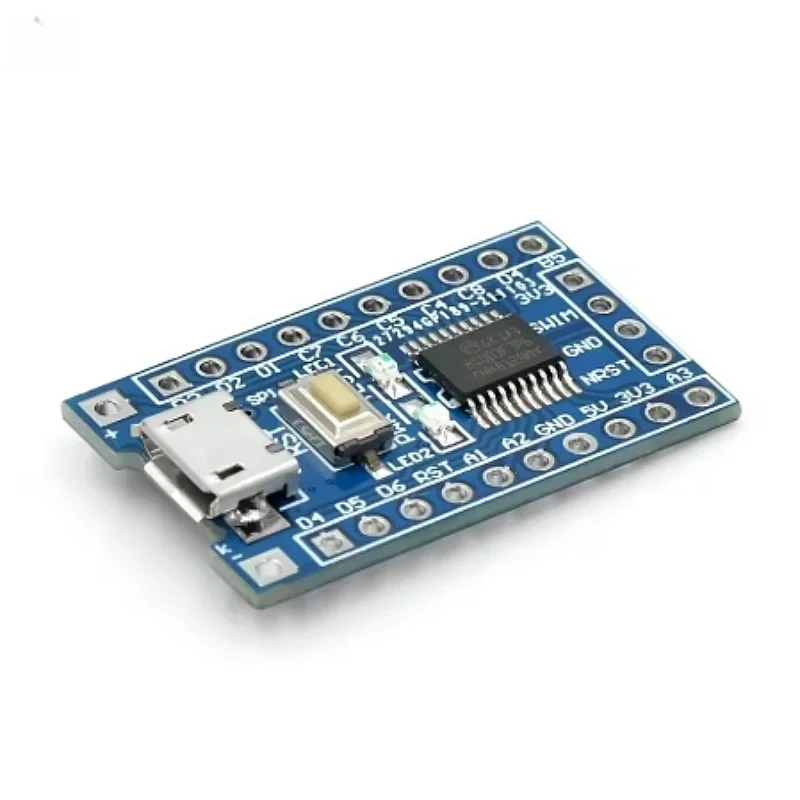

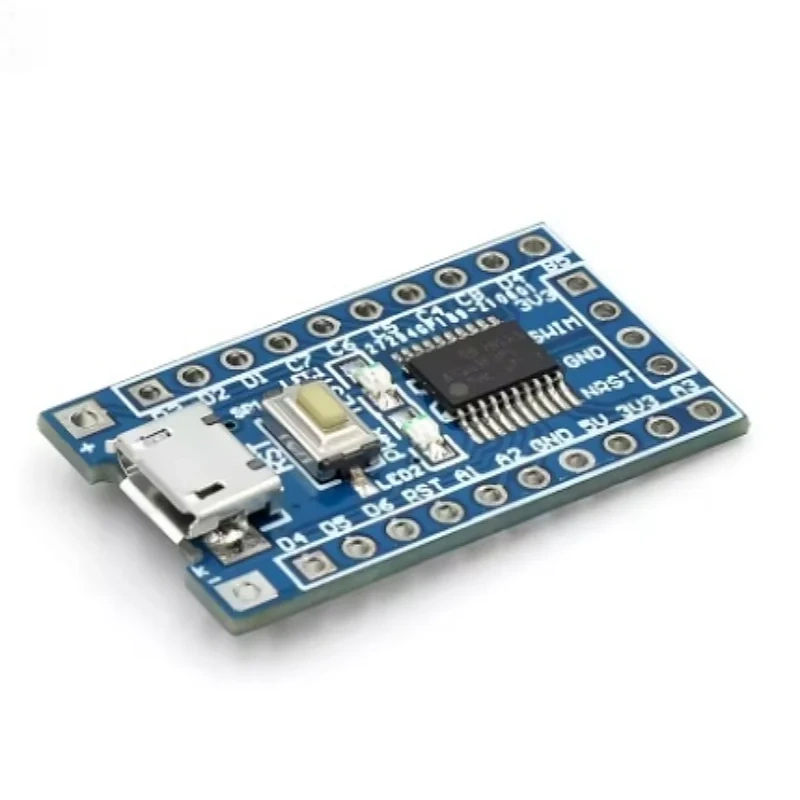

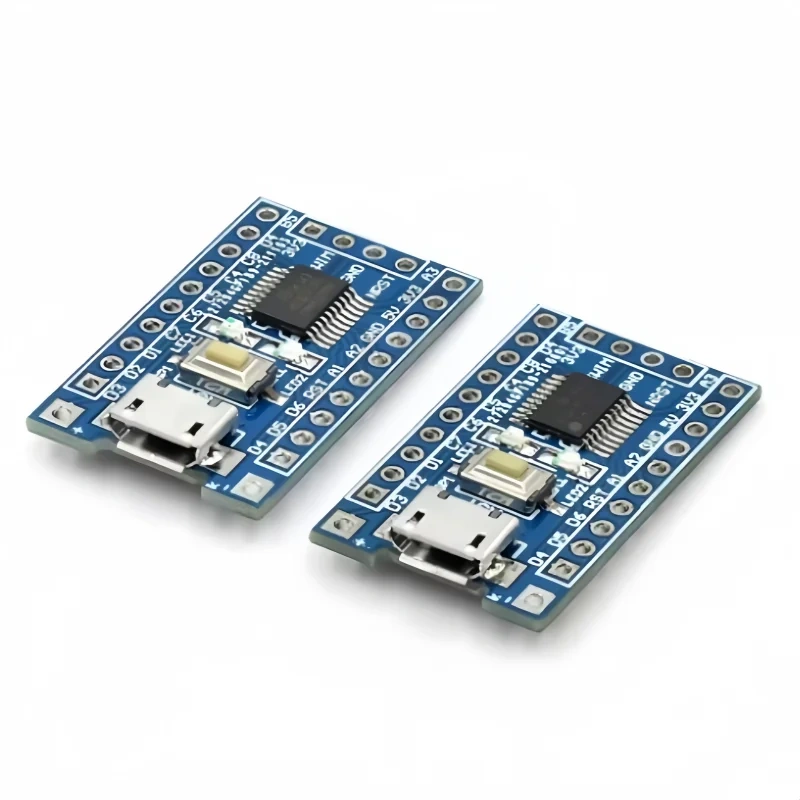

STM8S core boardHighlights:
The development board usedMIcroUSBLine to take power, Compatible with the smart phone data cable, the data cable is easy to get,And notUSBMINILine to take power,USBMINIlineBad to find, has been gradually eliminated, This is the module is different from other important characteristics of home products TheultraLow price, user-friendly design, a full set of information, so you save money, save time, effort, worry!
STM8S core board main features:
1. useSTM8S103F3P6As the masterICThe
2. Can be used on the board2.54Row dischargeOr the pad to take power, the use of pad to take power, the input voltage range4.5V-15V, Can also pass the pinOutput to the outside
3. 3VThenote:5VPinConnect to the module's input power supplyThe3. Leads all pins,This pin is marked next to the pinLabel, with a reset button, power indicator, and program demonstration lights, sparrows, although small and perfectly.
4. stand bySWIMDebug modeTheGeneral information:Http://pan.baidu.com/s/1bnGYLFT
STM8other information: Http://pan.baidu.com/s/1o6Jpox0
1. TheCore board schematic(PDFformat)And test the source program. Burned intotest program,After power onledThe light flashes,For youCheck whether the core board is working properly.
2. Provided separately atIARandSTVDTwo development environmentsRegister operationwithLibrary function operationofTwoSet of matchingI / OPort routines, timer routiSTM8Applications
3. STM8Applications
4. STM8Encapsulation library
5. STM8The register of each function module is programmed
6. IARDevelopment environment andSTVPProgramming software
