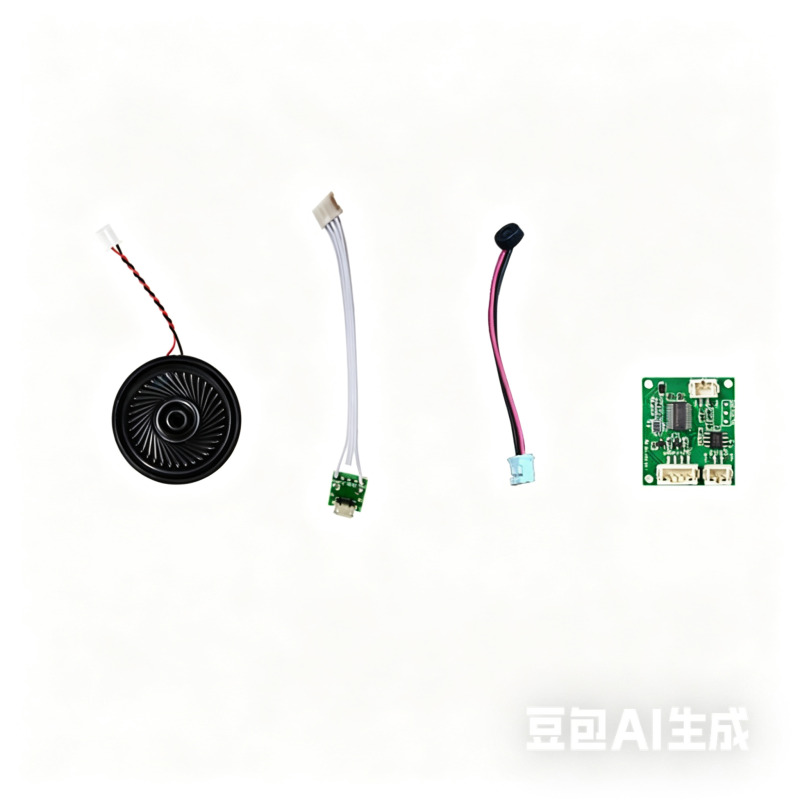

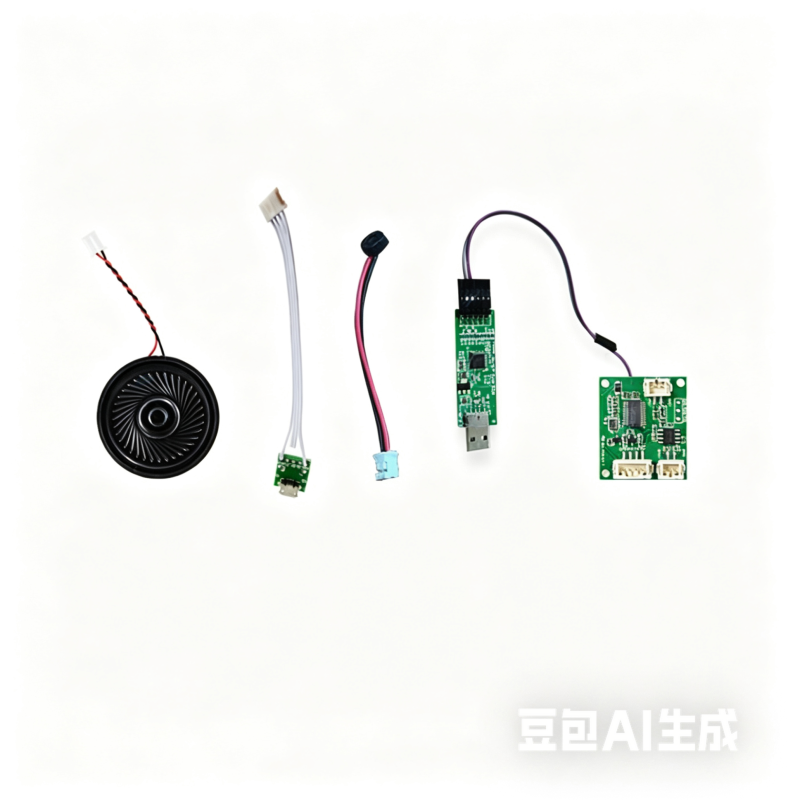

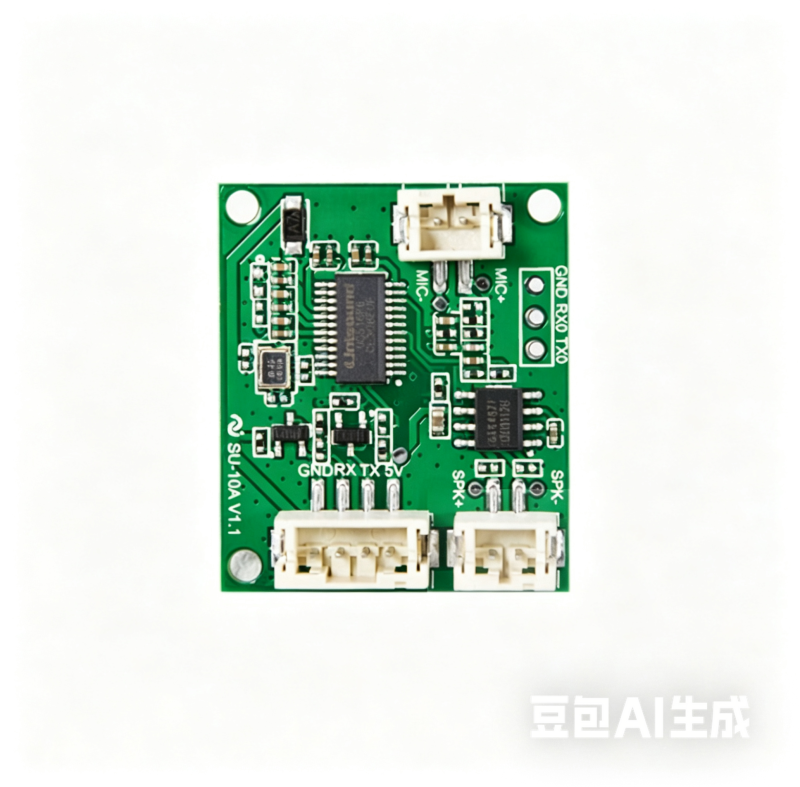

SU-10A Intelligent Offline Voice Control Module

Connection method:PH2.0mm pitch connector
Supported Interfaces:UART/MIC/SPEAKER
I/O port:8
Support speaker specifications:
VCC=5V,4Ω load,it provides up to 2.9W output power
VCC=5V,8Ω load,it provides up to 1.8W output power
Average working current:60mA
Power supply voltage: 3.6V-5.5V
Supply current:200mA
Work temperature:-20℃~85℃
Work humidity:5%~95%RH
Size:32.5*28*8(±0.2)mm
