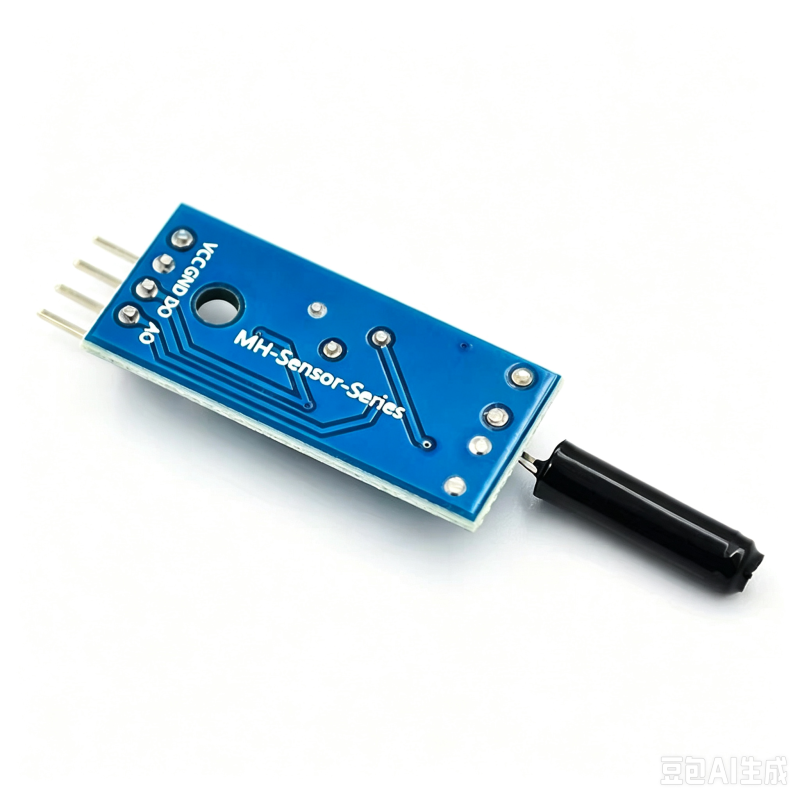

Module features:
1. The high-sensitivity vibration switch produced by our company is adopted, and the SW-18010P vibration sensor is used by default.2. Comparator output, clean signal, good waveform, strong driving ability, more than 15mA3. Working voltage 3.3V-5V4. Output form: digital switch output (0 and 1)5. With fixing bolt holes for easy installation6. Small board PCB size: 3.2cm x 1.4cm7. Use wide voltage LM393 comparatorModule wiring instructions:1.VCC: Connect to the positive pole of the power supply2.GND: Connect to the negative pole of the power supply3.DO: digital signal output4.AO: This function is invalid with this vibration sensorModule instructions:1. When the product does not vibrate, the vibration switch is off, the output end outputs a high level, and the green indicator light does not light;2. When the product vibrates, the vibration switch is turned on instantaneously, the output end outputs a low level, and the green indicator light is on;3. The output terminal can be directly connected to the single-chip microcomputer, and the high- and low-level can be detected by the single-chip microcomputer, thereby detecting whether there is vibration in the environment and playing an alarm roleSW-18010P High Sensitive Vibration Sensor
