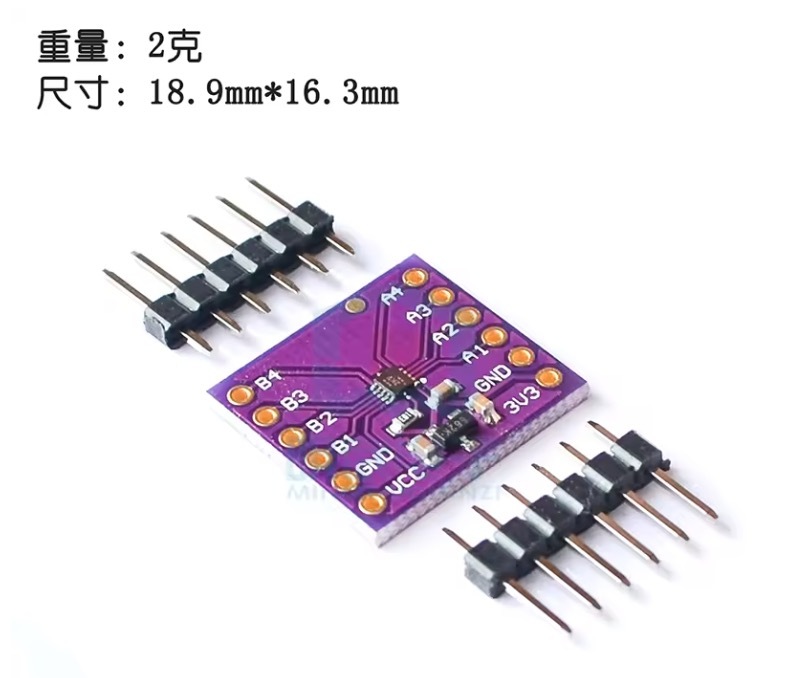

TXB0104 WCMCU-401 4-Bit Voltage Level Converter Module

1.2-V to 3.6-V on A Port and 1.65-V to 5.5-V
on B Port (VCCA ≤ VCCB)
VCC Isolation Feature: If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State
Output Enable (OE) Input Circuit Referenced to VCCA
Low Power Consumption, 5-μA Maximum ICC
I OFF Supports Partial Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 * A Port: * 2500-V Human-Body Model (A114-B)
1500-V Charged-Device Model (C101)
B Port: * ±15-kV Human-Body Model (A114-B)
1500-V Charged-Device Model (C101)
