Description
This fully enclosed UDA1334A I2S stereo DAC output is perfect for any I2S-output audio interface.
Logic levels from 3.3V - 5V (a rarity), and can process multiple different formats by setting two pins high or low. The DAC will process data immediately and give you a clear analog stereo line level output.

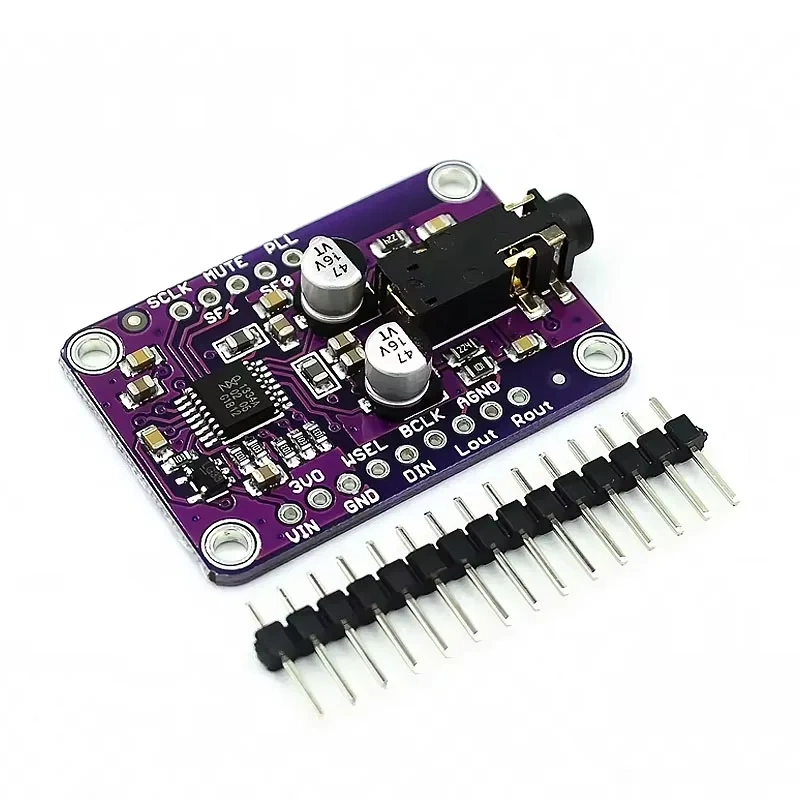

UDA1334A DAC Module CJMCU-1334 UDA1334A I2S DAC Audio Stereo Decoder Module Board For Arduino 3.3V-5V
Feature:
This fully-featured UDA1334A I2S Stereo DAC breakout is a perfect match for any I2S-output audio interface. 3.3V - 5V logic levels (a rarity), and can process multiple different formats by setting two pins to high or low. The DAC will process data immediately, and give you a clear, analog, stereo line level output. It's even cool with MCLK-less I2S interfaces such as the Raspberry Pi (which it's ideal for)-a built in PLL will generate the proper clock from the incoming signal. For inputs, you can use classic I2S (the default) or 16-bit, 20-bit or 24-bit left justified data. You can set it up to take an input system/master clock but we default-set it to just generate it for you, so you only need to connect Data In, Word Select (Left/Right Clock) and Bit Clock lines. If you want, there's a mute pin and a deemphasis filter you can turn on
