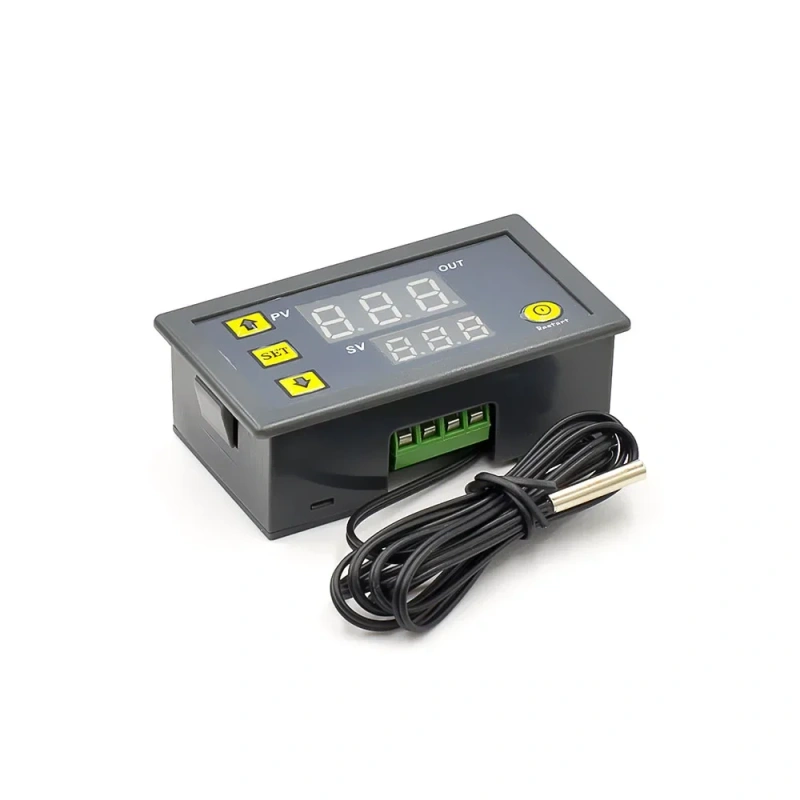

W3230 Digital Temperature Controller

Temperature control range: -50~120°C
Resolution: -9.9~99.9 at 0.1 °C, other temperature range 1 °C
Temperature measurement accuracy: 0.1 °C
Control accuracy: 0.1 °C
Hysteresis accuracy: 0.1 °C
Refresh rate: 0.5 S
Input power: DC 24 V, 220 V(optional)

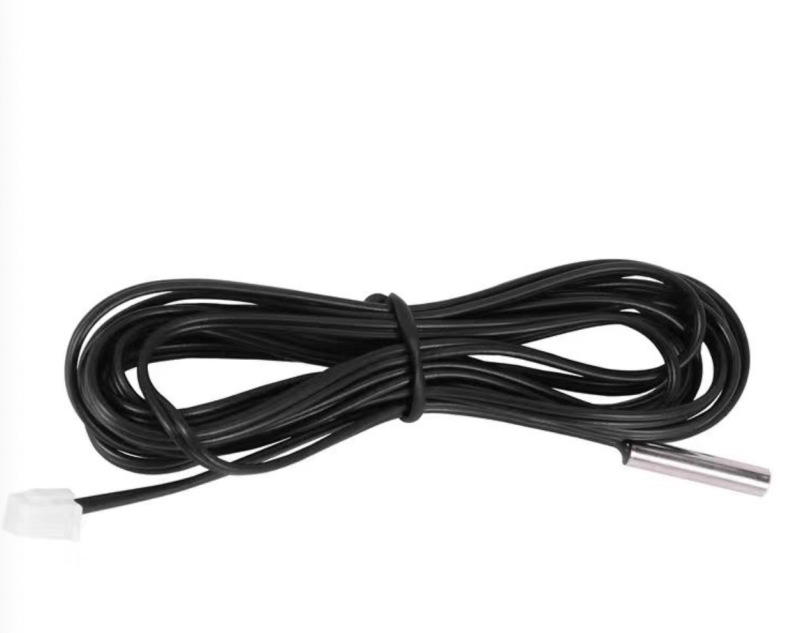

Measurement input: 1m NTC (10K 0.5%) waterproof sensor
Output: 1 relay output, 10A
Environmental requirements: -10~60°C, humidity 20%-75%
Dimension:79mm *43mm*26mm
Cutting Size:76mm*39mm
