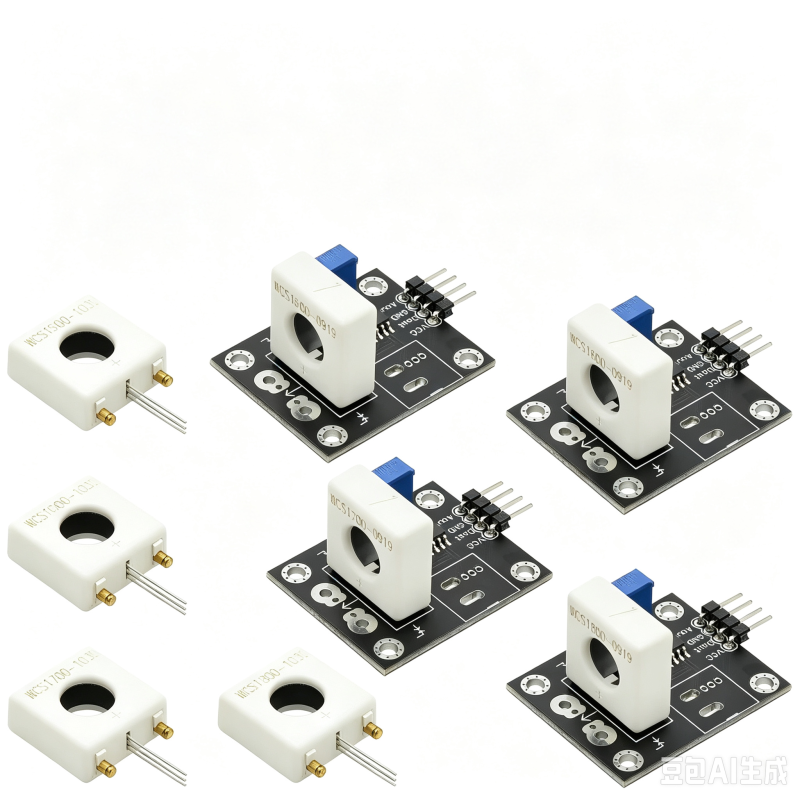

WCS1700/1800/1600/1500 Hall Current Sensor Overcurrent Protection Module

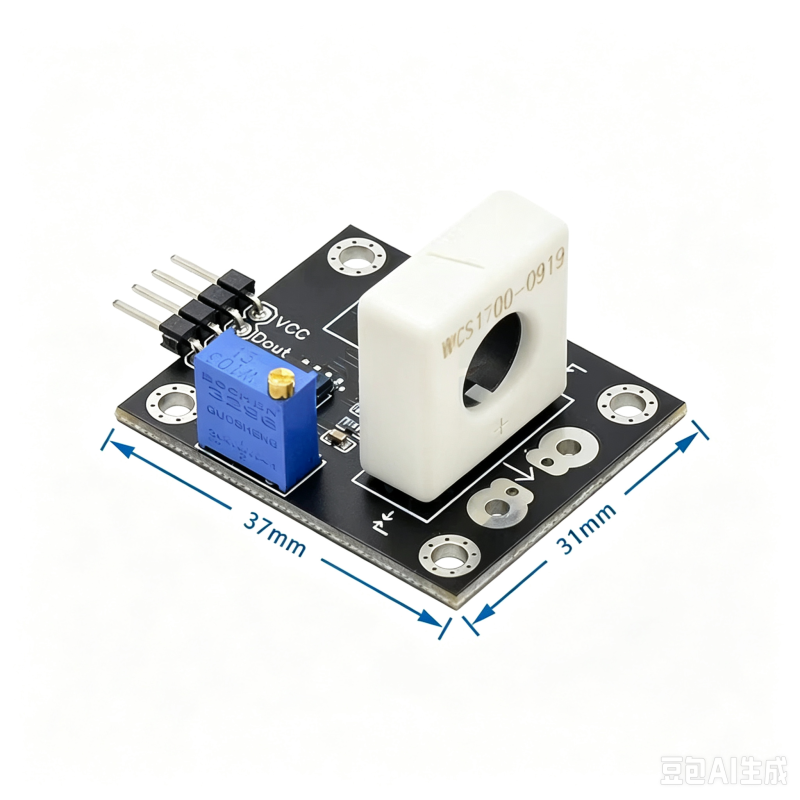

Size: long 37mm* wide 31mm*high 16.5mm

Main chip: LM393 amplifier, WCS1700

Working voltage: DC 5V

Power current:3.5mA
Working temperature:-20℃~125℃
Isolation voltage:1.5KV

Eight characteristics:
1 signal output instructions;
2 the current detection range of 70A + AC:50A + DC;
3 the current detection resolution 32mV/A;
4 the output of the flow signal;
5 the flow signal is set to adjust the critical point, set the resolution of 3A;
6 with the installation hole, to facilitate the installation of the firmware;
7 sampling current conversion analog signal output, can be connected to the ADC, TTL level signal output, can be connected to the micro controller IO port control.
8 the output signal is: analog signal and level signal.
