Specification:
Model: WH7016C
Display font: red
Resolution: 0.1℃
Data retention: yes
Power consumption: <2W
Accuracy: ±1°C (-50 - 70°C)
Sensor Type: NTC (10K/3435)
Relay contact current: rated 5A
Operating temperature: 0-50°C
Storage temperature: -10 - 60°C
Power supply: DC 12V 24V AC 220V
Control temperature range: -50~110℃
Temperature measurement difference: ±0.5°C
Temperature measurement range: -50°C~110°C
Size: 78×71×29mm (L*W*H), probe cable length: 1m; probe size: φ4mm*20mm
Features:
1. Delay protection function.
2. Temperature calibration function.
3. Wide temperature measurement range.
4. High performance and durable housing.
5. Factory parameter lock function after short circuit.
6. Has a large and clear LCD display for better readability.
7. Heating and cooling cannot be done at the same time.
8. The upper and lower limits of the temperature can be set.
9. Can be used in domestic refrigerators, water tanks, refrigerators, industrial chillers, boliers, steamers, industrial equipment and other temperature control systems, equipped with temperature sensor probes.
Notice:
Due to lighting effects, monitor brightness/contrast settings, etc., there may be some slight differences in the color tone between the picture and the actual project!
Package Included:

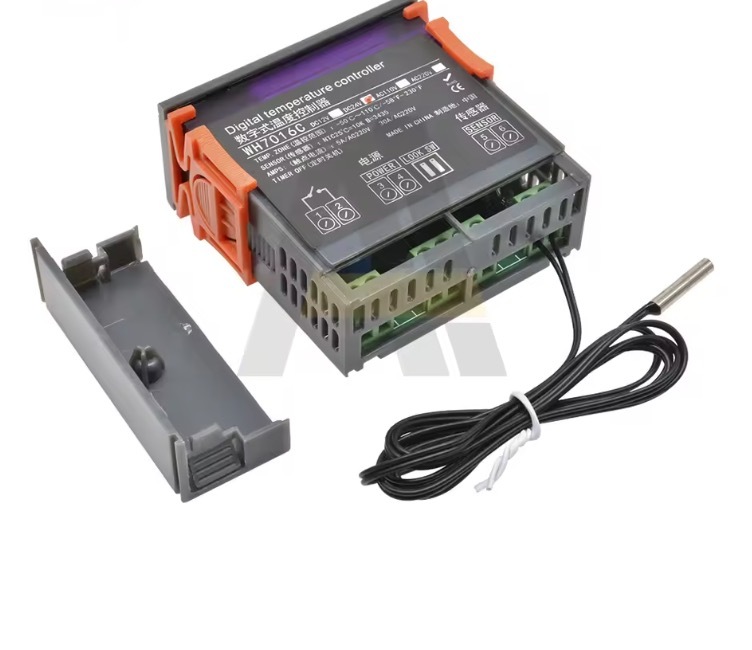

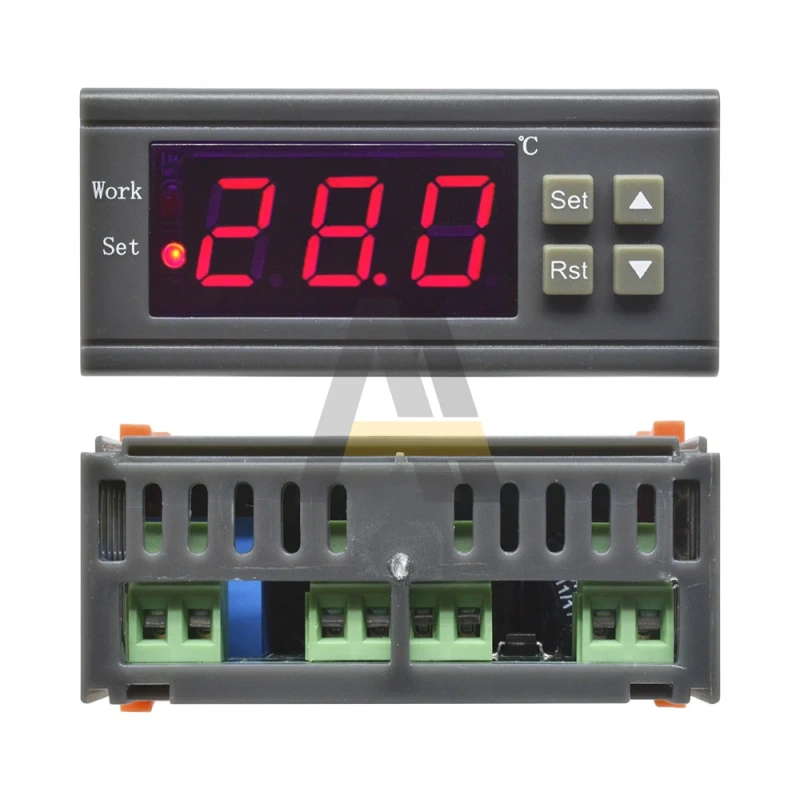

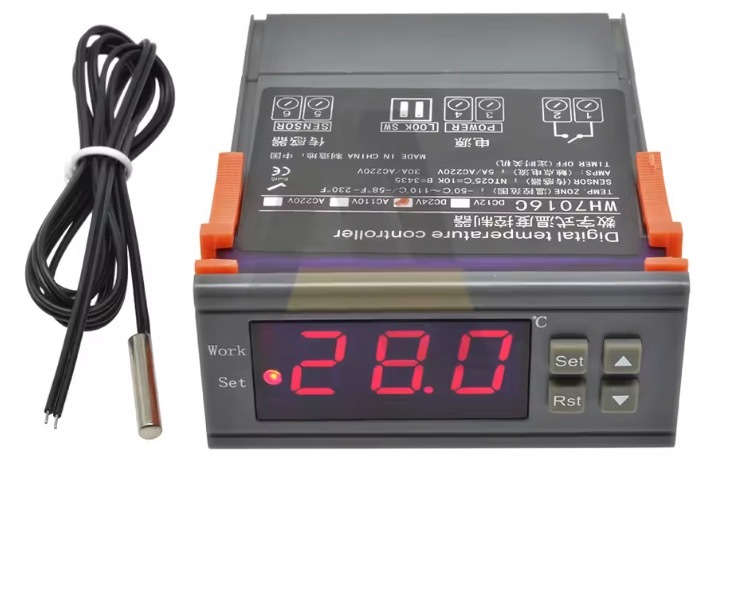

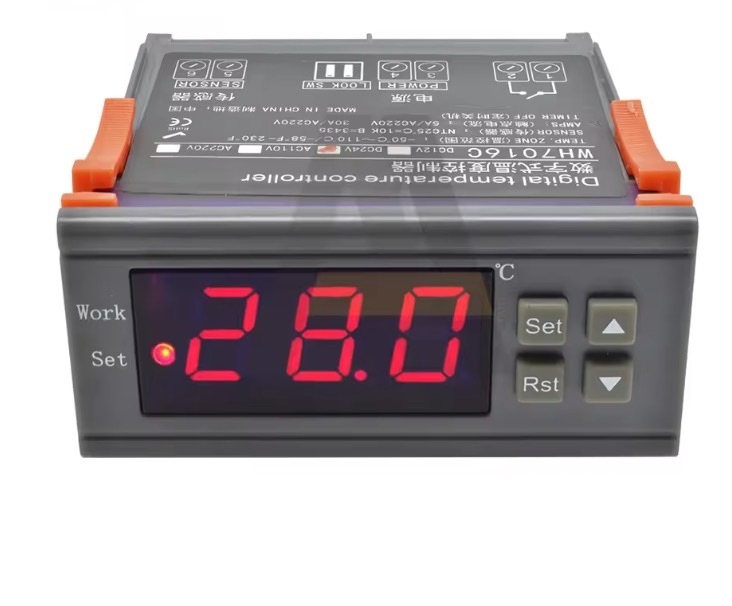

1 x Digital Thermostat Thermostat WH7016C
