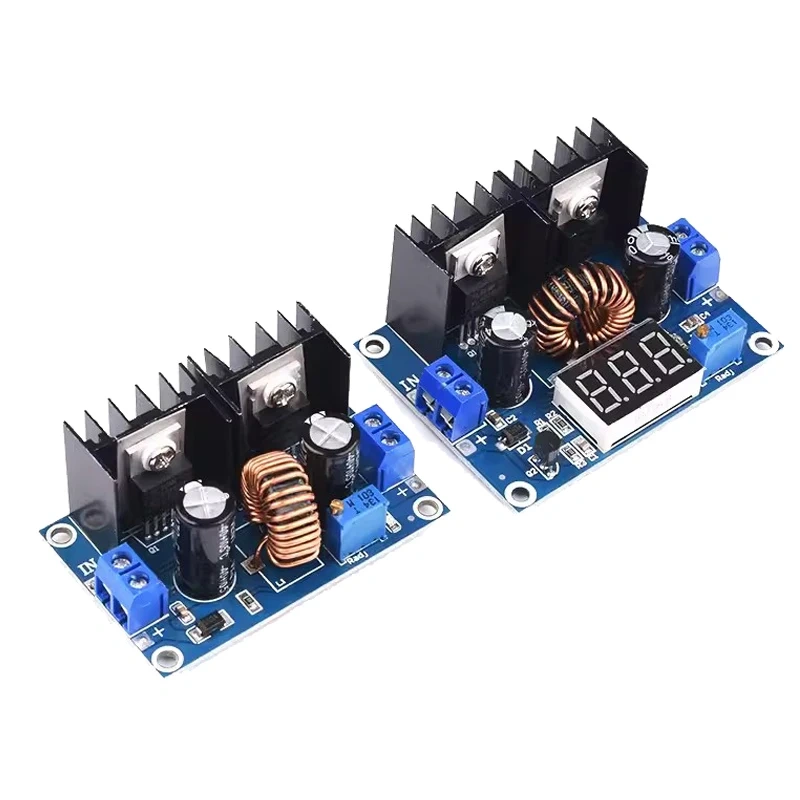

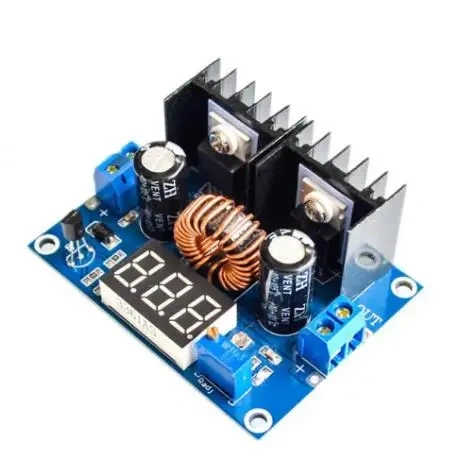

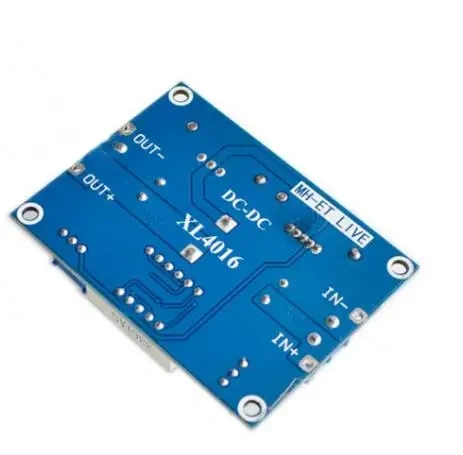

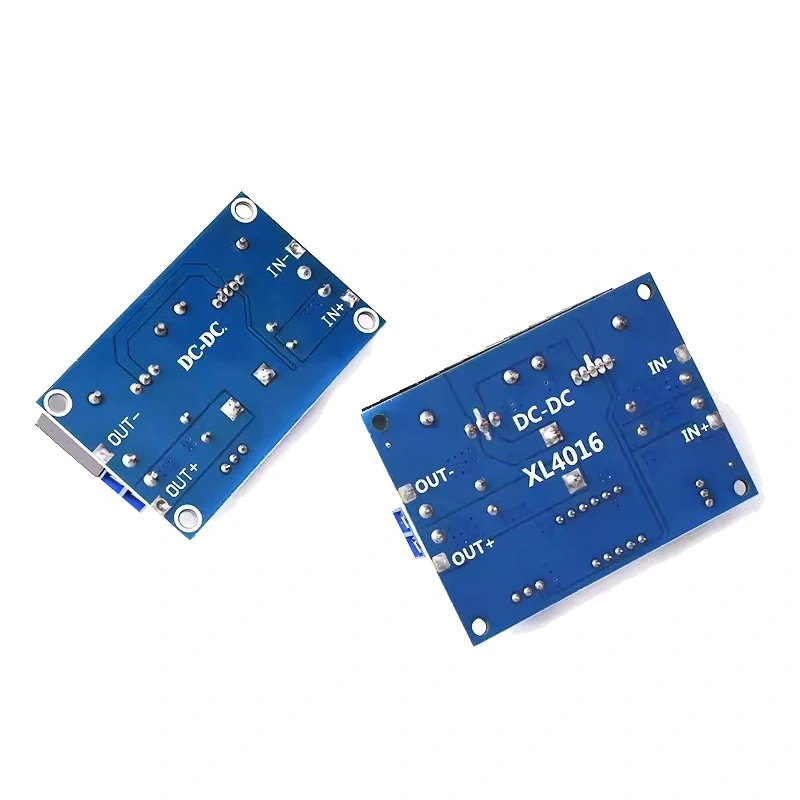

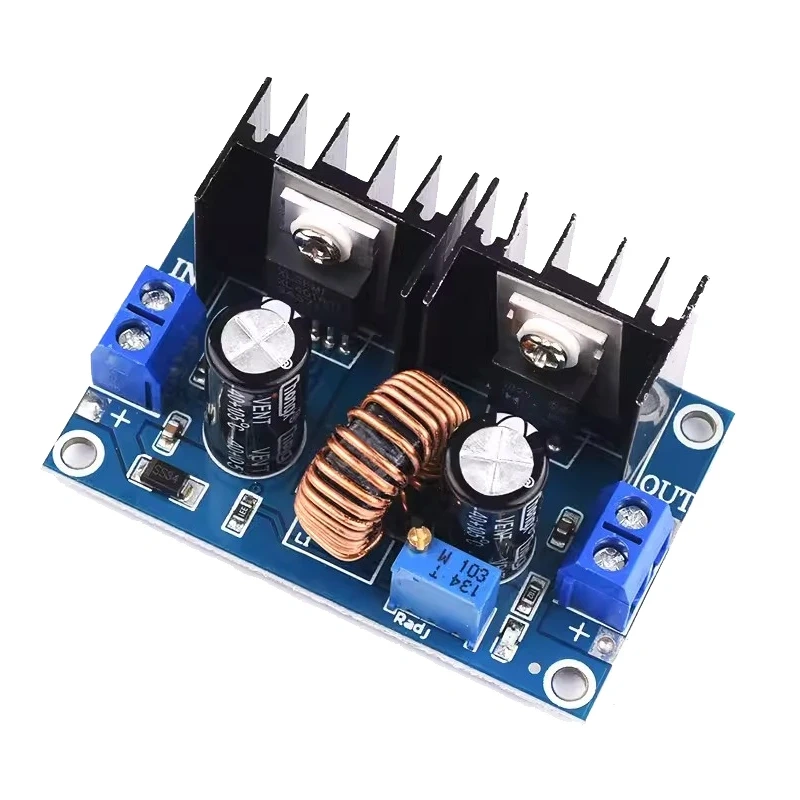

XL4016E1 XH-M404 DC Step-Down Voltage Regulator Module 4-40V 8A Digital PWM

Specification:

1. The input voltage range of 4-40V, the output voltage range of 1.25-36V.
2. The digital display is the output voltage.

3. Adjust the potentiometer knob: clockwise to adjust the output voltage is increased; counter-clockwise, the output voltage is reduced; after re-regulate the voltage connected load and prevent damage to the load.

4. more than 5A current, please enhance heat dissipation.

5. The low voltage display precision 0.01V, high-voltage display accuracy 0.1V

Product Name: DC voltage regulator module.

Product Type: XH-M404.

Voltage mode: PWM modulation.

Input voltage: DC4-40V.

Output voltage: DC1.25 ~ 36V.

Maximum current: 8A (long work proposals 5A).

Maximum power: 200W.

Conversion efficiency: 94%.

Switching Frequency: 180KHz.

Protection: short circuit protection, input reverse polarity protection, over-temperature protection (over temperature cut off the output).
