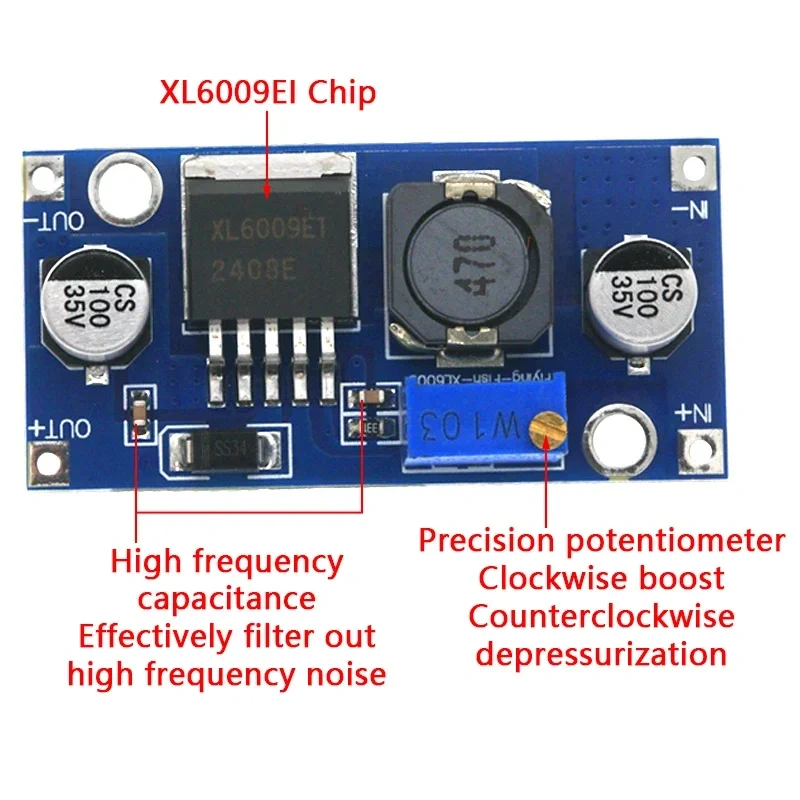

Name: XL6009 DC-DC boost module, adjustable power output, and LM2577 voltage regulator module
Brand: MY SHOP
SKU: ELZ1086
Price: 0.36 USD
Availability: InStock

SKU: ELZ1086

0.0 (0)

0 Sold

$0.36

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Module Properties: Non- isolated boost (BOOST)
Rectification: Non- Synchronous Rectification
Output Range:5V-35V
Input Range:3V- 32V
Input Current:3A ( max ),no-load 18mA (5V input , 8V output, no-load is less than 18mA. Higher the voltage , the greater the load current . )
Conversion efficiency:<94% ( greater the pressure, the lower the efficiency)
Switching frequency:400KHz
Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )
Voltage Regulation:± 0.5%
Load Regulation:± 0.5%
Operating Temperature:-40 -+85

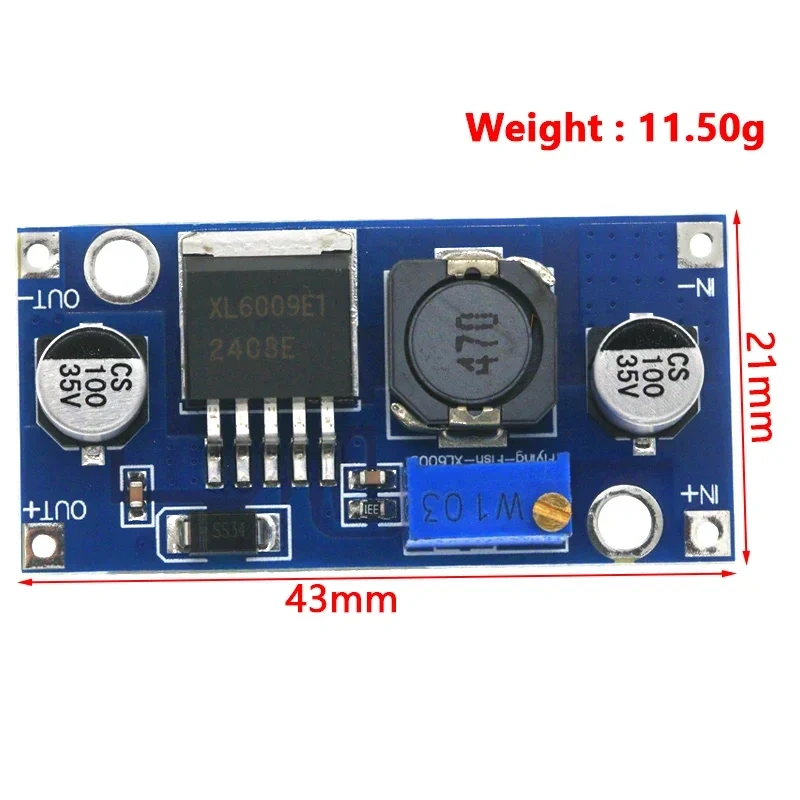

Dimensions:43mm * 21mm * 14mm ( L * W * H )
