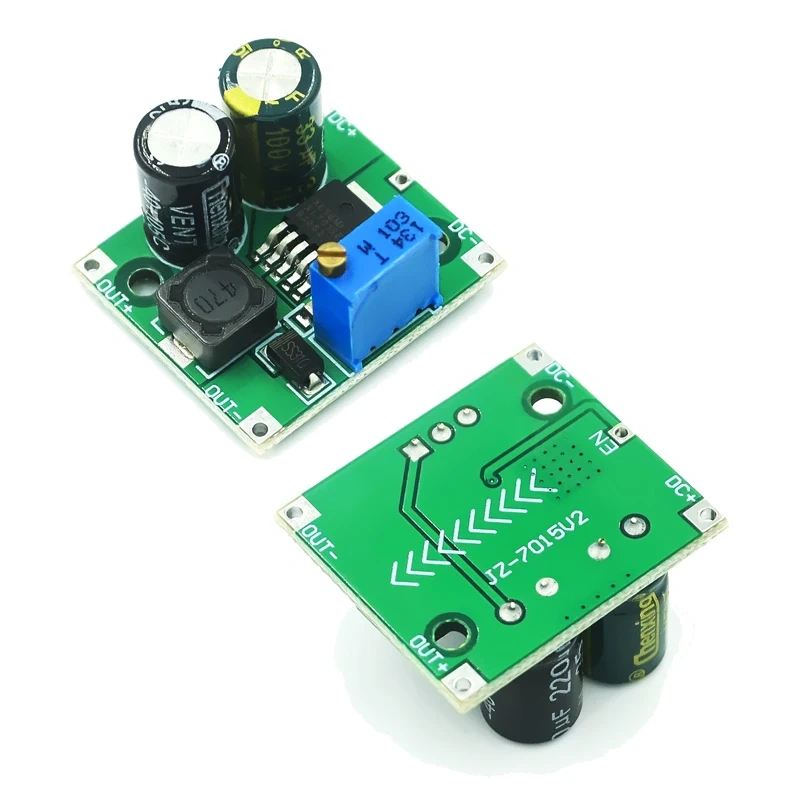

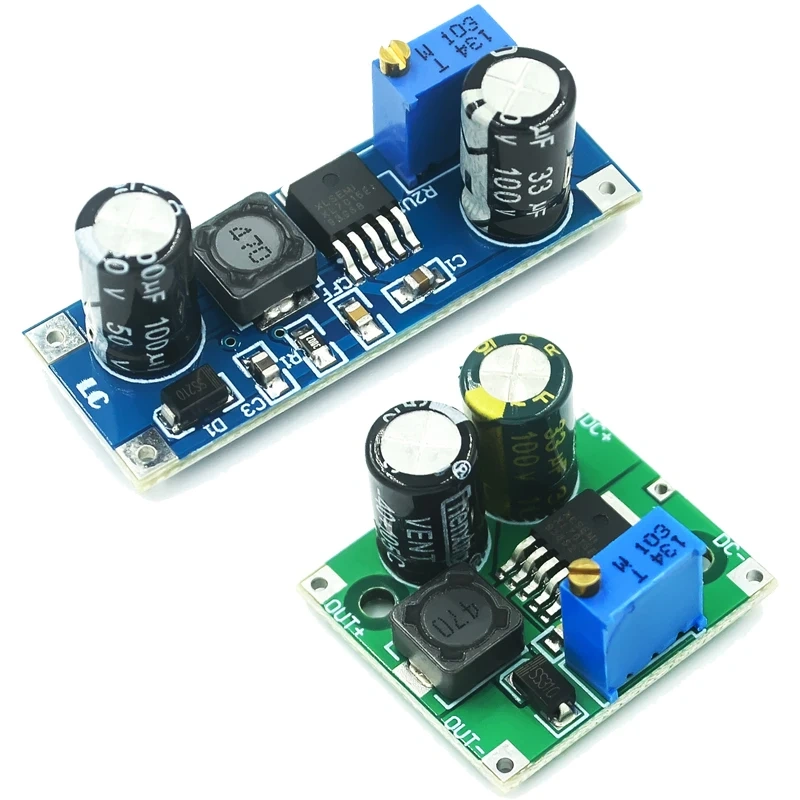

XL7015 DC-DC Dc converter Step-down module 5V-80V Wide voltage input 7005A LM2596

Description

1. 5 v to 80 v input voltage range wide;

2. The output voltage from 5 v to 20 v adjustable;

3. The minimum pressure drop 1 v.

4. 0.8 A biggest switch current;

5. Recommend the output power is less than 7 w;

6. Shut off built-in overheating protection, output short circuit protection, over current protection;

7. Good linear with load regulation;

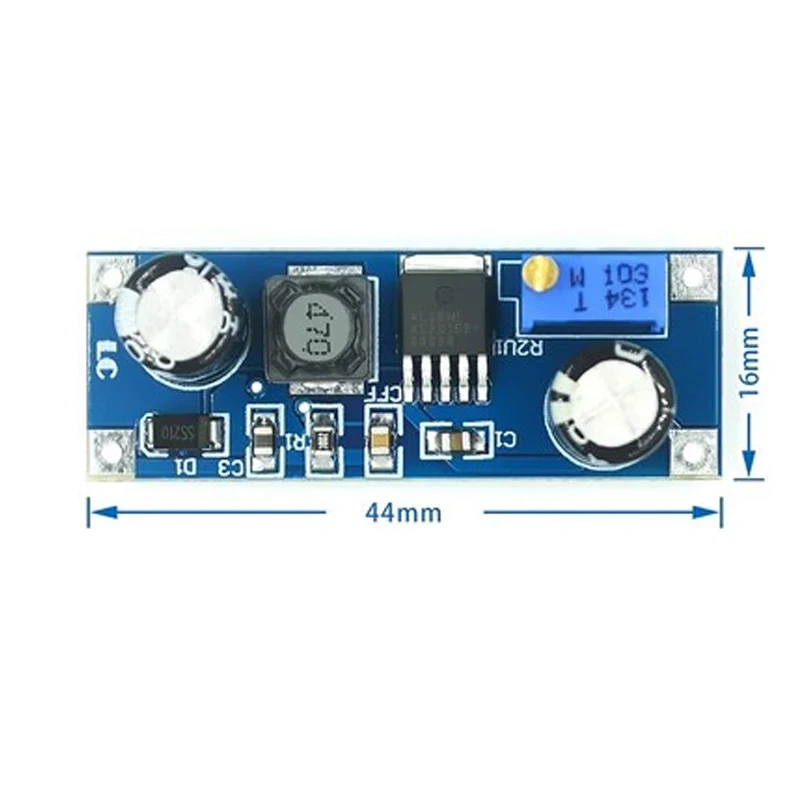

The board size: 16 mm * 44 mm;

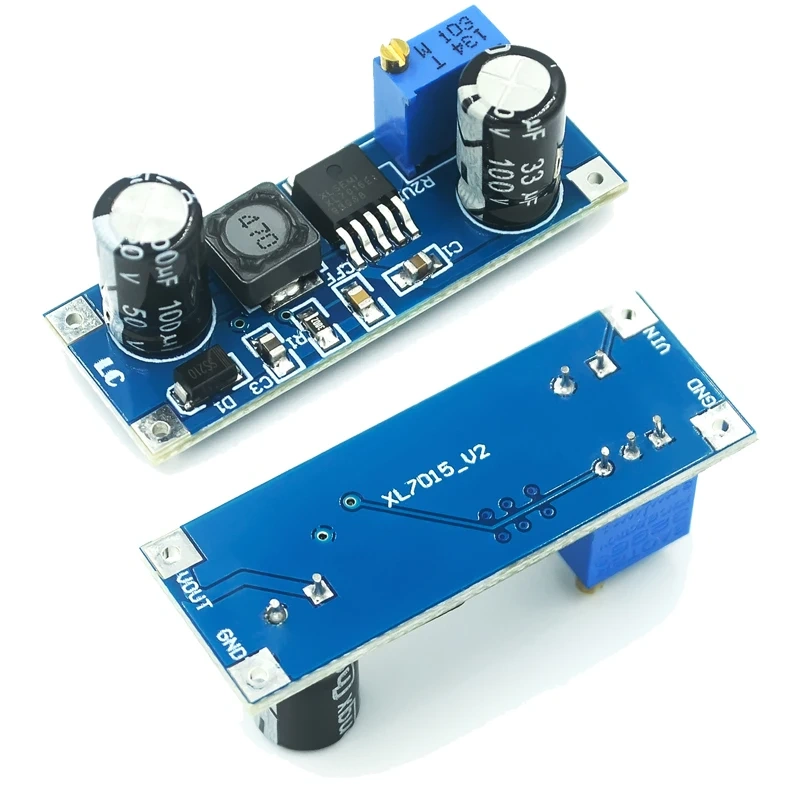

Wiring instructions
1. VIN: input voltage (5 v - 80 - v);

2. The GND: input voltage side;

3. The VOUT: output voltage (5 v - 20 v);

4. The GND: output voltage to end;
