Description
Product Parameters:
1: Working voltage:6-30V, supporting micro USB 5.0V power supply
2: Trigger signal sources:high-level trigger (3.0V~24V), low-level trigger (0.0V~0.2V), switch quantity control (passive switch).
3: Output capacity:can control equipment within 30V DC 5A or 220V AC 5A
4. Static current:15mA
5. Working current:50mA
6. Service life:greater than 100000 times
7. Working temperature:-40-85 ℃

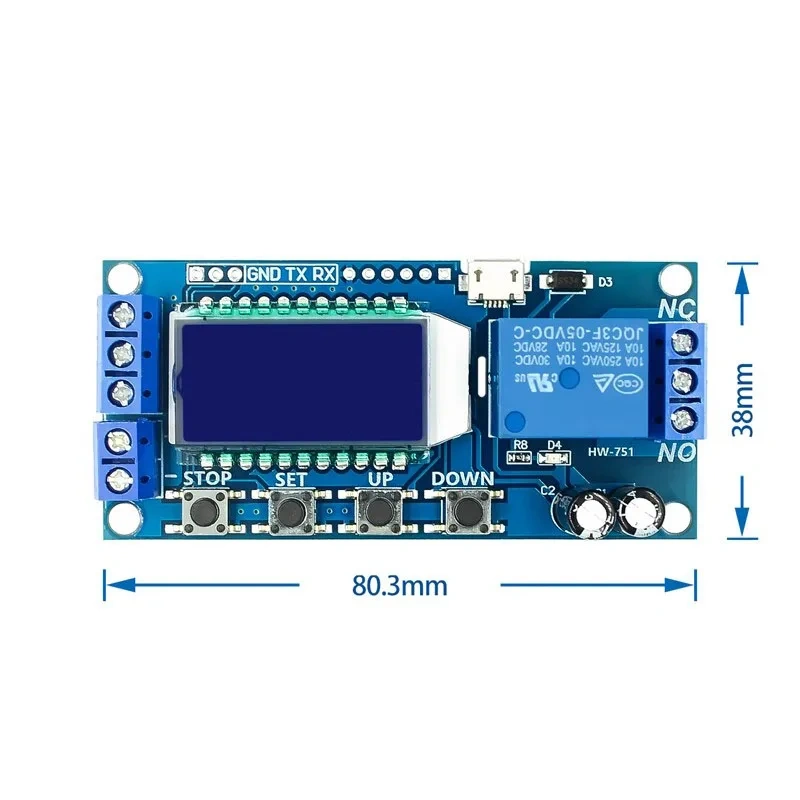

8. Size:8.0*3.8*1.9cm
9. Equipped with optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters for permanent memory after power outage
Module Features:
1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical
2. Supports high and low level triggering, switch quantity control, suitable for most occasions
3. Wide voltage power supply (6-30V) supports micro USB 5.0V power supply, making it very convenient to use
4. Support UART data upload and parameter settings
5. It has a one button emergency stop function (STOP key) with reverse connection protection, and reverse connection does not burn
6. Added sleep mode, which automatically turns off the LCD backlight without any operation within 5 minutes after enabling it; Wake up with any button
7. Different OP, CL, and LOP parameters can be set, which are independent of each other and saved separately
8. Automatic power-off saving of all set parameters
